Kingservo KSDG Series Manual

Ac servo motorksma
Hide thumbs
Table of Contents

Advertisement

Quick Links

Kingservo
Manual
AC Servo MotorKSMA
Servo Driver KSDG Series
rd
20081014(3
Version)
汪生：135 1038 2344
QQ： 9795 220 98
东莞市京伺自动化设备有限公司
网址：www.kingservo.com
地址：东莞市长安沙头振安中路272号

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSDG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingservo KSDG Series

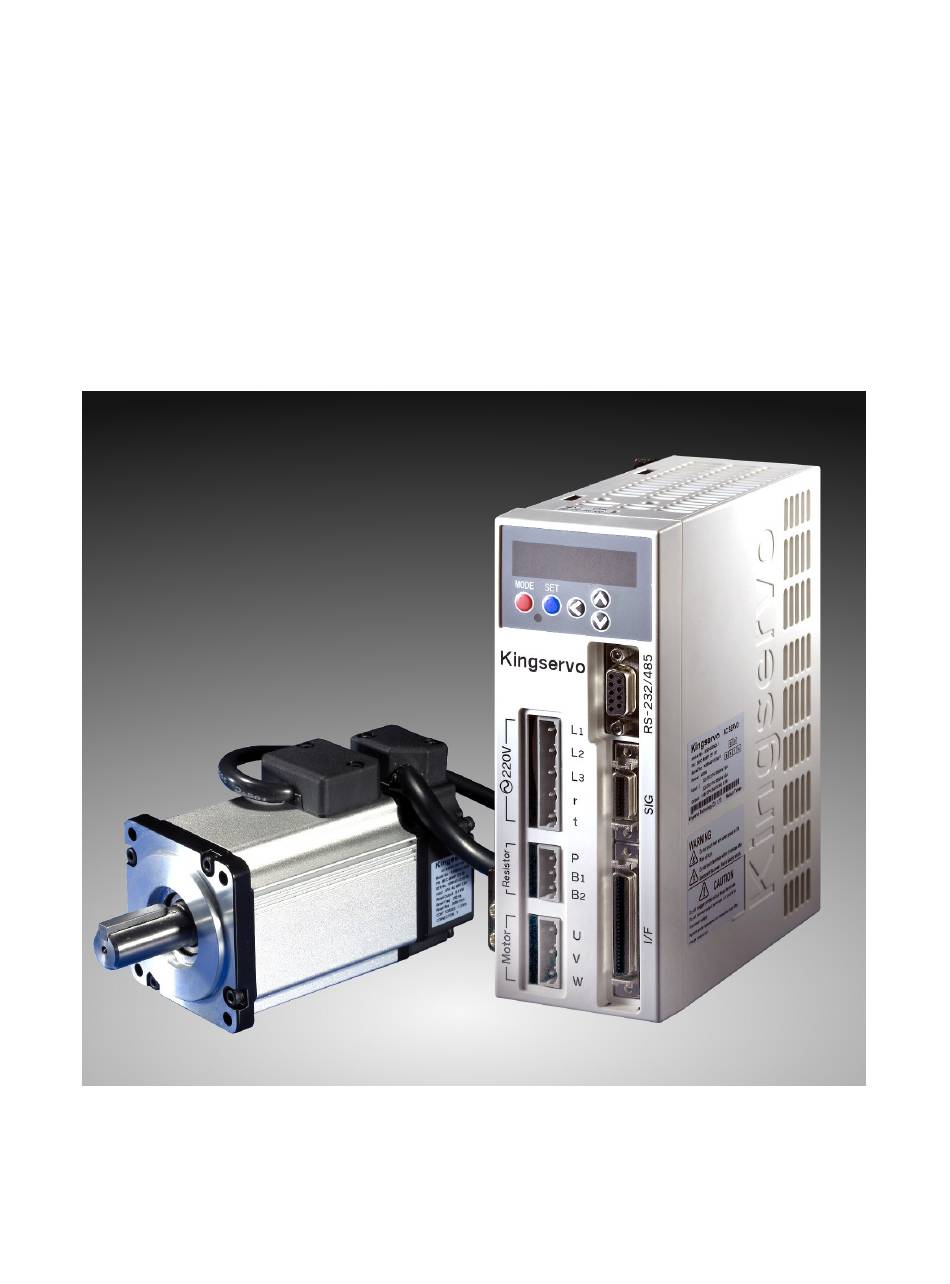

  • Page 1 Kingservo Manual AC Servo MotorKSMA Servo Driver KSDG Series 20081014(3 Version) 汪生：135 1038 2344 QQ： 9795 220 98 东莞市京伺自动化设备有限公司 网址：www.kingservo.com 地址：东莞市长安沙头振安中路272号...
