Summary of Contents for Pro Lite Marquee-Lite Plus 4025

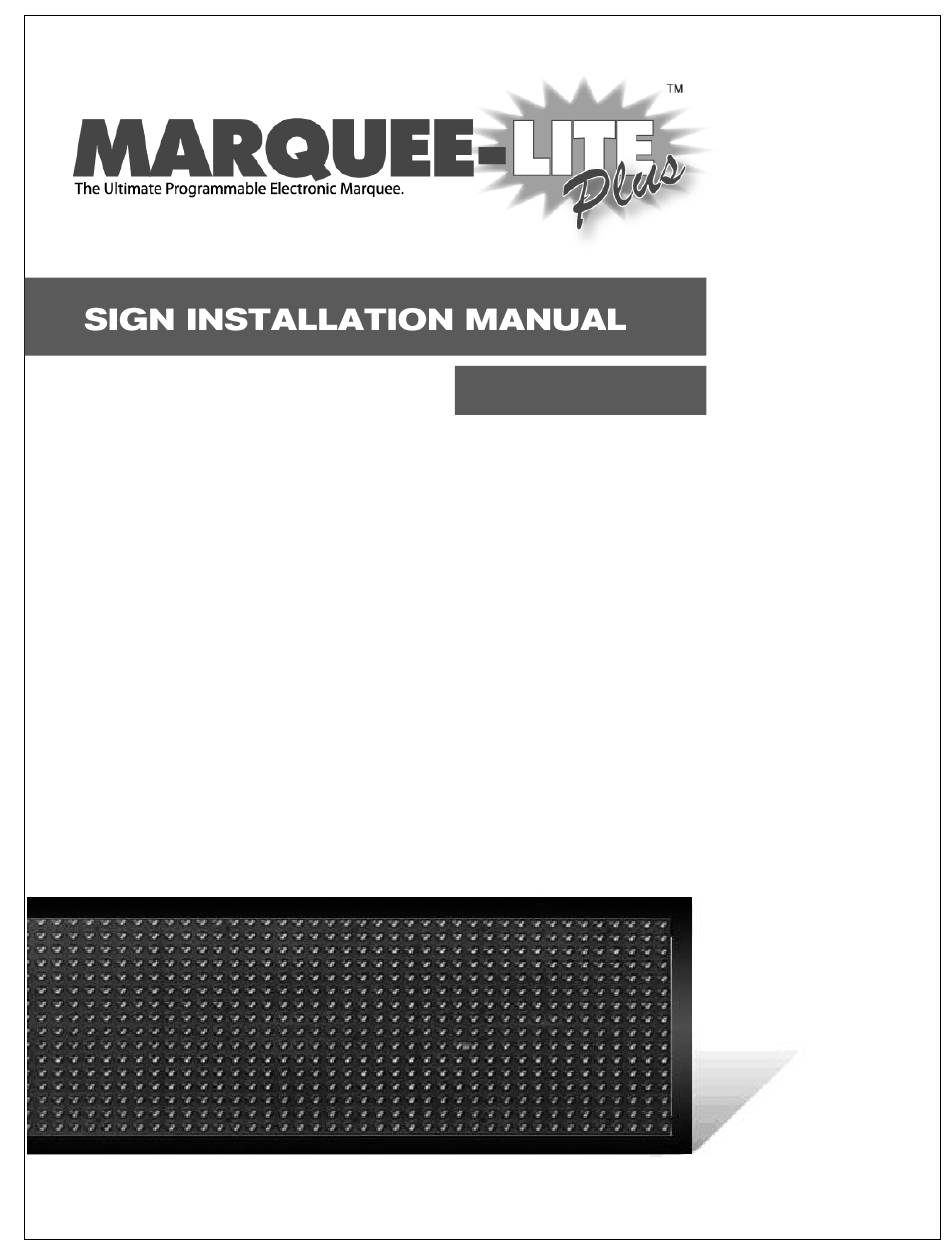

  • Page 1 Model: 4025...
  • Page 2 CONGRATULATIONS The Marquee-Lite PLUS is the finest retrofit messaging center available on the market ™ today. The Marquee-Lite Plus (ML+) is designed for ease of use, ease of installation, and ™ years of trouble free service. CABINET INSTALLATION These displays are designed to fit into an 8 foot cabinet. In some cases you may install the unit(s) in a larger cabinet, but suitable filler panels will need to be fabricated.
  • Page 3 PACKING LIST …………………………………………………………………………………………………… 4 - 5 SIGN CONFIGURATION ………………………………………………………………………………………. 6 - 7 SIGN COMMUNICATION OPTIONS ………………………………………………………………………. 8 SIGN COMMUNICATION …………………………………………………………………………………….. 9 - 12 TEMPERATURE SENSOR INSTALLATION …………………………………………………………….. 13 AC POWER CONNECTION ………………………………………………………………………………….. 14 CUSTOMER SERVICE ………………………………………………………………………………………… 15...
  • Page 4 SIGN Data Cable (1 per sign) Temperature Sensor Case Installation Manual / Software Manual Wireless Transmitter Kit REFER TO NEXT PAGE...
  • Page 5 There are 4 types of wireless kits. 350ft Range: 1000ft Range: • Version-A: VW320A • Version-A: VW321A • Version-B: VW320B • Version-B: VW321B The kit received will vary based on requested application or release version of product. Although the kits vary, there are no additional accessories required for the specific kit you received to achieve functionality.
  • Page 6 The ML+ is designed to operate as a single-sided unit (MASTER ONLY), or as a paired unit in a double-sided installation (MASTER/ SLAVE). Whether single-sided or double-sided, one unit will have to be configured as a MASTER. 1) Locate the MASTER INPUT and OUTPUT1 ports on the back, left side of the sign. MASTER ML+ (Backside) 2) Using the supplied Data Cable, connect as shown below.
  • Page 7 Now that you have an ML+ configured as a MASTER, let’s make a paired connection for a double-sided installation. Any ML+ unit can be configured as MASTER or a SLAVE. It is important to note that the MASTER will always be the primary signal carrier. 1) Now connect the remaining Data Cable as shown below.
  • Page 8 There are 2 options readily available to upload messages to the sign. Available options require use of the Marquee-Lite software. ML+ (Backside) USB Cable connection for USB Flash Drive. RS232 Cable connection for Wireless communication. Create your message, export to USB Drive, then manually connect the USB Drive to the sign and the sign will be instantly updated.
  • Page 9: Installation Notes

    Easily update the sign without leaving your desk! OVERVIEW Line-of-site communication The antenna of the Wireless Transceivers must be in line-of-site with one another for optimal reception. Recommended for optimal wireless communication. Wireless communication will not work. Installation Notes TRANSCEIVER Do not mount where it will be exposed to weather elements.
  • Page 10 COMPUTER SIDE SETUP 1) Copy and paste the link below to your web browser to securely download the transceiver driver for the computer: http://03be17e.netsolhost.com/DOWNLOADS/DRIVERS/CP210x_VCP_Win_XP_S2K3_Vista_7.zip Wireless driver also supports Windows 8 and 10. 2) Open the folder where the downloaded file has been saved to. The file name will be CP210x_VCP_Win_XP_S2K3_Vista_7.ZIP.
  • Page 11 8) Go to the Device Manager in your Control Panel. 9) Locate “Ports (COM and LPT)” and expand the tree to view the subcategories. 10) Write down the COM PORT number for the transceiver: _______________________ If the Wireless USB Transceiver is connected to a different USB port than the last time, the COM PORT number will change.
  • Page 12 Sign Side Setup On the back of the sign there is a serial cable with a 9 Pin Connector. Make the following connections to the Wireless COM Transceiver: (a) Connect the antenna. (b) Connect the power jack end of the power cable to the power port on the transceiver. (c) Now connect the red wire to and the black wire to on the sign’s DC power supply.
  • Page 13 The temperature sensor is located besides the USB and COM cables. MASTER ML+ (Backside) Temperature Sensor. In a MASTER/SLAVE Configuration, the temperature sensor on the MASTER unit will be the only temperature sensor that is required to be installed. The temperature sensor on the SLAVE unit can be tucked away.
  • Page 14 Review all previous connections to make sure they are correct and secure before applying power. Connect the outlet plug (included) to a 110VAC wall outlet or splice the plug and hard wire directly to a 110VAC power source using wire nuts (not included). AC Power Plug.
  • Page 15 TECHNICAL SUPPORT (available 24/7) http://www.pro-lite.com/support PARTS ONLY - LIMITED WARRANTY PRO-LITE INC. Warranty to the original consumer that each of its PRO-LITE products and all components therein contained will be free from for five years from the date of purchase except those items specified herein under. Any warranty hereunder is extended only to the original consumer purchaser and is not assignable.
