- Page 1 biosignal acquisition tool-kit for advanced research applications Temperature (TMP) Sensor User Manual...
- Page 2 The information contained in this document has been carefully checked and were made every effort to ensure its quality. PLUX reserves the right to make changes and improvements to this manual and products referenced at any time without notice.
-
Page 3: Table Of Contents
Temperature (TMP) User Manual TABLE OF CONTENTS General Information ......................4 1.1. General Description ......................4 1.2. Typical Unfiltered Sensor Output..................4 1.3. Sensor Specifications ......................5 1.4. Features ..........................5 1.5. Applications........................5 1.6. Transfer Function (Conversion Formula) ................5 1.7. -
Page 4: General Information

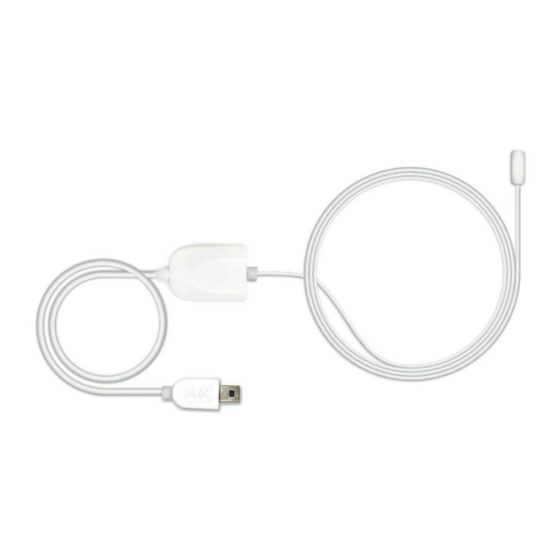

User Manual 1. General Information 1.1. General Description biosignalsplux Temperature (TMP) sensor is specifically developed for biosignal research applications where it can be used to measure corporal or ambient temperatures. The sensor produces an accurate analog output signal with short response times to temperature alterations. -
Page 5: Sensor Specifications
Temperature (TMP) User Manual 1.3. Sensor Specifications 15 ± 1 seconds > Range: 0°C −50°C > Response Time (Air): > Type: NTC thermistor > Element Diameter: 1.90 ± 0.01 mm 1.4. Features > Medical-grade PVC insulation > Unobtrusive & lightweight sensor >... -
Page 6: Physical Characteristics
Temperature (TMP) User Manual ������ Operating voltage (3V) −3 �� 1,12764514 × 10 −4 �� 2,34282709 × 10 −8 �� 8,77303013 × 10 Note that for the temperature calculation, ADC should be considered as: 17361, ���� ������ < 17361 ������ = { 50161, ����... -
Page 7: Using The Temperature (Tmp) Sensor With Biosignalsplux & Opensignals
Temperature (TMP) User Manual 2. Using the Temperature (TMP) Sensor with biosignalsplux & OpenSignals 2.1. Connecting the sensor to biosignalsplux Systems 2.1.1. biosignalsplux 4-Channel Hubs biosignalsplux TMP sensor is compatible with all 4 analog input channels of the 4-channel biosignalsplux hub, but incompatible with the reference/ground port. -
Page 8: Biosignalsplux Solo & Single-Channel Openban Devices
Temperature (TMP) User Manual 2.1.3. biosignalsplux Solo & Single-Channel openBAN Devices biosignalsplux TMP sensor is compatible with the analog input channel of the biosignalsplux Solo (openBAN) device. Connect the sensor to the analog input channel to use it with this device. Figure 6: Connect the TMP to the analog input channel of the biosignalsplux Solo (openBAN). - Page 9 Temperature (TMP) User Manual Select the device you intend to use for acquisition by clicking on ENABLE button on the device panel in the OpenSignals device manager. The device is activated for acquisition if the ENABLE button is blue. Figure 8: Enabling the device for acquisition. Click on the biosignalsplux logo to access the available settings.
- Page 10 Temperature (TMP) User Manual Figure 10: Start the acquisition whenever you’re ready. 10 of 16...
-
Page 11: Scientific Publications Using The Temperature Sensor
Temperature (TMP) User Manual 3. Scientific Publications Using the Temperature Sensor The following scientific is only a small selection extracted from the list of available publications using biosignalsplux. Please visit the following website to access the entire up-to-date list. biosignalsplux Publications List of Publications Publications J. -
Page 12: Safety & Maintenance
The user should use the sensor cables with extreme caution to avoid risk of strangulation. The user should keep a safe distance between the biosignalsplux device and other devices to ensure their proper functioning. The user should only send the device to repair to qualified PLUX personnel. 12 of 16... -
Page 13: Transportation And Storage
Temperature (TMP) User Manual The user should not immerse the sensors or the biosignalsplux device, nor clean with liquid or abrasives. The user should handle the biosignalsplux device with caution and not expose the device or accessories to high accelerations and vibrations. biosignalsplux devices should not be used in patients with implanted electronic devices of any kind, including pace-makers, electronic infusion pumps, stimulators, defibrillators or similar. -
Page 14: Ordering Guides, Regulatory & Legal Information
If PLUX receives notification of any such defects within the guarantee period, it will repair or substitute with the same unit/model, any products with proven defects at no cost to the client. During the repair period PLUX promises to provide a temporary replacement under the same specification. -
Page 15: Regulatory Disclaimer
Temperature (TMP) User Manual 5.5. Regulatory Disclaimer biosignalsplux products are intended for use in life science education and research applications; they are not medical devices nor are they intended for medical diagnosis, cure, mitigation, treatment or prevention of disease. We expressly disclaim any liability whatsoever for any direct, indirect, consequential, incidental or special damages, including, without limitation, lost revenues, lost profits, losses resulting from business interruption or loss of data, regardless of the form of action or legal theory under which the liability may be asserted, even if advised of the possibility of such damages. - Page 16 Temperature (TMP) User Manual PLUX Wireless Biosignals S.A. email: plux@plux.info web: http://www.plux.info Headquarters Zona Industrial das Corredouras, Lt. 14 – 1° 2630-369 Arruda dos Vinhos Portugal tel.: +351 263 978 572 fax: +351 263 978 902 Lisbon Office Av. 5 de Outubro, n° 70 – 2°...
