- Page 1 ACT AP224B GPON HGU Quick Reference Guide Revision C...
- Page 2 Quick Reference Guide Revision C Copyright © 2018 Ascent Communication Technology Limited. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Ascent Communication Technology is strictly forbidden. This document is produced to assist professional and properly trained personnel with installation and maintenance issues for the product.
- Page 3 AP224B Series GPON HGU ONT Table of Contents Introduction ..........................4 1 Hardware Connection ......................4 2 Computer Setup ........................6 3 Guide Setup ..........................8 Troubleshooting ........................12 Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 3 of 14...

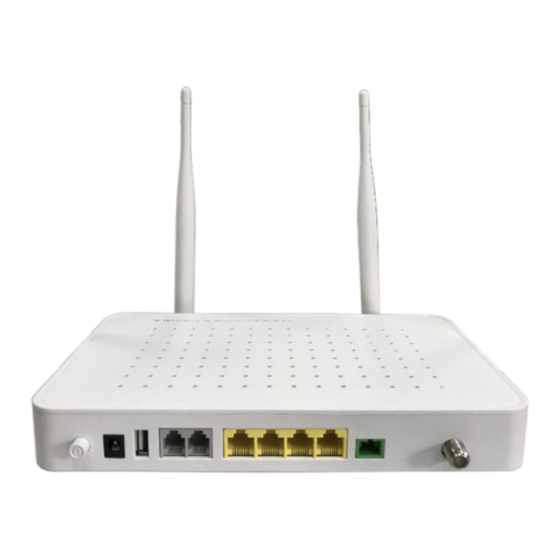

- Page 4 AP224B Series GPON HGU ONT ASCENT’s AP224B is a handy, flexible and standard device, with high integration, about connection to the net. It is a high-end multi-in-one terminal product up to IEEE802.11b/g/n standard, providing connection with high performance for home users and individual merchants.
- Page 5 AP224B Series GPON HGU ONT Connection finished, please check the indicators. POWER Power indicator Green ON: power on OFF: power off PON indicator Green ON: ONU activation OFF: no ONU activation Flickering: ONU activation on WLAN WLAN indicator Green ON: connected but no data transmission OFF: power off or no connection between port and net Flickering: data transmission LAN 1 to 4...
- Page 6 AP224B Series GPON HGU ONT 1) Click “Start → Control Panel → Network and Internet → Network and Sharing Center → Local Connection”, choose “Local Connection”, and “Properties”. 2) Double click “Internet Protocol Version 4 (TCP/IPv4)” Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 6 of 14...
- Page 7 AP224B Series GPON HGU ONT 3) Choose “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 7 of 14...
- Page 8 AP224B Series GPON HGU ONT 1. Open Internet Explorer 2. Type 10.0.0.10 in address bar, enter the web, and type UserName “admin” and Password “super&123” to log in to the interface. Do as the following steps if UserName and Password is modified. 3.
- Page 9 AP224B Series GPON HGU ONT If you need to update the software, choose “Update” under “Manage”, as follows: Select updated version and file, then click “Software Update” and enter “Software Update” to start. 4. Device configuration: Under WAN, users can set “Mode”. Choose “Bridge”, “Service Mode” and “INTERNET”, select on binding port and save.
- Page 10 AP224B Series GPON HGU ONT Logic ID: If LOID was set, LOID info should be configured on ONU. Please click “Logic ID” to log. As follows: Input logic ID and Password, and then click “OK”. Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 10 of 14...
- Page 11 AP224B Series GPON HGU ONT The interface is shown as follows: Reset When Username and Password logging in the router are forgotten, please reset the router. How to reset: with power on, use a toothpick or paperclip to press “RESET” for 10 seconds until the device restarts.
- Page 12 AP224B Series GPON HGU ONT Click “Application”--”VoIP Configure”, see the figure. Click “Application” to see the VOIP Information 5. The computer can see wireless signals but cannot be connected. Please make sure the connected wireless name is in accordance with the SSID of the wireless router.
- Page 13 AP224B Series GPON HGU ONT acknowledged parameters. Restart the computer. If it still does not work, please restore the router and reset it to connect. 6. No wireless signals received. Please ensure WLAN switch is on. Check WLAN driver is installed successfully or not; if not, reinstall it. Check wireless functions of the router is ready with SSID Broadcast permission or not.
- Page 14 Phone: +84 243 795 5917 WEB: www.ascentcomtec.com EMAIL: sales@ascentcomtec.com Specifications and product availability are subject to change without notice. Copyright © 2019 Ascent Communication Technology Limited. All rights reserved. Ver. ACT_AP224B_GPON_HGU_ONT_QRG_V1c_Apr_2019 Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 14 of 14...
