H Y D R O F O I L M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the Y25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RRD Y25

Summary of Contents for RRD Y25

  • Page 1 H Y D R O F O I L M A N U A L...
  • Page 2 WIND FOIL NUAL...
  • Page 4 P R O G R A M : W A T E R M A N L I N E...
  • Page 5 C O N V E R T I B L E I N T O S U P / S U R F / K I T E F O I L comes with : UNIVERSAL ALU MAST 85 Y25 UNIVERSAL PLATE Y25 TUTTLE HEAD FOR UNIVERSAL PLATE Y25 UNIVERSAL FRONT WING 82/1582 sqcms UNIVERSAL REAR WING 52/373 sqcms WHU FUSELAGE 100 cms Y25...
  • Page 6 4x 30mm 3x 30mm 3x 60mm 3x 60mm 3x 25mm 3x 25mm 3x 40mm 3x 30mm 3x 30mm 3x 20mm WH - ALU FUSELAGE 100...
  • Page 7 C O N V E R T I B L E I N T O S U P / S U R F / K I T E F O I L comes with : UNIVERSAL ALU MAST 85 Y25 UNIVERSAL PLATE Y25 TUTTLE HEAD FOR UNIVERSAL PLATE Y25 UNIVERSAL FRONT WING 82/1582 sqcms UNIVERSAL REAR WING 52/373 sqcms WHU FUSELAGE 100 cms Y25...
  • Page 8 P R O G R A M : F R E E L I N E...
  • Page 9 F R E E R I D I N G / L I G H T W I N D F R E E R A C E comes with : WH-ALU MAST 85 Y25 WH-ALU FUSELAGE 120 Y25 WH- ALU TOP PLATE Y25 WH- ALU TUTTLE HEAD Y25 WH-HYBRID CARBON FRONT WING 80/724 sqcms WH-HYBRID CARBON REAR WING 50/281 sqcms...
  • Page 10 4x 30mm 3x 30mm 3x 60mm 1x 20m 3x 25mm 3x 30mm 3x 40mm 3x 20mm WH - ALU...
  • Page 11 F R E E R I D I N G / L I G H T W I N D F R E E R A C E comes with : WH-ALU MAST 85 Y25 WH-ALU FUSELAGE 120 Y25 WH- ALU TOP PLATE Y25 WH- ALU TUTTLE HEAD Y25 WH-HYBRID CARBON FRONT WING 80/724 sqcms WH-HYBRID CARBON REAR WING 50/281 sqcms...
  • Page 12 P R O G R A M : P R O L I N E...
  • Page 13 C O M P WINDFOIL HI PERFORMANCE comes with : WH COMP PREPREG CARBON MAST 95 CMS WH COMP ALU FUSELAGE 110 CMS WH HYBRID CARBON REAR WING 50/281sqcms WH HYBRID CARBON FRONT WING 80/724 sqcms...
  • Page 14 3x 20mm 3x 30mm WH - ALU...
  • Page 15 C O M P WINDFOIL HI PERFORMANCE comes with : WH COMP PREPREG CARBON MAST 95 CMS WH COMP ALU FUSELAGE 110 CMS WH HYBRID CARBON REAR WING 50/281sqcms WH HYBRID CARBON FRONT WING 80/724 sqcms 2x 20mm...
  • Page 16 READ THIS MANUAL CAREFULLY BEFORE USING YOUR RRD HYDROFOIL AND KEEP IT STORED FOR FUTURE READING RRD strongly recommends to follow windsurfing lessons in a specialized school before using a hydrofoil for the first time. The use of a hydrofoil involves inherent risks and can cause severe injuries or, sometimes fatal, accidents if misused.
  • Page 17 • Rule N°1: YOUR PERSONAL SAFETY It is strongly recommended to practice in the company of other users who could eventually call for assistance or help in case of emergency. You should never ride alone. • Rule N°2: PERSONAL SAFETY EQUIPMENT Helmet: It is strongly recommended to wear a helmet to protect you in case of a fall or any other unexpected situations.
  • Page 18 •The warnings and practices set forth above represent some common risks encountered by users. •This list does not purport to cover all instances of risk or danger. Please use common sense and good judgment. •GET TO KNOW THE RRD WIND-HYDROFOIL (WH-FLIGHT HYDROFOIL)
  • Page 19 The front and rear wings of the hydrofoil work as lifting devices. The wings create a lifting force from the flow of water that travels across them at speed. This is the reason why they are built with a specific sectional profile: The shape of the wings’...
  • Page 20 USING THE RRD HYDROFOIL On shore Handling : The RRD windfoil should always be laid on its side when left on the ground, Never leave the windfoil (assembled with the board) standing up or upside down. It can easily fall on its side and get damaged.

  • Page 21: Important Note

    Again, it is recommended to walk back to the shore keeping the board carefully on its side. TO KEEP THE RRD WH-FLIGHT HYDROFOIL IN GOOD CONDITIONS: After every use, make sure you always: •Clean and rinse all the parts of the hydrofoil before storing them.
  • Page 22 SURF KITE HYDRO- FOIL NUAL...
  • Page 24 P R O G R A M : W A T E R M A N L I N E...

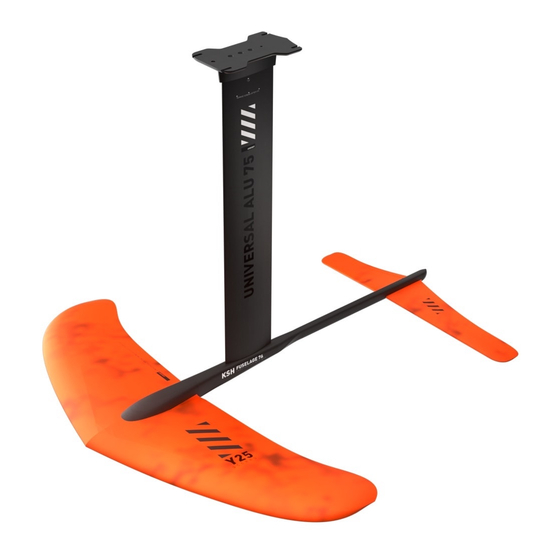

  • Page 25 U N I V E R S A L K S H A L U S E T K I T E F O I L / S U P & S U R F F O I L C O N V E R T I B L E I N T O W I N D H Y D R O F O I L comes with : UNIVERSAL PLATE UNIVERSAL ALU MAST 75 cm...
  • Page 26 4x 30mm 3x 30mm 3x 25mm 3x 30mm...
  • Page 27 C O N V E R T I B L E I N T O W I N D H Y D R O F O I L comes with : UNIVERSAL PLATE Y25 UNIVERSAL ALU MAST 70 Y25 KSH FUSELAGE ALU 76 Y25 UNIVERSAL FRONT WING 82/1582 sqcms...
  • Page 28 P R O G R A M : F R E E L I N E...
  • Page 29 K H A L U S E T K I T E F O I L comes with : UNIVERSAL PLATE UNIVERSAL ALU MAST 75 cms KH ALU FUSELAGE 68 cms KH-HYBRID CARBON FRONT WING 57cm/725 cms KH-HYBRID CARBON REAR WING 38cm/262 cms KH-ALU BAG...
  • Page 30 4x 30mm 3x 30mm 3x 30mm FUSELAGE 68...
  • Page 31 K I T E H Y D R O F O I L F R E E R I D E / F R E E R A C E comes with : UNIVERSAL ALU MAST 75 Y25 (INCLUDING PLASTIC BASE ADAPTER 25 BAU) UNIVERSAL PLATE Y25 KH ALU FUSELAGE 68 Y25...
  • Page 32 READ THIS MANUAL CAREFULLY BEFORE USING YOUR RRD HYDROFOIL AND KEEP IT STORED FOR FUTURE READING Rrd strongly recommends to follow hydrofoil kite / surf / SUP lessons in a specialized school before using a hydrofoil for the first time. The use of a hydrofoil involves inherent risks and can cause severe injuries or, sometimes fatal, accidents if misused.
  • Page 33 • Rule N°1: YOUR PERSONAL SAFETY It is strongly recommended to practice in the company of other users who could eventually call for assistance or help in case of emergency. You should never ride alone. • Rule N°2: PERSONAL SAFETY EQUIPMENT Helmet: It is strongly recommended to wear a helmet to protect you in case of a fall or any other unexpected situations.
  • Page 34 •This list does not purport to cover all instances of risk or danger. Please use common sense and good judgment. •TAKE YOUR TIME TO GET TO KNOW THE RRD SH FLIGHT ALU 60 HYDROFOIL IN YOUR OWN SAFE SPACE...
  • Page 35 The front and rear wings of the hydrofoil work as lifting devices. The wings create a lifting force from the flow of water that travels across them at speed. This is the reason why they are built with a specific sectional profile: The shape of the wings’...
  • Page 36 USING A SUP / SURF HYDROFOIL On shore Handling : The RRD sup foil should always be laid on its side when left on the ground, Never leave the supfoil (assembled with the board) standing up or upside down. It can easily fall on its side and get damaged.
  • Page 37 Again, it is recommended to walk back to the shore keeping the board carefully on its side. TO KEEP THE RRD SH-FLIGHT HYDROFOIL IN GOOD CONDITIONS: After every use, make sure you always: •Clean and rinse all the parts of the hydrofoil before storing them.
