i3 Am51 User Manual

1080P (2MP) Indoor IR HD Analog Dome w/ Motorized Lens
Thank you for purchasing i3 International's Am51 High Definition indoor analog dome
camera. Your camera is equipped with a motorized vari-focal 2.7-13.5mm @ F1.6-2.4
lens. The lens can be controlled through IE interface of the i3 encoders/standalone DVRs,
or through SRX-Pro Server/VPC. This camera features twist-on dome bubble and mounting
back plate for easy installation.

SAFETY

When installing your Am51 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light and unstable light sources
• temperatures below -40°C (-40°F) and above 50°C (122°F)

POWER

This camera accepts DC12V and AC24V power.
Maximum power consumption: 9.7W.
Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty.
CLEANING & SERVICING
For maximum optical clarity, the camera dome or lens must remain clean. Use a soft, dry
cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finishes.
• To avoid electrical shock and to preserve the product warranty, DO NOT disassemble
the camera. Refer servicing to qualified personnel only.

PACKAGE CONTENTS

Ensure that the items received match those listed on the order form and the packing slip.
In addition to this manual and a fully assembled camera, the dome camera packing box
includes:
A.
Plastic Anchor x4
B.
Round Head Screw
(Tapping Type) x4
C. Waterproof Tape x1
D. Surface Mount template x1
E. Service Monitor BNC cable x1
DIMENSIONS
46mm (1.81")

HIGH DEFINITION ANALOG VIDEO SUPPORT

Your Am51 camera supports the standard CVBS composite analog video stream (720x480)
and a high-definition (2MP) video stream in HD-TVI, HD-AHD, and HD-CVI format.
Note: Am51 camera supports a single video output at-a-time. No separate spot monitor
output is offered.
IMPORTANT: In order to use high-definition video, your Am51 camera must be
connected to a video encoder or standalone DVR/HVR that supports HD-TVI, HD-
AHD, or HD-CVI format.
Note: i3's line of encoders and embedded standalone DVRs supports HD-TVI and CVBS
formats only.
i3-TRNG-CAMS-Am51-UM.indd
Waterproof tape
e Waterproof tape
pe Waterproof ta
f tape Waterproo
oof tape Waterpr
proof tape Water
A B C
E
Ø136mm (5.35")
Ø99.94mm (3.93")
User Manual

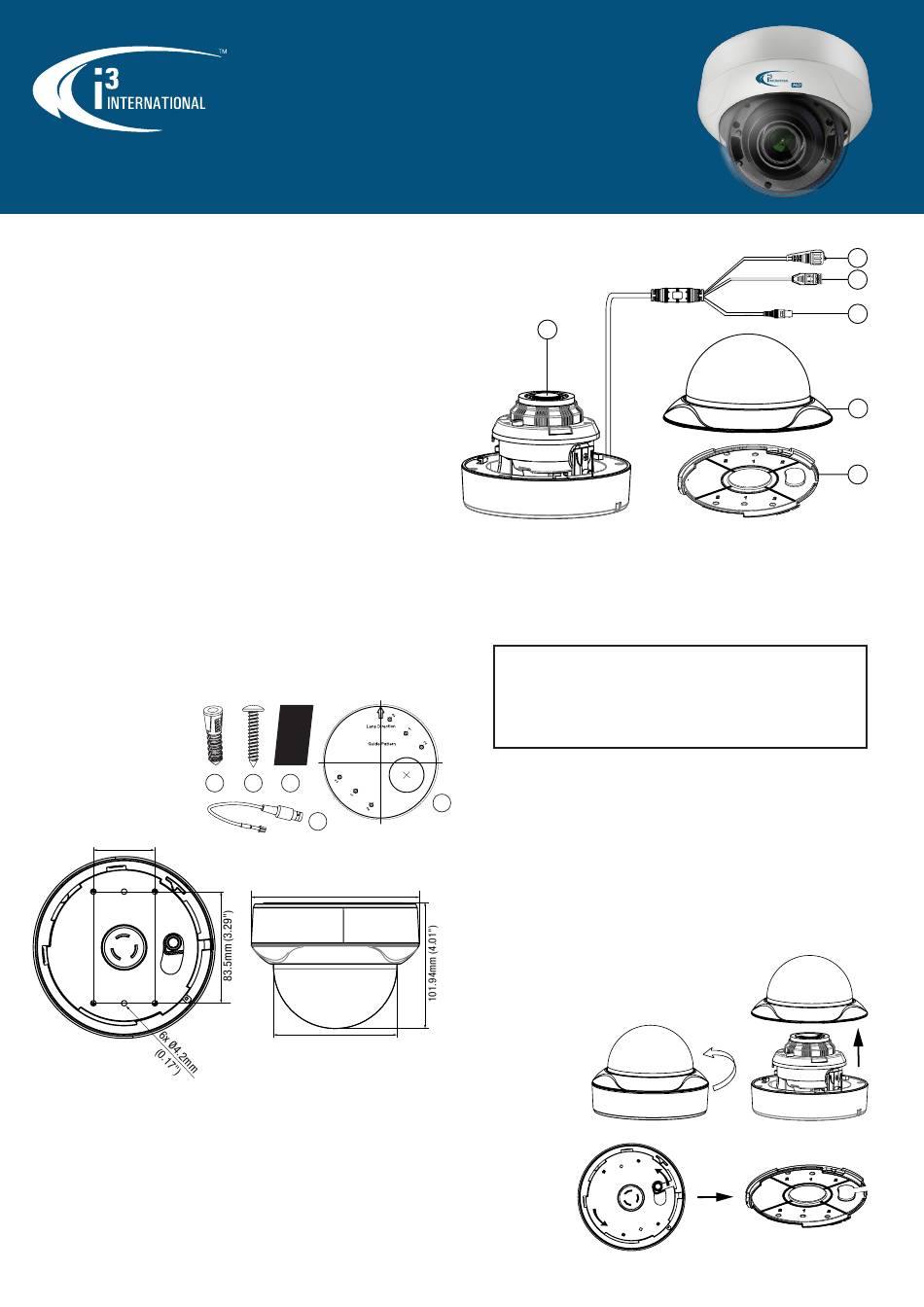

CAMERA PARTS AND DEFINITIONS

1
1.
Camera module/lens.
2. Video format switch. Default video format setting: HD-TVI.
3. Power connector (DC12V/AC24V).
4.
BNC video connector. Connect to an encoder, DVR/HVR or service monitor.
Four (4) video formats supported: HD-TVI (default), HD-AHD, HD-CVI and CVBS.
Use the video format switch (#2) to set video format as required.
5. Dome bubble, twist-on.
6.
Camera back plate (pre-installed). Use for surface and electrical box mounting.
CHANGING VIDEO FORMAT:
- Unscrew protection cap from the video format switch (#2).
- Press and hold the button for 5 seconds to change the video output format
to the next one in sequence.
Video format sequence: TVI (default) > AHD > CVI > CVBS.

INSTALLATION

Am51 camera supports easy twist-on surface mounting and is compatible with most
standard North American electrical boxes (with the optional B11 mounting plate).
D
Prepare the mounting surface
• Depending on the type of installation, additional mounting accessories may need
to be purchased.
• It is the installer's responsibility to ensure that the mounting surface is suitable
for the chosen installation method.
• Based on installation location and surface type, supplied screws and anchors
may not be adequate. Mounting hardware is site-specific and may need to be
supplied by the installer.

DISASSEMBLY

To prepare the camera for mounting, remove the camera's dome
bubble and back plate.
The camera's back plate can be mounted directly onto a
suitable surface or onto the optional B11 mounting plate,
for mounting onto supported electrical box types.
Removing the twist-
off dome bubble
Rotate the dome bubble
in a counter-clockwise
motion and lift it away
from the main camera
module. Set aside.
Removing the twist-off back plate
Am51 camera's back
plate is pre-installed
but unlocked for
easy removal.
Lift the back plate
away from the main
camera module.
Set aside.
Am51
2
3
4
5
6
Rev. 200205
