i3 Ax46DC Quick Start Manual

Network IR Door Counting Dome Camera

SAFETY

When installing your Ax46/66 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -10° Celsius or 14° Fahrenheit and above 50° Celsius or 122°
Fahrenheit

POWER SUPPLY

Ensure the supplied voltage meets the power consumption requirements of this camera
before powering the camera on. Incorrect voltage may cause irreparable damage to the
video camera and will effectively void the camera warranty. PoE power is supported by
this camera series.To mount the camera, do the following:

CLEANING

• For maximum optical clarity, the camera dome or lens must remain clean. Use a soft,
dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may dam-
age the surface finishes.

SERVICING

To avoid electrical shock and to preserve the product warranty, DO NOT disasemble the
camera. Refer servicing to qualified personnel only.

PACKAGE CONTENTS

1. Guide Pattern sticker x1
2. Torx key x1
3. Plastic Anchor x3
4. Round Head Screw (Tapping Type) x3
3 4
Please Note: Visit www.i3international.com to view and download the full User Manual for
this camera. Also available for download is the AnnexxusConfigurationTool or ACT program
used to locate and configure your cameras with your SRX-Pro software. This program is already
installed in SRX-Pro v3.3.3.69 and higher. Please contact our Technical Support team if you have
any questions or concerns regarding camera installation or you require software services or sup-
port. Technical support can be reached by email at:
support@i3International.com or by phone toll free 1.877.877.7241.
i3-TRNG-CAMS-Ax46DC-QuickGuide.indd
Hole
Ceiling Mounting
Hole
Hole Hole
2
1
Quick Start Guide

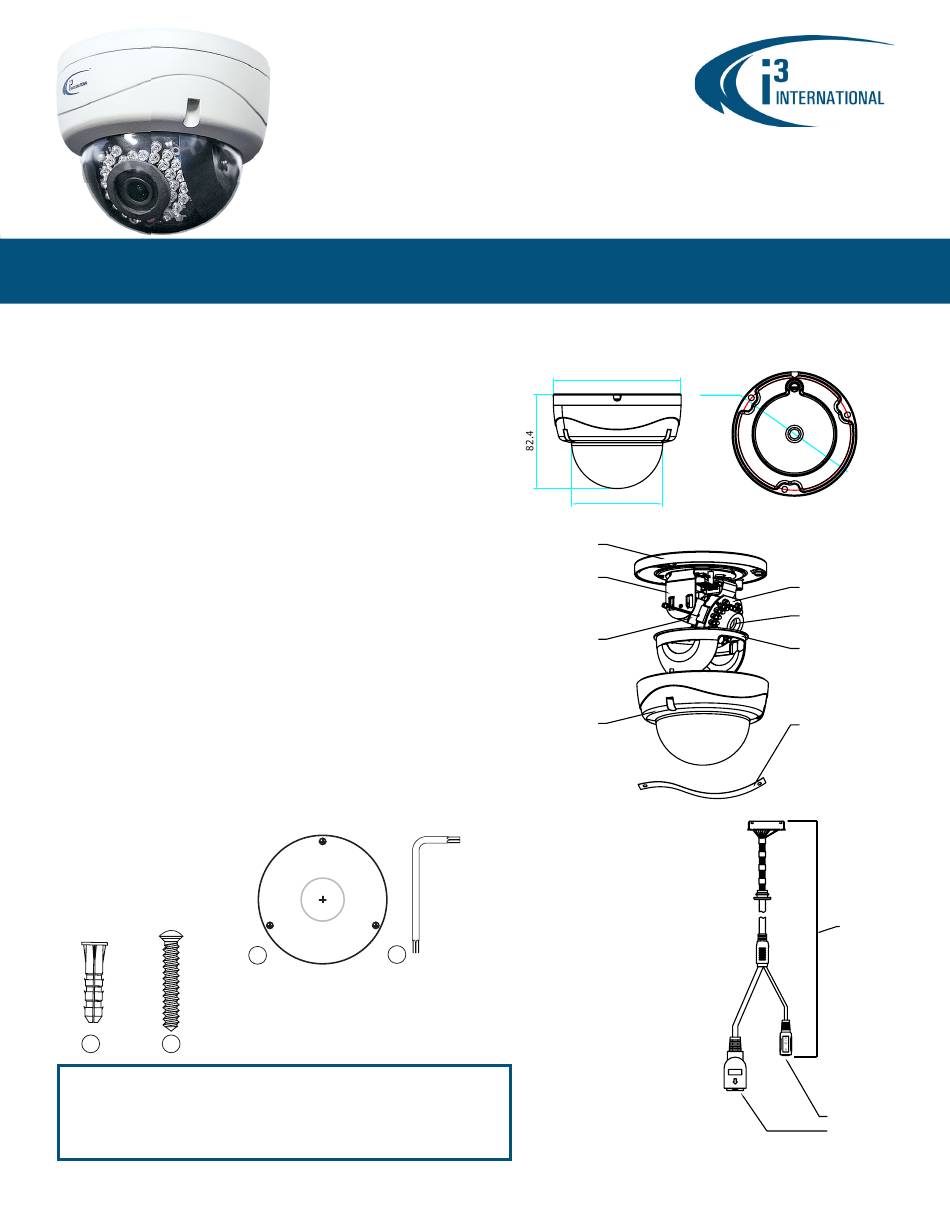

CAMERA PARTS AND DEFINITIONS

Ø111
Ø79.1
Mounting base
Horizontal stand
Vertical stand
Lower dome
Connect the PoE or DC12V power connector.
PoE (IEEE 802.3af): Connect the RJ-45
connector to a PoE compatible network device
that supplied power through the Ethernet cable.
DC12V: Connect the DC12V power connector to
a DC12V power source.
WARNING! DO NOT connect both PoE and
DC12V power connectors at the same time.
For DC power supply use, make sure the
polarity is correct to avoid malfunction and /
or camera damage.
Ax46DC
Ø100.4
Unit: mm
Infrared lamp plate
Lens
Black liner
Safety rope
Cables
Power line
Network cable
Rev. 160824
