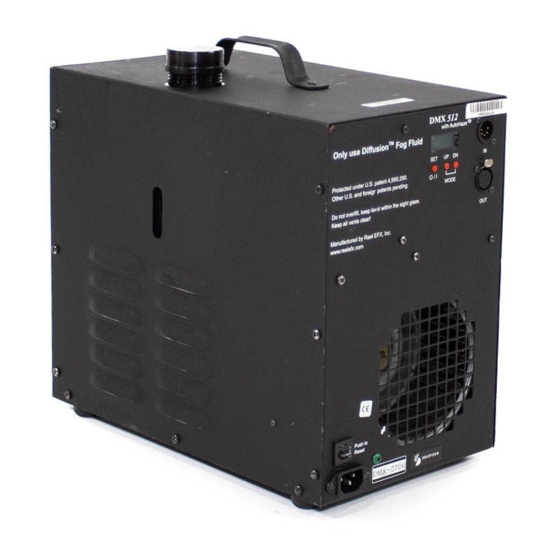

- Page 2 USER OPERATING MANUAL DF-50 DIFFUSION™ HAZER & DF-50 DMX Option 5539 Riverton Avenue ! ! ! ! N. Hollywood, CA 91601 ! ! ! ! USA PH: (818) 762-1710 ! ! ! ! FX: (818) 762-1734 ! ! ! ! Internet: reelefx.com Page 1 of 10 DF-50 Diffusion Hazer Operation...
- Page 3 DF-50 DIFFUSION HAZER ™ ™ ™ ™ INTRODUCTION The DF-50 Diffusion Hazer is the cleanest most cost effective atmospheric Hazer available in ™ the market today. Fluid use is less than 2 ounces an hour! The Diffusion™ Fog produced is totally odorless and can only be detected visually.
- Page 4 DF-50 DIFFUSION HAZER ™ ™ ™ ™ OPERATING INSTRUCTIONS OVERVIEW The DF-50 Diffusion HAZER should NOT be considered as a standard fog machine. Because of the minute size of the fog produced and its long lasting hang time (3+ hours in an particulate enclosed area) it is not necessary to have the concentration of fog that is normally associated with other machines.
-
Page 5: Filling Instructions
DF-50 DIFFUSION HAZER ™ ™ ™ ™ OPERATING Always 1. Transport the unit right side up or empty. 2. Before operating, fill with Diffusion™ Fog Fluid just below the top of the tank window on the side of the unit. ALWAYS TAKE CARE NOT TO OVERFILL. 3. -
Page 6: Routine Maintenance
DF-50 DIFFUSION HAZER ™ ™ ™ ™ ROUTINE MAINTENANCE FLUID LEVEL: Using the glass sight level on the side of the machine fill with a sufficient amount of fluid to approximately 1/2” below the top level. If you overfill, then tip the machine on its side to dispose of the excess. -
Page 7: Useful Tips
DF-50 DIFFUSION HAZER ™ ™ ™ ™ USEFUL TIPS The DF-50 Diffusion™ Hazer provides a fine atmospheric mist. The recommended level for use in an eight hour day is 5mg/CuM, and this represents a fine mist, NOT fog or smoke. When this mist is just visible to the eye, then you would have maximum working concentration. -
Page 8: Specifications
DF-50 DIFFUSION HAZER ™ ™ ™ ™ SPECIFICATIONS SIZE: 35cmH x 38cmL x 21cmW 14”H x 15”L x 8”W WEIGHT: 16 kg or 35 lbs. net without fluid POWER: 100v 50-60Hz 120v 60Hz 200-240v 1.9A 50Hz FLUID: Diffusion brand haze fluid FLUID CAPACITY: 2 Liters or ½... - Page 9 DF-50 DIFFUSION HAZER ™ ™ ™ ™ IMPORTANT MESSAGE! THE FOLLOWING WILL VOID THE MANUFACTURERS WARRANTY. " The use of non-approved Diffusion Fluid. ™ " Using the DF-50 in a non-approved case. " Alteration of the unit in any manner without factory authorization. "...
- Page 10 DF-50 DMX OPTION The DF-50 DMX version, now available, allows three modes of operation. This new DMX feature enables control of the DF-50 from a light board, from internal auto settings or from the standard manual On/Off. The DMX interface is fully USITT 1990 compliant featuring an address range of 1-512 and industry standard 5 pin XLR connectors.
- Page 11 Auto Mode (internal automatic control) In the Auto Mode the user sets the desired percent of output proportionately to the number of seconds the DF-50 will produce haze during its 100-second duty cycle. This can be done once you are in the “AUTO” mode by simply pushing the buttons labeled “UP”...
