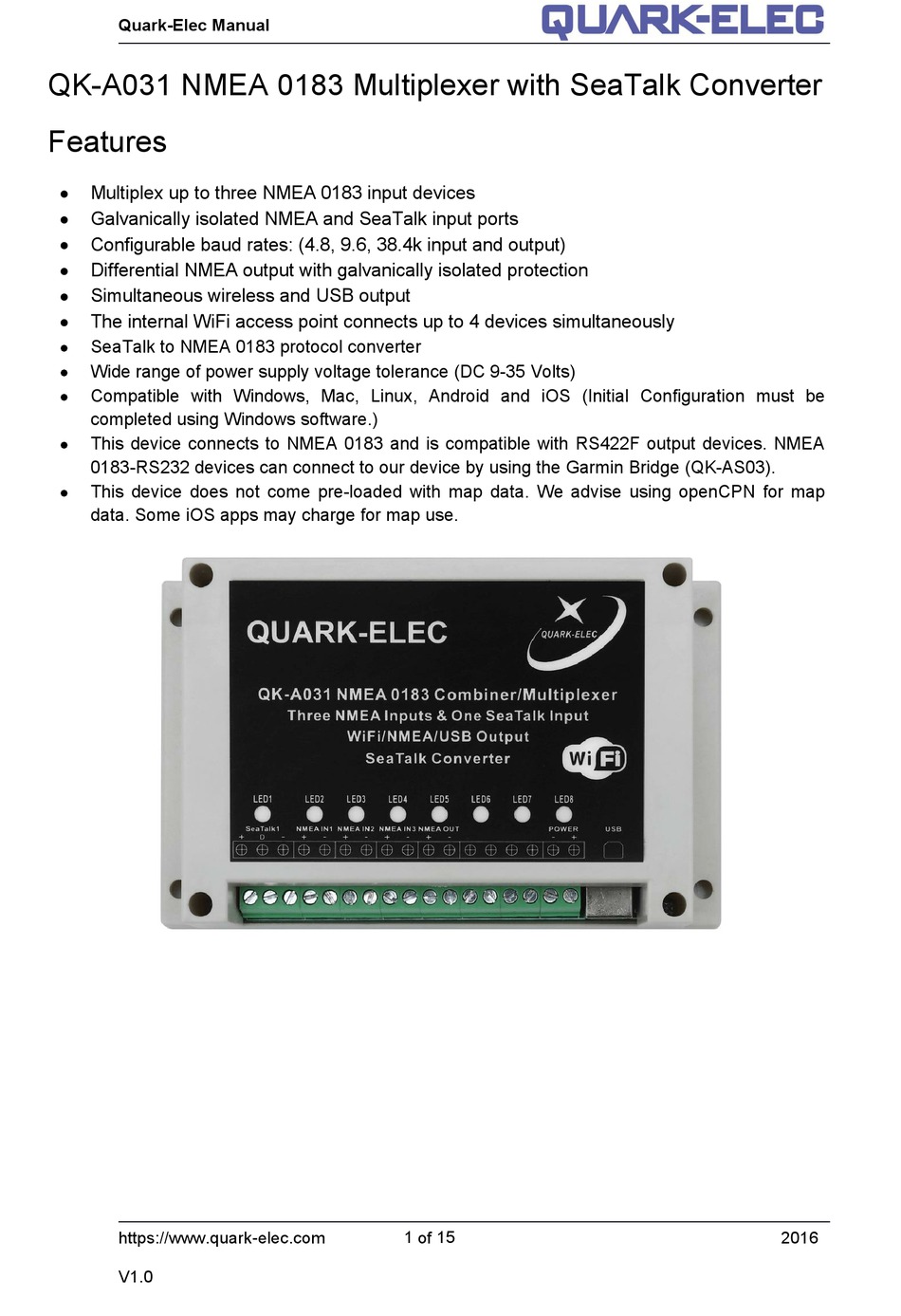

Quark-Elec Manual

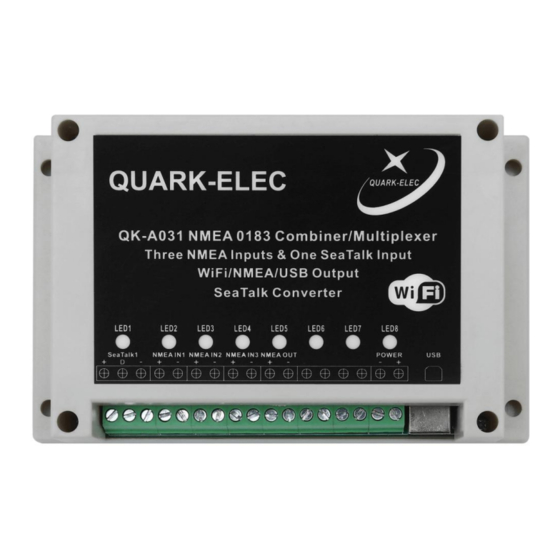

QK-A031 NMEA 0183 Multiplexer with SeaTalk Converter
Features
Multiplex up to three NMEA 0183 input devices
Galvanically isolated NMEA and SeaTalk input ports
Configurable baud rates: (4.8, 9.6, 38.4k input and output)
Differential NMEA output with galvanically isolated protection
Simultaneous wireless and USB output
The internal WiFi access point connects up to 4 devices simultaneously
SeaTalk to NMEA 0183 protocol converter
Wide range of power supply voltage tolerance (DC 9-35 Volts)
Compatible with Windows, Mac, Linux, Android and iOS (Initial Configuration must be
completed using Windows software.)
This device connects to NMEA 0183 and is compatible with RS422F output devices. NMEA
0183-RS232 devices can connect to our device by using the Garmin Bridge (QK-AS03).
This device does not come pre-loaded with map data. We advise using openCPN for map
data. Some iOS apps may charge for map use.
https://www.quark-elec.com
V1.0
1 of 15
2016
