Quark-Elec QK-A031 Quick Start Setup Manual

QK-A031 - NMEA 0183 Multiplexer with SeaTalk* Converter

SET UP

In the box you should have:

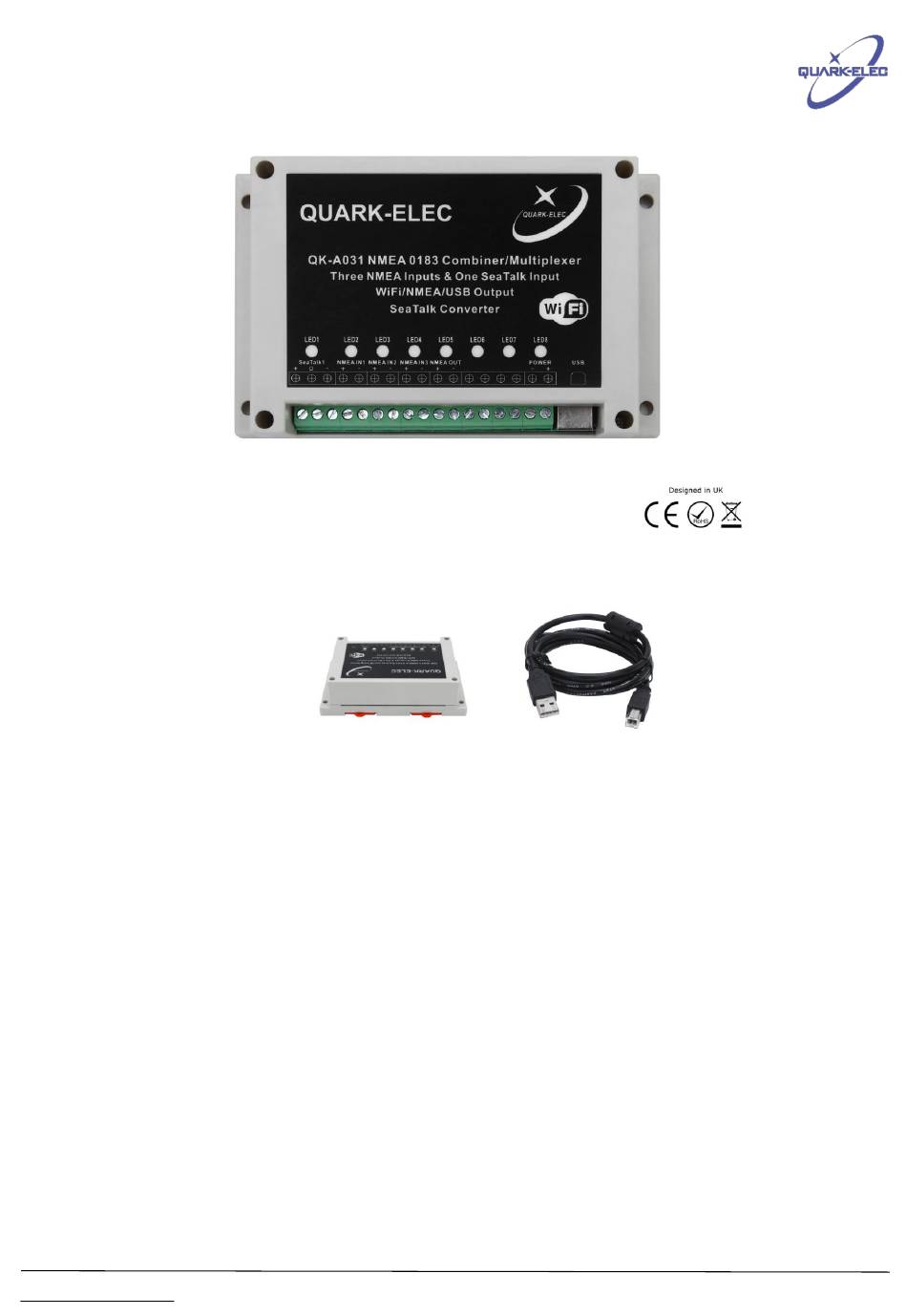

1 x QK-A031
1 x USB-B cable
1 x CD with manuals and drivers
Location: Select where your QK-A031 is to be sited. Ideally, it should not be fitted close to generators or
compressors (e.g. refrigerators) as they can generate substantial RF noise. It is designed to be installed in a
protected indoor environment. Generally, a suitable placement of QK-A031 is together with other types of
navigation equipment and the PC or chart plotter that will be used to display the output data. QK-A031 is
designed to be securely mounted to a suitable bulkhead or shelf in an indoor environment and needs to be
placed where it is well protected from humidity and water.
 Double-check the specifications of ALL devices before connecting them. (see Connections
section)
 Check unit is placed where it is well protected from humidity and water. (see Location section)
 Check power supply is connected +ve 12V (e.g.) and –ve to GND or permanent damage will
be caused to the QK-A031. (see Power Up section)
 Check the + and - terminals of the NMEA output on the QK-A031 are connected to the + and -
terminals of the input on the instrument . (see Connections section)
