- Page 1 Developed and Designed in Sweden by IQue Sweden AB Grustagsgatan 13 254 64 Helsingborg Sweden Here is your manual, please read and follow the instructions carefully In.Clear Manual...
- Page 2 in.clear ™ Bromine based water sanitization system for spas TechBook Water so clear You‘ll want to touch it ! You’ll need to feel it !
- Page 3 WARNING: Operating the In.Clear Automatic Bromine Generator without water flow through the cell can cause a build up of flammable gases which can result in FIRE or EXPLOSION. Gecko Alliance Group Inc. 450, Des Canetons, Québec (Québec) Canada G2E 5W6 800-784-3256 ext.
-
Page 4: Table Of Contents
in.clear table of contents ™ Table of contents in.clear™ introduction ...................5 warnings ....................6 bromine benefi ts - how in.clear™ works ........... 8 keypad installation ................9 - installing the in.k200™ ............9 - skirt mount installation ............10 - connecting the in.k200™ to in.clear™ .......12 in.clear™... -
Page 5: In.clear
in.clear ™ introduction in.clear ™ Water sanitation systems for spas With its waterproof enclosure, its sturdy design, the new in.clear™ is the most effi cient water sanitation system offered to the spa and hot tub industry today. In.clear™ is a system that generates and releases bromine into the spa water to rapidly control and destroy any microbiological contaminants such as waterborne bacteria, algaes, body chemicals, organic matter given off by spa bathers and other organisms known to be linked to... -
Page 6: Warnings
warnings in.clear ™ Warnings! Important safety instructions • In.clear™ must be used only with BromiCharge™ Sodium Bromine • Do NOT add any other sanitation chemicals in the spa other than Salt that is registered or scheduled under Registration No. 29628 Pest BromiCharge™. - Page 7 warnings in.clear ™ Warnings! • The appliance must be installed in a location that is inaccessible to • Disconnect all UV sanitation devices. a person in the bath or spa and must be located or fixed so that it cannot fall into the bath or spa. •...
-
Page 8: Bromine Benefi Ts - How In.clear™ Works
bromine benefits in.clear ™ How in.clear works! Bromine in a spa! ™ When BromiCharge™ is added to the water, it separates into sodium Bacteria requires a certain period of time before forming into micro ions and bromide ions. As the water passes through the in.clear™ colonies and becoming attached to a surface. -
Page 9: Keypad Installation
in.clear keypad installation ™ Installing the in.k200™ " 67 mm The keypad should be installed directly onto the spa (or very close to it) so that it is easily accessible to the user. • To install the in.k200™, drill two 25 mm (1”) diameter holes at 67 mm (2 5/8”) from center to center as illustrated. -
Page 10: Skirt Mount Installation
keypad installation in.clear ™ Skirt mount installation For a skirt mount installation the keypad should be installed directly Cut out the material between the two holes (see illustration above). on a spa panel so that it is easily accessible to the user.Insure that the keypad control is located accordingly. - Page 11 in.clear ™ Skirt mount installation Peel the adhesive gasket from the back of the keypad, insert it in the cutout and align it correctly, then ensure it's properly glued by gently pressing evenly on the entire surface.
-
Page 12: Connecting The In.k200™ To In.clear
keypad installation in.clear ™ Connecting in.k200 main keypad to in.clear ™ ™ The in.k200™ comes with a 3.3 m (10 ft) cable and an in.link in.k200™ connector. To connect the in.k200™, simply insert its in.link connector into the appropriate keypad connector "C" (as illustrated). -
Page 13: In.clear™ Installation
in.clear installation ™ ™ in.clear installation scheme with circulation pump Fig. A spa filter water jet circulation pump ™ heater in.clear 11 to 150 liters/min (3 to 40 US GPM) - Page 14 installation in.clear ™ in.clear ™ installation scheme with dual speed pump Fig.B flow Flow must be between 11 and 150 liters/min (3 and 40 US GPM) spa filter ™ in.clear water jet water manifold to water jets dual speed heater jet pump 113 to 757 liters/min (30 to 200 US GPM)
- Page 15 installation in.clear ™ ™ in.clear installation scheme with venturi Fig.C flow Flow must be between 11 and 150 liters/min (3 and 40 US GPM) Venturi spa filter ™ in.clear water jet water manifold to water jets heater dual speed jet pump 113 to 757 liters/min (30 to 200 US GPM)
- Page 16 installation in.clear ™ Water flow Installation Empty water from the spa. If in.clear™ is installed The in.clear™ system can be in.clear™ unit must be installed installed in an upright position or vertically: Make sure the before the spa is filled with water. horizontally.
- Page 17 ™ installation Power cable Gecko # 52202000 www.geckodepot.com For an optimal connection to Slide the two plastic union nuts in.clear™ must be pro- Connect the in.k200™ keypad to spa plumbing, please note that over the in.clear™ unit's threaded tected by the same...
-
Page 18: Operating Modes
operating modes in.clear ™ The in.clear system operates in two modes: ™ Maintenance Mode and Boost Mode Maintenance Mode: It is important to note that the in.clear™ system can ONLY generate bromine when the water is circulating. If you are having problems The primary function of the Maintenance Mode is to keep the maintaining a stable level of bromine, or determining the proper bromine bank levels at a stable and acceptable range when the spa... -
Page 19: Getting Started
in.clear ™ getting started Start up procedure: 2 - Refilling the spa 1 - Draining and cleaning the spa After the in.clear™ unit has been installed, check the TDS It's important to completely drain and clean the spa to remove any solid residue accumulated on the surface and inside or around the (Total Dissolved Solids) of the water you'll use to refill the spa. - Page 20 getting started in.clear ™ 3 - Adjusting water chemistry in the spa 4 - Adding BromiCharge™ Proper chemical maintenance of a spa is essential for the health of Water temperature between 32 and 38 Celcius (90 and bathers. Maintaining the quality of the spa water within these specified 100 Fahrenheit) helps disolve BromiCharge™...
- Page 21 in.clear ™ getting started 4 - Adding BromiCharge™: (continued) 5 - Activating the system: Power up your spa and activate the system by pressing the Boost key. Start the pump to allow water to circulate and slowly add BromiCharge™ uniformly in the spa by simply pouring it from the container.
- Page 22 getting started in.clear ™ 7 - Determining the proper bromine generation maintenance Do NOT increase/decrease maintenance level in steps greater level for my spa than 5. Setting the maintenance level to a value that's too high can Determining the proper maintenance level for your spa is an extremely cause damage to your equipment.
- Page 23 in.clear ™ getting started Other tips: 8 - Determining the Boost Mode level for my spa The in.clear™ generator is designed to work with ONLY When entering your spa, activate the Boost Mode using the Boost Key on the keypad. As a rule of thumb, the Boost level may BromiCharge™...
-
Page 24: Keypad Operations
keypad operations in.clear ™ Keypad functions Bromine generator on indicator On/Off & Boost Diagnostic Up key Down key... - Page 25 in.clear ™ keypad operations Boost key The fi rst press of the On/Off / The keypad display will show a Confi rm the selection by pressing Press the Boost key during a Boost Boost key activates the system in numeric value that corresponds the Boost key again or wait 5 sec- period to cancel the active cycle Maintenance Mode.
- Page 26 keypad operations in.clear ™ + / - Prog key Keys Press and hold the Prog key for Maintenance level adjustment Changing the water Never adjust the main- 2 seconds to enter Maintenance alters the rate at which bromine temperature setpoint of your tenance level of your in.clear™...
- Page 27 in.clear keypad operations ™ Diagnostic Mode The primary function of this Diagnostic Mode can be used to If your BromiCharge™ level Diagnostic mode and mode is to indicate, on a real- periodically adjust BromiCharge™ registers in the left yellow or BromiCharge™...
- Page 28 BromiCharge™ level monitoring in.clear ™ BromiCharge™ gauge BromiCharge™ gauge (LEDs) In Diagnostic mode, the BromiCharge™ gauge (LEDs) indicates the Water must be circulating BromiCharge™ level of your spa water. through the in.clear™ cell in order for the Diagnostic Mode to work. When adding BromiCharge™, the gauge indicator will gradually shift to If no water is circulating through the right.
-
Page 29: Troubleshooting
troubleshooting in.clear ™ Low BromiCharge™ Error Low BromiCharge™ High BromiCharge™ Warning Warning Low BromiCharge™ Error (Err) If after adding BromiCharge™ Low BromiCharge™ Warning High BromiCharge™ Warning occurs when the BromiCharge™ the Low BromiCharge™ Warning (Lo) indicates the need to add (Hi) occurs when too much level is too low. - Page 30 troubleshooting in.clear ™ Blinking Bromine Blinking “AC ” Bromine Generation In.clear is turned off Generation indicator indicator is off A blinking Bromine Generation A blinking “AC” message The Bromine Generation LED The OFF message indicates that LED means that the system is indicator is OFF when there is no the in.clear™...
- Page 31 troubleshooting in.clear ™ Low or no bromine reading Long recovery time after usage Make sure the maintenance level is properly set according to the Activate Boost Mode every time you use your spa to the appropriate procedure described in section 7 - “Determining the proper bromine level.
-
Page 32: F.a.q
frequently asked questions in.clear ™ Q1 - My spa water is cloudy /oily Q3 - What should I use to clean my spa? A1 - If your spa becomes cloudy or oily due to bather load perform an A3 - Always use a non-sudsing cleaner found at your spa store. additional Boost and wait for 24 hours to see if conditions return to nornal. -
Page 33: Glossary
in.clear ™ glossary T.D.S P.P.M Total Alkalinity Total Dissolved Solids (TDS) is pH (potential hydrogen) is a "Parts-per million" notation Alkalinity or TA is a measure of an expression for the combined measure of the acidity or basicity is used to denote relative the ability of a solution (such as content of all inorganic and of a solution. - Page 34 in.clear glossary ™ Calcium Hardness (CH) Total Hardness (TH) Organic Matter Bather Load Calcium Hardness describes the Total Hardness describes the Substances left behind by spa This term is used to describe concentration of calcium in your concentration of calcium and users such as oil, sweat and dead the number of bathers using a skin cells that serve as "food"...
-
Page 35: Cell Cleaning
in.clear cell cleaning ™ Cell cleaning: In.clear™ includes a self-cleaning feature to prevent scale deposits on Wear eye protection and rubber gloves during these the graphite electrodes of the in.clear™ system. However, deposits operations. Splashing or spilling acid can cause severe may still form due to unbalanced water conditions. - Page 36 in.clear cell cleaning ™ • Install the rubber washer and the plastic nut on the threaded end of • Re-install the in.clear™ unit into spa system plumbing, tighten all the cell. Tighten plastic nut firmly. connections by hand. Open the spa flow Shut Off Valves. •...

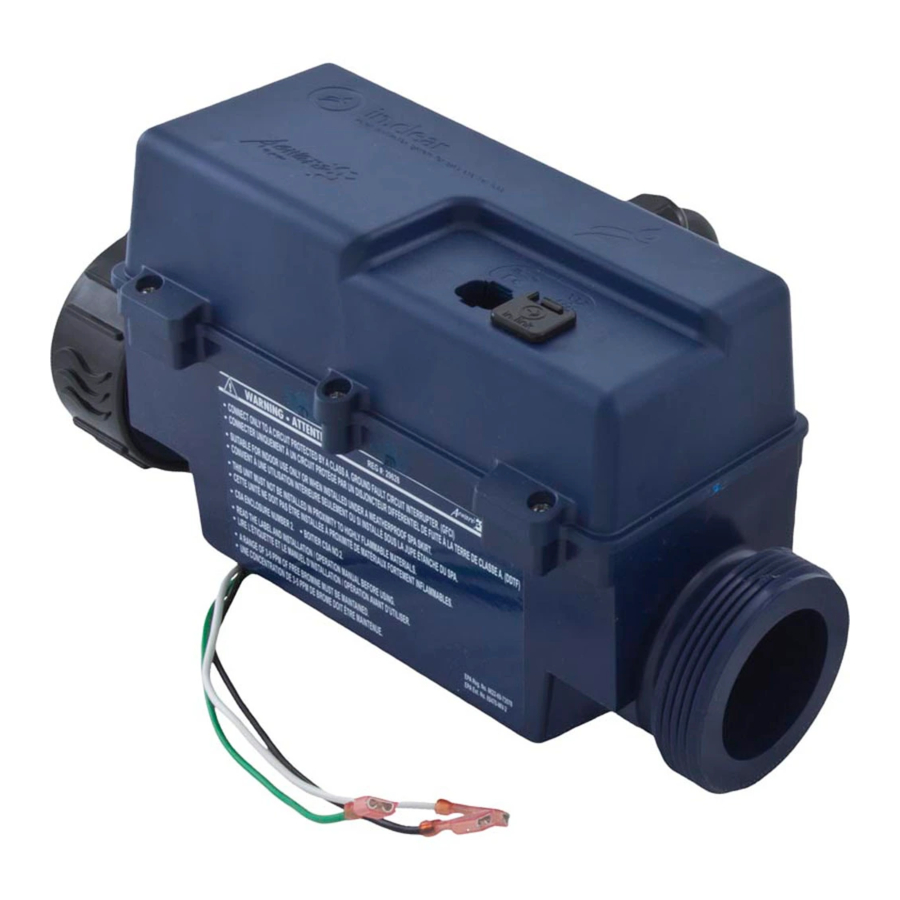

- Page 37 in.clear cell cleaning ™ Dimensions: 120 mm (4.7") 277 mm (10.9") Buttress threads Buttress threads 3-8 both ends 3-8 both ends Keypad connector Comm. Port Power input cable Rugged plastic watertight enclosure 155 mm (6.1") 50,8 mm Inside diameter (2")
-
Page 38: Specifications
specifications in.clear ™ General specifications: Mechanical: Environmental: Weight: 2.25 kg (5.0 lbs) Operating temperature: Dimensions (W x H x D): 0˚C (32˚F) to 50˚C (122˚F) Chassis: 276.2mm x 153.6mm x 119mm (10.875’’ x 6.046’’ x 4.682’’) Storage temperature: -25°C (-13°F) to 85°C (185°F) Humidity: up to 85% RH, non condensing North America: Water Ingress protection: IPx5... - Page 39 in.clear ™ specifi cations Keypad dimensions: in.k200™ general specifi cations: Environmentals: Storage temperature: –30˚C (-22˚F) to 70˚C (158˚F) Operating temperature: –20˚C (-4˚F) to 60˚C (140˚F) 51 mm (2") Humidity: 100% condensing Mechanical Specs: Weight: 0.41 kg (0.9 lbs) Dimensions (W x H x D): Front Panel: 120 mm 120 mm x 51 mm x 43 mm...
- Page 40 BromiCharge™ for use with the in.clear bromine based water sanitization system for spas with BROMITRON™ Bromine Generator Technology BromiCharge™™ FOR SPA USE ONLY (Not for use in swimming pools) Bromitron™ Corporation 1185 Bayshore Drive Englewood, Florida 34223 Phone: 1-(877)-BROMINE brominegenerators.com IMPORTANT: READ INSTRUCTIONS BEFORE USING...
-
Page 41: Bromicharge™ User Guide
in.clear user guide for BromiCharge ™ ™ Operation Instructions IMPORTANT: Read instructions before using. SPA BROMINE GENERATOR INSTALL AND OPERATION MANUAL The purpose of the in.clear™ water sanitation system for spas and hot tubs (with BROMITRON™ BROMINE GENERATOR technology) is to reliably and automatically maintain a halogen presence in a given recreational body of water, whether the hot tub owner remembers to treat the water, or not. - Page 42 in.clear ™ user guide for BromiCharge ™ Adding BromiCharge™ When you add BromiCharge™ to your spa, the TDS (Total Dissolved You will want to maintain a TOTAL TDS of 1600 to 1900 PPM in your Solids) of the water will increase about 1150 PPM (Parts Per Million) per spa for best performance based on the above example.
- Page 43 in.clear user guide for BromiCharge ™ ™ DIRECTIONS FOR USE For Spas ONLY (Not for swimming pool use) It is a violation of Federal Law to use this product in a manner inconsistent with its labeling. BromiCharge™ is designed to BromiCharge™...
- Page 44 in.clear ™ user guide for BromiCharge ™ It is important to empty the spa every sixty days. The in.clear™ water sanitation system (with BROMITRON™ BROMINE 1. Upon initial filling of your spa, allow the water to circulate for GENERATOR) is for spa use only and is not to be used in swimming one minute or so, before adding the BromiCharge™.
- Page 45 * BromiCharge™ is a trademarked product of the BROMITRON™ CORPORATION and is to be used only in the manner prescribed on the label. * In.clear™ is a brand name of Gecko Alliance Group.
- Page 46 in.clear ™ user guide for BromiCharge ™ MOST FREQUENTLY ASKED QUESTIONS Q 1- Does the BromiCharge™ evaporate? Q3 - When my in.clear™ water sanitation system (with BROMITRON™ BROMINE GENERATOR) is off does the A1- BromiCharge™ is only lost through splash out, leaks or BromiCharge™...
