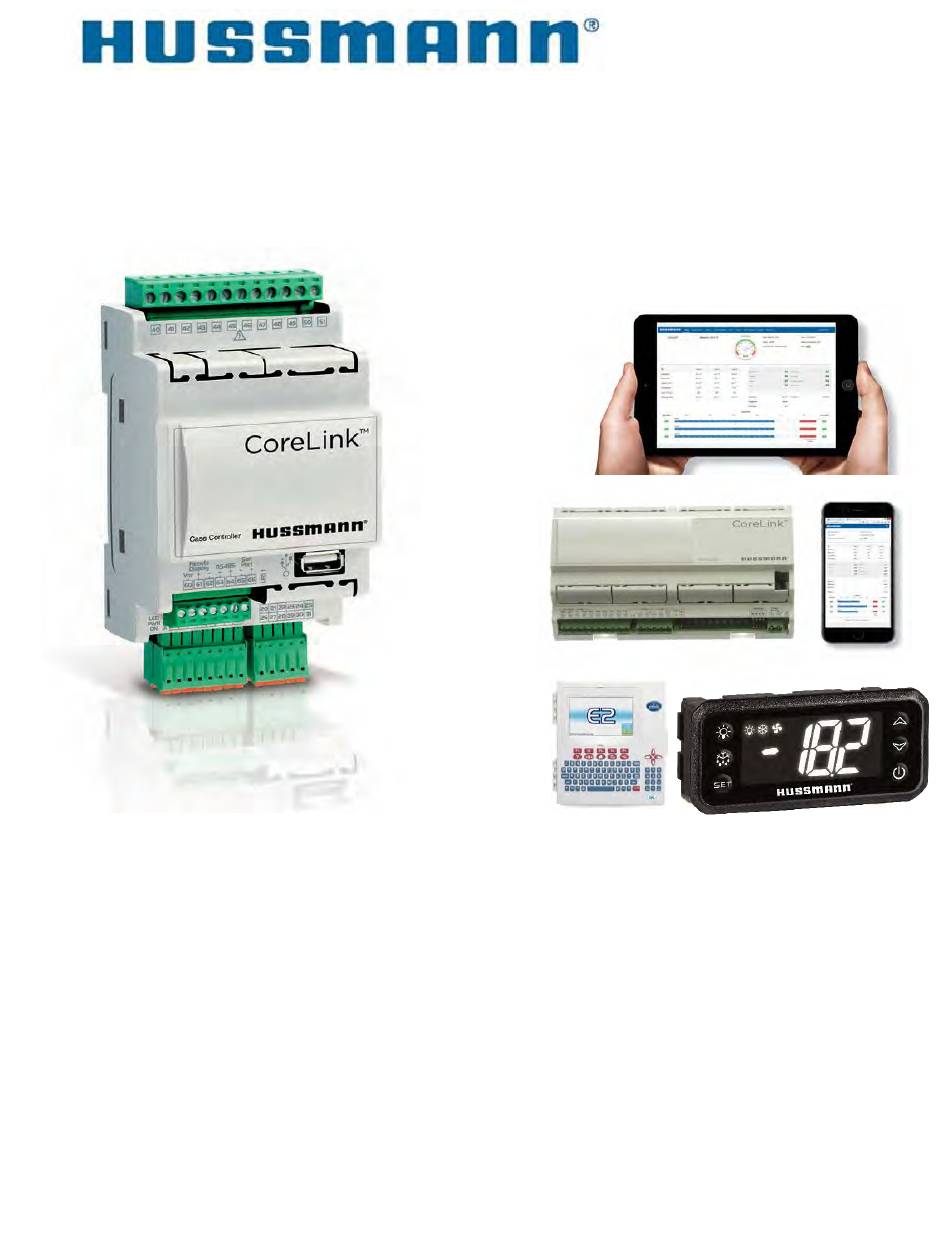

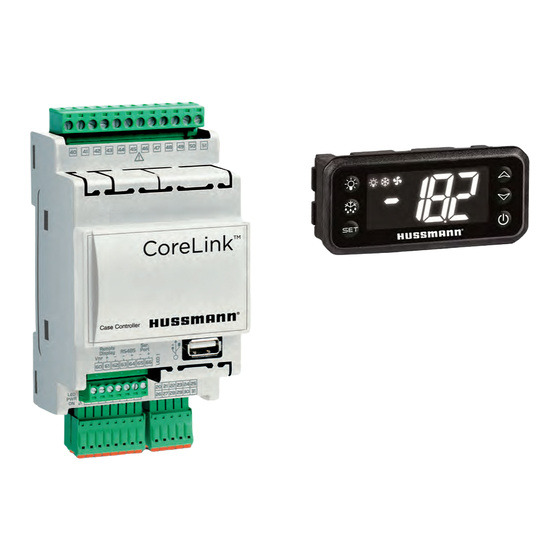

CoreLink
Electronic Display Case Controller
CoreLink – E2 Integration
Quick Start Manual
IMPORTANT
Keep with controller for
P/N 3128012_A
future reference!
July 2020
MANUAL SUPPLIMENT - CORELINK CASE CONTROLLER
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoreLink and is the answer not in the manual?

Questions and answers

Related Manuals for Hussmann CoreLink

Summary of Contents for Hussmann CoreLink

  • Page 1 ™ CoreLink Electronic Display Case Controller CoreLink – E2 Integration Quick Start Manual IMPORTANT Keep with controller for P/N 3128012_A future reference! July 2020 MANUAL SUPPLIMENT - CORELINK CASE CONTROLLER English...
  • Page 2 CoreLink SAFETY P/N 3128012_A...
  • Page 3 When used as designed, Hussmann believes that our products are not harmful. We provide the Proposition 65 warning to stay in compliance with California State law. ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 4 DEPARTMENT OF COMPUTER PROCESS CONTROLS/EMERSON/HUSSMANN. THE INFORMATION DOES NOT PERTAIN TO ALL FIRMWARE, SOFTWARE, AND/OR HARDWARE REVISIONS. THESE TIPS ARE PROVIDED AS A FREE SERVICE BY HUSSMANN AND NO ASSUMPTION OF ACCURACY OR LIABILITY SHOULD BE IMPLIED OR ASSUMED. TECHNICAL SUPPORT FOR TECHNICAL SUPPORT WITH CORELINK CONTACT: •...

  • Page 5: Table Of Contents

    Refrigeration configuration,C0: More : Refrigeration ............. 25 Defrost configuration setting, C7: Defrost ................27 5.7.1 How to Schedule A Defrost in connected CoreLink ..............28 Super Heat setting, C0: More: Superheat ................30 Valve Parameter, C0: More : Valve ..................31 ™...
  • Page 6 Antisweat config, C5: Antisweat ................... 39 5.16 Digital output, C3: Outputs – Out..................40 5.17 How to create CASE LIGHTS time schedule ................42 Troubleshooting E2-CoreLink Integration ................45 P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 7: Overview & Prerequisites

    Emerson E2 RX controller and CoreLink controllers at each case and/or walk in cooler/freezer. In the E2 programming, each CoreLink controller can be added via UltraSite or via the front E2 panel. The E2 can then be used to monitor the status of each case alarm, scheduling, and any other circuit level control value.

  • Page 8: Corelink - E2 Integration

    CoreLink 2. CoreLink – E2 Integration This section details the integration between the Hussmann CoreLink case controller and the Emerson E2 controller. This includes power wiring, network wiring, software connections, E2 description files, and E2 license keys. 2.1 Power Wiring In most cases it is the responsibility of the Electrical Contractor (EC) to install the power wiring for the cases and walk- ins as well as the Modbus and LAN communications cables.

  • Page 9: Network Wiring

    As per the site requirements, connect the max allowed CoreLink controller (Refer E2 manual for max number of CoreLinks ) to E2 through Daisy chain connection as shown below Daisy chain connection of CoreLink controllers to E2: ™...
  • Page 10 Figure (2.1) Figure (2.2) • The CoreLink – E2 connection is reverse polarity. The CoreLink RS485 Data “+ “ (Pin 64) connects to the red wire [Figure (2.1)]. This red wire connects to Data “–“ at the E2 RS485 COM2A [Figure (2.2)].

  • Page 11: Corelink To E2 Via Ultrasite

    (3 inches ideal maximum length). Alternatively, the last CoreLink in Network can be terminated by connecting a RS485 termination resistor of Value 150Ω across CoreLink Pin 63, 64 . RS485 termination block (Option) 150Ω...

  • Page 12: How To Upload Hussmann Description File To E2

    CoreLink 2.4 How to Upload Hussmann Description file to E2 2.4.1 Steps for Uploading description file • Select customer & expand E2 target • Right click E2 name • Select Upload Description File • Select Browse • Locate and highlight description file (5270551.dsc) provided.

  • Page 13: Reboot E2

    NOTE: AFTER LOADING DESCRIPTION FILE, E2 NEED TO BE RESTARTED AND ONCE THE E2 IS BACK TO OPERATION, CHECK THE UPLOADED DESCRIPTION FILE AS PER THE ABOVE SECTION. ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 14: How To Enter E2 License Key

    • From the E2 device or UltraSite Terminal Mode Right click E2 name & Select Terminal mode • Select Terminal mode and then select Login/Out • In E2, Enter Emerson provided Username and Password P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 15 P/N 3128012_A • Select Menu [Press : F9] • Select System Configuration [7] • Select Licensing [9] NOTE: PREVENT E2 OR CORELINK FROM BEING DROPPED , KNOCKED OR SHAKEN , AS THIS MAY CAUSE IRREPARABLE DAMAGE ™ CoreLink Case Controller...
  • Page 16 CoreLink • Select Add Feature [F1] • Enter License key (Send E2’s MAC address to Emerson to get License key) NOTE: SEND E2’S MAC ADDRESS TO EMERSON TO GET LICENSE KEY. CONTACT HUSSMANN ENGINEERING FOR DETAILS P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 17: How To Add Additional Corelink To E2

    CoreLink P/N 3128012_A 3. How to add additional CoreLink to E2 • From the E2 device or UltraSite Terminal Mode add controllers in E2 • Select Menu [F9] • In main menu F9 go to System Configuration [7] • Go to Network Setup [7]...
  • Page 18 • Select Next Tab [F2] or Ctrl-X (Ex:Ctrl4) until Third Party [C4] is highlighted CAUTION: FOR SAFETY PURPOSE, ALWAYS MAKE SURE THAT THE DEVICE IS SWITCHED OFF BEFORE TOUCHING ELECTRICAL CONNECTIONS P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 19: How To Address Corelink On E2 Device

    CoreLink P/N 3128012_A • Enter the number of CoreLink controllers being addressed (Quantity = number of controllers) • Select Home [F8] to save changes • Now the E2 is ready for the CoreLink integration 4. How to address CoreLink on E2 device •...
  • Page 20 • Network Summary [1] • in Network Summary, E2 unit name, Type, Network Address, Revision, and Status is available to be added. • From Network Summary screen, select one CoreLink controller and Select Commission [F4] • Select MODBUS network device •...
  • Page 21 CoreLink P/N 3128012_A in Select Network Type, select MODBUS network • • Enter designated MODBUS address for CoreLink controller and press Enter NOTE: DURING E2 NAVIGATION, PRESS MENU NUMBER OR SCROLL TO SELECTION ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 22 CoreLink • Enter designated MODBUS address for CoreLink controller and press Enter • Enter designated MODBUS address (eg:1) for CoreLink controller and press Enter P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 23 CoreLink P/N 3128012_A • Select Back [F10], to confirm specific CoreLink is online • Repeat the steps for Making all the CoreLink Online • Now the integration of CoreLink with E2 is completed. ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 24 4, but want to delete the 2 addressed controller, you must start from the network summary and delete the record of the # 2 CoreLink. Otherwise, simply going to the ECT tab and changing the quantity from 5 to 4 will delete CoreLink # 5.

  • Page 25: Initial Setting Confirmation For E2-Corelink

    Check the status page of E2 by pressing F4: status page NOTE: BEFORE ENABLING COMMUNICATION TO CONTROLLERS CONFIRM, CFGSYN ACTION SET AS “SEND DEVICE CFG TO E2” AND INITIAL SYNC SET AS “NO” IN EACH CORELINK APPLICATION. FAILURE TO DO SO CAN RESULT IN LOST PROGRAMMING! ™...
  • Page 26  Other sensor data NOTE: CHECK ALL THE PARAMETERS ARE GETTING UPDATED IN THE E2 ARE NOT. IF NOT CHECK THE POLARITY OF CONNECTION, CORRECT WIRING OR CORRECT MODBUS PARAMETERS P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 27: System Data : C0: More , System Data

    GAS Type Selection "R438A" LIGHT_UNITS Light measurement units 0, "FTC", 1, "LUX" 0, "Rem Std", 1, "Rem Dist", 2, "Self Cont", 3, CASE_TYPE Case Type Selection "Micro Dist" ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 28: Alarm Setpoints, C4: Alarmsetpts

    (0 to 300) sec Delay in seconds before the superheat alarm SHAlarmdly3 SH Alarm Delay 3 becomes active for coil three. (0 to 300) sec P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 29: Sensor Connection, C2: Outputs-In

    CoreLink P/N 3128012_A 5.5 Sensor connection, C2: Outputs-in Sheet#2 ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 30 ENABLEDI Shut down diital input MOTIONDI Light motion digital input COMP1DCHTEMPAI COMP2DCHTEMPAI COMP3DCHTEMPAI COMP1DCHPRESAI COMP2DCHPRESAI COMP3DCHPRESAI COMP1PRESSAFEDI COMP2PRESSAFEDI COMP3PRESSAFEDI CONDINLETTEMP CONDOUTLETTEMP HACCP SATURATIONTEMP CONDENSERFANOUT NIGHTCURTAINDO PRESSURE2 PRESSURE3 DEFRTERMTEMP2 DEFRTERMTEMP3 P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 31: Refrigeration Configuration,C0: More : Refrigeration

    5.6 Refrigeration configuration,C0: More : Refrigeration • Navigate to C0: More for refrigeration parameters to verify Setpoints, Dead Band, and control mode Refrigeration E2 Tab details Page #2 ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 32 CoreLink • Refrigeration setpoints of E2 parameter versus CoreLink parameters list to be verified. Check the following 28 Read/Write & 3 Write parameters. E2 Parameter CoreLink Parameter Description Range SETPOINT1 Temp Setpoint 1 Case Temp Setpoint 1 (-40 to 90) °F...

  • Page 33: Defrost Configuration Setting, C7: Defrost

    5.7 Defrost configuration setting, C7: Defrost • Navigate to C7 for the Defrost SETUP • Verify the E2 settings for Defrost Parameters, Defrost Durations, Input Selection, and Defrost Mode of E2 parameter versus CoreLink parameters list to be verified. E2 Parameter CoreLink Parameter...

  • Page 34: How To Schedule A Defrost In Connected Corelink

    • Navigate to CoreLink (Press Menu, F8 and select 1) • Enter Setup mode F5 • Navigate to Inputs-NET tab (C6) • Point the CoreLink’s DEFROSTINIT_NET parameter to E2: Standard Circuit name: Defrost P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 35 CoreLink P/N 3128012_A • Exit and Save changes to application • CoreLink should be visible in Standard Circuit Outputs tab • Repeat steps for other controllers ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 36: Super Heat Setting, C0: More: Superheat

    Max Valve Pos for Section 1 (0-100) % MAX_VALVEPOS2 Max Valve Position 2 Max Valve Pos for Section 2 (0-100) % MAX_VALVEPOS3 Max Valve Position 3 Max Valve Pos for Section 3 (0-100) % P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 37: Valve Parameter, C0: More : Valve

    CoreLink P/N 3128012_A 5.9 Valve Parameter, C0: More : Valve Sheet #2 ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 38 CoreLink Valve Parameters setpoints of E2 parameter versus CoreLink • Navigate to C0: More, then to Valve Parameters to verify 21 Read Write parameters as below CoreLink E2 Parameter Description Range Parameter Predefined valve selection for valve 13, "SporlSEH(I)175", 12, "SporlSEH(I)100", 11, "SporlSEI50", one.

  • Page 39: System Parameters, C0: More: Output - Sysd

    Direct output EEV driver valve 3 HSVD30_ONLINE XEV30K Online HSVD20_1_ONLINE XEV20Online_1 HSVD20_2_ONLINE XEV20Online_2 GLB_MAJ_BLD Major Build code GLB_MIN_BLD Minor Build Code GLB_REV_INFO Revision information CTRL STATUS CL_STATUS ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 40: Alarm List &Priority, C0: More, Alarms Outs

    • Navigate to C0: More and then to Alarm outs to check for all the Alarm outs per the list given below and check the assigned priority Page#2, Alarms Outs P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 41 Super Heat 2 High Alarm ON-OFF SH2_LO_ALM Super Heat 2 Low Alarm ON-OFF SH3_HI_ALM Super Heat 3 High Alarm ON-OFF SH3_LO_ALM Super Heat 3 Low Alarm ON-OFF ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 42: Override Selection, C9: Overrides

    Override menu is used to force override any controlled output that is connected to CoreLink. This forced state will only last for 15 minutes and CoreLink reverts to automatic control mode when the output is left overridden. Override options can be selected Off(0), ON(1), Auto(101) & Not in Over ride , •...

  • Page 43: Fan Setting, C8: Fans

    (1 to 30) After defrost and switching into refrigeration (0 to 30)x 10 FanTimeDelay Fan Delay mode, time before fans start. (Time Mode) Fan_Dual_Temp ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 44: Network Input Control, C6: Inputs-Net

    Network dewpoint DUALTEMPNETWORK Network dual temp ENABLENETWORK Network system enable PRESSURENETWORK1 Network pressure from E2 REFRIGDISABLNET Refrig disable network command if set to 1 LIGHTCONTROLNET Light control from system manager P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 45: Antisweat Config, C5: Antisweat

    Dew Setpoint. (0 to 20) °F ASWMax Max Output Maximum anti-sweat power output. (0 to 100) % ASWMin Min Output Minimum anti-sweat power output. (0 to 100) % ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 46: Digital Output, C3: Outputs - Out

    CoreLink 5.16 Digital output, C3: Outputs – Out: Details of digital output configuration Page#2 P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 47 Auxiliary 2 digital output DEFR2_DO Defrost 2 digital output DEFR3_DO Defrost 3 digital output REFRIG2_DO Refrigeration 2 digital output REFRIG3_DO Refrigeration 3 digital output NIGHTCURTAIN NIGHTCRTNANDLGT AUX3DO ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 48: How To Create Case Lights Time Schedule

    • Select Menu F9, in main menu, select 6, followed by 1 then F4: Lookup • Press 6 • Press 1 • Press F4 and select 27 for Time schedule P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 49 CoreLink P/N 3128012_A • Highlight the How Many? field and select “1”, press enter • Select “Y” to edit the application now ™ CoreLink Case Controller U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
  • Page 50 • For Event 2, type “OFF”, then arrow over 1 space and type off time • Schedule for days can be set by Arrow over to SMTWRFA1234 • Press the Next Key under S, then arrow over and repeat for M,T,W,R,F,A, P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...

  • Page 51: Troubleshooting E2-Corelink Integration

    There is a setting in CORELINK WebUI that controls whether evaporator fans are on or off in defrost. Go to CoreLink WebUI -> Config -> Fans-> set correct fan configuration Applicable versions CoreLink App Ver : 3.0.0 & 2.6.0 WebUI Ver : 2.0.0, 1.10.0 &...
  • Page 52 CoreLink P/N 3128012_A U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM...
