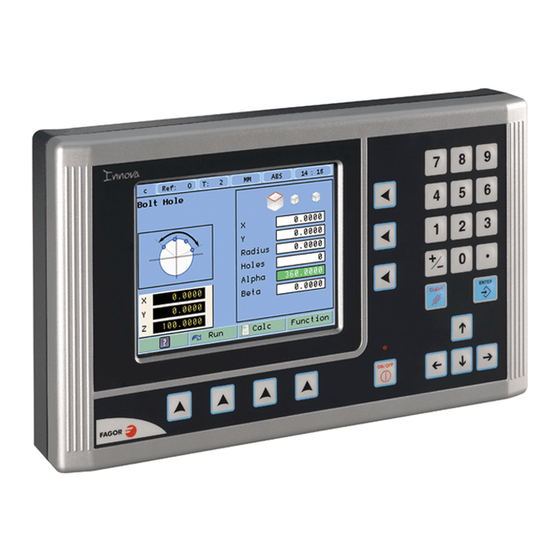

DRO Innova 40i / 40i-B
Quick Reference
This quick reference shows how to access the main functions shown by the color TFT screen of the DRO. Once
these functions are accessed, the DRO will guide the operator through its operations easily and intuitively with
interactive assistance messages.
For further detail on all the features, refer to the CD that comes with the DRO and contains the full installation
and operation manuals which are also available on our corporate website: www.fagorautomation.com.
Turning the DRO on and off
The DRO turns on automatically when applying voltage or after pressing the on/off key.
Front plate
TFT screen
Keys to open droplist buttons of the
Axis zero and preset
Pressing Set/Clear toggles between axis zeroing (Clear) and presetting (Set). The status bar shows the current
status of this function at the top left with the letters C or S.
Degrees < - > Degrees Minutes Seconds
Searching the center of a part
(
Manual code: 14460086 version: 1501)
Keys for axes
FUNCTION BAR
Cursor keys
Power-off button
Power indicator LED
Keys for entering numeric values
Validate
Abort
Advertisement
Table of Contents
Related Manuals for Fagor DRO Innova 40i
Summary of Contents for Fagor DRO Innova 40i
- Page 1 DRO Innova 40i / 40i-B Manual code: 14460086 version: 1501) Quick Reference This quick reference shows how to access the main functions shown by the color TFT screen of the DRO. Once these functions are accessed, the DRO will guide the operator through its operations easily and intuitively with interactive assistance messages.
- Page 2 DRO Innova 40i / 40i-B Manual code: 14460086 version: 1501) Main screen: Display units mm/inch Display mode: INC/ABS Here are the functions the machine Active reference Nr. operator can access from a main menu or Chronometer Set/Clear Active tool Nr.
