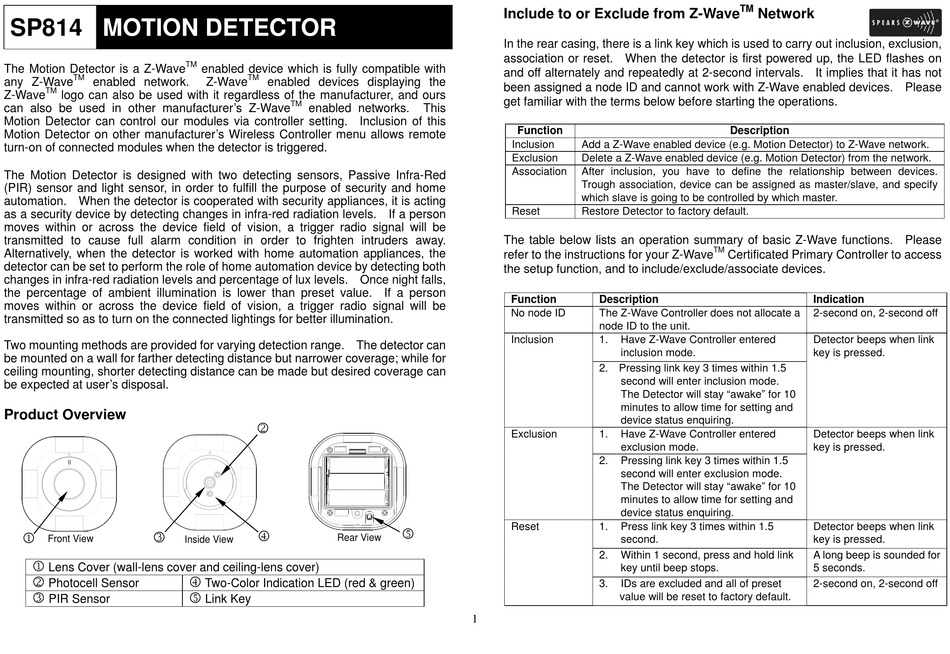

SP814 MOTION DETECTOR
The Motion Detector is a Z-Wave
TM
any Z-Wave enabled network.
TM
Z-Wave logo can also be used with it regardless of the manufacturer, and ours
can also be used in other manufacturer's Z-Wave
Motion Detector can control our modules via controller setting. Inclusion of this
Motion Detector on other manufacturer's Wireless Controller menu allows remote
turn-on of connected modules when the detector is triggered.
The Motion Detector is designed with two detecting sensors, Passive Infra-Red
(PIR) sensor and light sensor, in order to fulfill the purpose of security and home
automation. When the detector is cooperated with security appliances, it is acting
as a security device by detecting changes in infra-red radiation levels. If a person
moves within or across the device field of vision, a trigger radio signal will be
transmitted to cause full alarm condition in order to frighten intruders away.
Alternatively, when the detector is worked with home automation appliances, the
detector can be set to perform the role of home automation device by detecting both
changes in infra-red radiation levels and percentage of lux levels. Once night falls,
the percentage of ambient illumination is lower than preset value. If a person
moves within or across the device field of vision, a trigger radio signal will be
transmitted so as to turn on the connected lightings for better illumination.
Two mounting methods are provided for varying detection range. The detector can
be mounted on a wall for farther detecting distance but narrower coverage; while for
ceiling mounting, shorter detecting distance can be made but desired coverage can
be expected at user's disposal.

Product Overview

3
1
Front View
1
Lens Cover (wall-lens cover and ceiling-lens cover)
2
Photocell Sensor
3
PIR Sensor
TM
enabled device which is fully compatible with
TM
Z-Wave enabled devices displaying the
TM
enabled networks.
2
4
Rear View
Inside View
4
Two-Color Indication LED (red & green)
5
Link Key
Include to or Exclude from Z-Wave
In the rear casing, there is a link key which is used to carry out inclusion, exclusion,
association or reset. When the detector is first powered up, the LED flashes on
and off alternately and repeatedly at 2-second intervals. It implies that it has not
been assigned a node ID and cannot work with Z-Wave enabled devices. Please
get familiar with the terms below before starting the operations.
This
Function
Inclusion
Exclusion
Association
Reset
The table below lists an operation summary of basic Z-Wave functions. Please
refer to the instructions for your Z-Wave
the setup function, and to include/exclude/associate devices.
Function
No node ID
Inclusion
Exclusion
Reset
5
1
TM
Network
Description
Add a Z-Wave enabled device (e.g. Motion Detector) to Z-Wave network.
Delete a Z-Wave enabled device (e.g. Motion Detector) from the network.
After inclusion, you have to define the relationship between devices.
Trough association, device can be assigned as master/slave, and specify
which slave is going to be controlled by which master.
Restore Detector to factory default.
TM
Certificated Primary Controller to access
Description
The Z-Wave Controller does not allocate a
node ID to the unit.
1. Have Z-Wave Controller entered
inclusion mode.
2. Pressing link key 3 times within 1.5
second will enter inclusion mode.
The Detector will stay "awake" for 10
minutes to allow time for setting and
device status enquiring.
1. Have Z-Wave Controller entered
exclusion mode.
2. Pressing link key 3 times within 1.5
second will enter exclusion mode.
The Detector will stay "awake" for 10
minutes to allow time for setting and
device status enquiring.
1. Press link key 3 times within 1.5
second.
2. Within 1 second, press and hold link
key until beep stops.
3. IDs are excluded and all of preset
value will be reset to factory default.
Indication
2-second on, 2-second off
Detector beeps when link
key is pressed.
Detector beeps when link
key is pressed.
Detector beeps when link
key is pressed.
A long beep is sounded for
5 seconds.
2-second on, 2-second off
