Hobby King ORX TX10i Instruction Manual

Digital proportional radio control system 10 channel transmitter
Hide thumbs

Advertisement

Table of Contents

21cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORX TX10i and is the answer not in the manual?

Questions and answers

Summary of Contents for Hobby King ORX TX10i

  • Page 1 21cm...
  • Page 2 Introduction Thank you for purchasing our product, an ideal radio system for beginners or experienced users alike. Read this manual carefully before operation in order to ensure your safety and the safety of others or the safe operation of your system. If you encounter any problem during use, refer to this manual first.
  • Page 3 � Do not touc h any part of the model that may generate heat during operation. The engine, motors and s peed controller may be hot and cause injury. � Do not g ras p the transmitter's antenna during flight. It may be deg rade the quality of the radio frequenc y transmis sion.

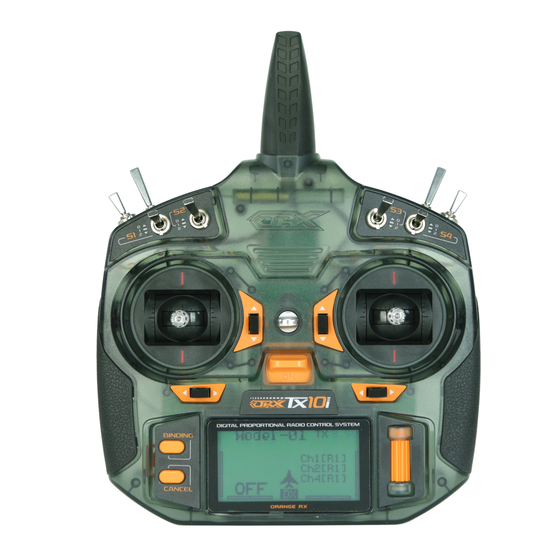

  • Page 4 Transmitter Overview Lanyard hook Throttle/Rudder Elevator/ Aileron Elevator trim Thro ttle trim Aileron trim Rudder trim Binding key Wheel Cancel key Power On/Off ----------------- Antenna ------Trainer port 1-------MicroUSB port =======- - Grip ----- Battery compartment Installation and removal of the transmitter battery The Tx10i transmitter is designed to work with four x (LR6) AA alkaline dry cell batteries ..
  • Page 5 Binding procedure 1. Initiate binding procedure on your receiver (depend s on the receiver used - bind plug, button, auto-bind. To see how to initiate binding on the receiver please refer to the receiver manual). 2. Press and hold the binding key and turn on the transmitter. (Or, turn on the transmitter, press and hold the wheel to enter the main menu to select model setup, then choose the bind menu to enter binding mode) .
  • Page 6 3. The system will display "RX Binding.:'. After successfully binding, the transmitter will automatically exit this binding menu. 4. If your receiver uses a bind plug for binding make sure you remove it after binding procedure. NOTICE: Remove the bind plug to prevent the system from entering bind mode the next time the power is turned on.

  • Page 7: End Points

    End points End points allow you to control the lower and upper travel limits for each servo. For each channel the user can set the lower and upper limits. Adjustment can be made for any channel. End points End points +100::-:: 100::-:: +100::-::...
  • Page 8 Dual rate/ exponential (exp.) Dual rate changes the servo travel for a control surface on RIC aircraft (Ailerons, Elevator and Rudder). Dual rate consists of Low rates and High rates. Low rates make the aircraft less responsive (i.e. easier to control), and High rates make the aircraft more responsive (i.e.

  • Page 9: Throttle Curve

    Main menu Servo setup Dual rate/exp. +Throttle curve Throttle cut Mixes Range test Setup: 1. Select "Throttle curve" in main menu. 2. Press the Roller button to select point L, 1, 2, 3, H. 3. Move the wheel left or right to change the point's value (position) on the graph. 4.
  • Page 10 Mixes This function is used to create a mix between channels. For example, if at low throttle some automated flap movement is desired, it is possible to create a mix to do this. Main menu Servo setup Dual rate/exp. Throttle curve Throttle cut +Mixes Range test...
  • Page 11 2.Press and hold the Binding key to activate Range test . Range test FULL POWER Press and hold the BINDING key to acti­ vate Range test.Dis­ tance 30 paces/ 30 meters. Timer This function is used to keep track of time in order to to reduce the risk of aircraft running out of battery/fuel and crashing.
  • Page 12 Up Mode: • Reset - Press and hold the cancel key to reset the timer if needed, then press the Roller button. • Thr. pos - Turn the Roller button to change the throttle trigger point. • Press and hold the Roller button to save and exit, or press the cancel key to exit without saving. Down Mode: •...
  • Page 13 • Reset Switch-Turn the Roller Button to reset the switch 1 to 8 or None to position up, middle or down. • Press and hold the Roller button to save and exit , or press the cancel key to exit without saving. Down and up Mode: •...
  • Page 14 This setting is used to sound an alarm when the receiver battery voltage drops dangerously low. =setup sensors= Alarm 4.3U 8. 1U BATT: This setting is used to sound an alarm when the voltage is out of range. =setup sensors= +BATT Min Alarm O.OU...
  • Page 15 Aux. channels This function allows users to set auxiliary channels. Every channel that is not assigned during the model setup will be set as an AUX channel. AUX channels can be used to control various extra features on an aircraft including landing gear, brakes, lights. Setup: 1.

  • Page 16: Model Setup

    Display Display Model Setup The Model setup function is used to set up, manage and delete models. Model Select: Selects a model from memory. 1. Use the wheel to select a memory slot for the model. 2. Press and hold the wheel to save and exit, or press the cancel key to exit without saving. Model setup +Model select Type select...
  • Page 17 Model Reset: Resets a model to factory default settings. 1 . Use the wheel to select a memory slot for the model. 2. Press the wheel to select and then move the wheel to select yes and press the wheel again. 3.
  • Page 18 Elevon: The elevon function is used for planes that combine the elevons and ailerons together. Setup: 1 . Use the wheel to enable the elevon function and press the wheel. 2. Use the wheel to set the first channel's position and press the wheel. 3.
  • Page 19 •Go to Flaperon section. • Sw: - enable and assign available switc h to turn flaperon On and O f f (Sw 1 .. Sw8). • A djust position o f ailerons in Flaperon mode setting percentage (-100%~+100%). • Positive percentage moves aileron in "flaps" position in one direction, while ne gative percentage moves them in opposite direction.
  • Page 20 Model setup Swashplate mix Adjust the motion range of the three inputs(aileron, elevator, pitch) to achieve the desired maneuverability. Refer to your model's manual to ensure the best results. This function is used to edit the pre-programmed mix control of the helicopter's aileron, elevator and pitch.

  • Page 21: Trainer Mode

    The function ensures a model will not fly until a switch has been toggled. Setup: 1. Use the wheel to assign a switch or toggle to ON (always ON) , then press the wheel. 2. Use the wheel to select a channel. 3.

  • Page 22: Lcd Brightness

    Student mode This function is used when another system is connected as a master (trainer). When this mode is active all settings will be bypassed and the system will only function through the master. Press and hold the wheel and move the wheel to select yes. =student mode= This wi 11 enter student mode...

  • Page 23: Firmware Ver

    System settings Firmware Ver. This function shows information about the transmitter 's currently installed firmware version. =Firmware ver. = ORX Tx10i 1.0 15-Jan-2018 Hardware lJ_1.5 Firmware update The function is for updating the system's firmware. Setup: 1. Download the latest firmware from www.hobbyking.com...

  • Page 24: Factory Reset

    RF module update This function is for updating the RF module. Setup: 1. Connect the system to your computer via USB cable. 2. Press the wheel, the system will show a prompt, "This will enter RF module update mode and halt other functions"...
