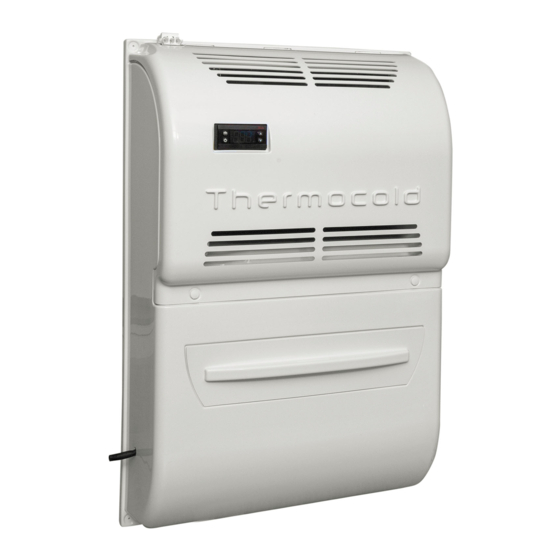

THERMOCOLD COOLING UNIT
TYPE: EC5, EC6, EC10
OPERATING AND INSTALLATION INSTRUCTION
ENGLISH
2
V.2.0
__________________________________________________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermocold EC5

Summary of Contents for Thermocold EC5

  • Page 1 ENGLISH www.thermocold.no THERMOCOLD COOLING UNIT TYPE: EC5, EC6, EC10 OPERATING AND INSTALLATION INSTRUCTION ENGLISH V.2.0 __________________________________________________________________________...

  • Page 2: Safety And Usage Advisory

    It must be submitted to an appropriate collection site for recycling EE waste (electric and electronic waste) • Contact Thermocold or the nearest service partner for any inquiries and issues with the cooling unit. • Do not destroy the cooling circuit where the coolant is circulating using a drill or cutting tool.
  • Page 3 • Do not use mechanical equipment or other means to increase the speed of the defrosting process other than such equipment recommended by Thermocold. Make an inquiry to Thermocold or a service partner if you are in doubt. • It is dangerous to expose the product to rain, snow and wind due to electrical safety.
  • Page 4 Thermocold KFD A/S’ liability does not cover: 1. Repairs / Actions taken by unauthorised personnel or non-original parts, and the assembly of the device in other installations or products Thermocold does not have control over. 2. Installation that does not comply with the local electrical safety authority's provisions and installation instructions.

  • Page 5: Table Of Contents

    ENGLISH www.thermocold.no Table of contents Safety and usage advisory ......................2 Buyer’s rights ........................... 6 Read before assembling the cooling unit ..................7 Energy saving and food storage ....................8 Adjusting the temperature of the cooling unit ................9 Dimensions and technical specifications EC 5, EC 6, EC 10 ............ 10 Cleaning and maintenance ......................

  • Page 6: Buyer's Rights

    In the event of flaws subject to sales legislation, Thermocold retains the right to repair the product within the deadline in accordance with the Sale of Goods Act.

  • Page 7: Read Before Assembling The Cooling Unit

    • Connect the plug and check that both the fans and the compressor are running normally. Thermocold cooling units are assembled from the refrigerated room side through the wall to the warm side. This provides much greater flexibility with regard to assembly solutions.

  • Page 8: Energy Saving And Food Storage

    As maintaining good hygiene in the room is important, the walls have a food-safe protective surface, reducing bacterial growth and making it easier to clean surfaces. A full overview of the storage of the most common products can be found on Thermocold’s website.

  • Page 9: Adjusting The Temperature Of The Cooling Unit

    ENGLISH www.thermocold.no Adjusting the temperature of the cooling unit The temperature can be set from 3 - 20 °C The operating display indicates the room’s air temperature. When setting 4°C, the displayed temperature will vary by +/- approx. 2.5°C Place a thermometer in a glass of water to measure the temperature of the food goods.

  • Page 10: Dimensions And Technical Specifications Ec 5, Ec 6, Ec 10

    NORW Dimensions and technical specifications EC 5, EC 6, EC 10 310mm Exhaust Intake Installation option 1 in example illustration Air is led through the plastic cover. EC 5 EC 6 EC 10 Light aperture in 440x480 440x480 440x480...

  • Page 11: Cleaning And Maintenance

    NORW Cleaning and maintenance The consumer is responsible for conducting cleaning and maintenance on the cooling unit. This is required to maintain warranty. Dust filter cleaning Clean the dust filter of the cooling unit every 3 months or more frequently where needed.

  • Page 12: Troubleshooting And Service

    - Thermocold KFD AS service department Tel. +47 69 10 24 00 - Local service partner/dealer: See the Thermocold website www.thermocold.no Have the serial number at hand. This can be found behind the dust filter drawer (point 2 under cleaning and...

  • Page 13: Equipment List Installation Option 1 - 6

    NORW Equipment list installation option 1 – 6 Type of Plastic cover / Metal air Ventilation Insulatin Air barrier Air barrier g strip cooling unit Plastic cover vent grates short long (240cm) for modular (55cm) Alt. 1 EC 6 / EC10 Alt.

  • Page 14: Installation Option 1 - Self-Assembled Cold Room With Plastic Cover

    2. The plug for the mains cable is installed outside the cold room. If it protrudes beyond the plastic cover, the mains cable must be fastened so that it cannot fall down into the condenser fan. 3. Build the cold room in accordance with prevailing laws and regulations. See the Thermocold website www.thermocold.no for tips and advice for construction.
  • Page 15 3. Build the cold room in accordance with prevailing laws and regulations. See the Thermocold website www.thermocold.no for tips and advice for construction.
  • Page 16 3. Build the cold room in accordance with prevailing laws and regulations. See the Thermocold website www.thermocold.no for tips and advice for construction.

  • Page 17: Installation Option 4 - Modular Cold Room, Free-Standing A/B

    NORW Installation option 4 – Modular cold room, free–standing A/B Detail Installation B / Plastic cover Installation A / Air vent for modular room 1. Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top of the cooling unit minimum 110 mm.

  • Page 18: Installation Option 5 - Modular Cold Room, Free-Standing A/B

    NORW Installation option 5 – Modular cold room, free–standing A/B 1. Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top of the cooling unit minimum 110 mm. Minimum air flow 200 cm²...

  • Page 19: Installation Alternative 6 - Corner Refrigerator With Air Vent

    NORW Installation alternative 6 – Corner refrigerator with air vent 1. Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top of the cooling unit minimum 110 mm. Minimum air flow 200 cm²...
  • Page 20 NORW __________________________________________________________________________...
