Duratuf KIWI MK3A Assembly Instructions Manual

Shed base size 3380mm x 2545mm
Hide thumbs

Advertisement

Quick Links

Download this manual
Quality – Built In
ASSEMBLY INSTRUCTIONS
MK3A
BASE SIZE 3380mm x 2545mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the MK3A and is the answer not in the manual?

Questions and answers

Related Manuals for Duratuf KIWI MK3A

Summary of Contents for Duratuf KIWI MK3A

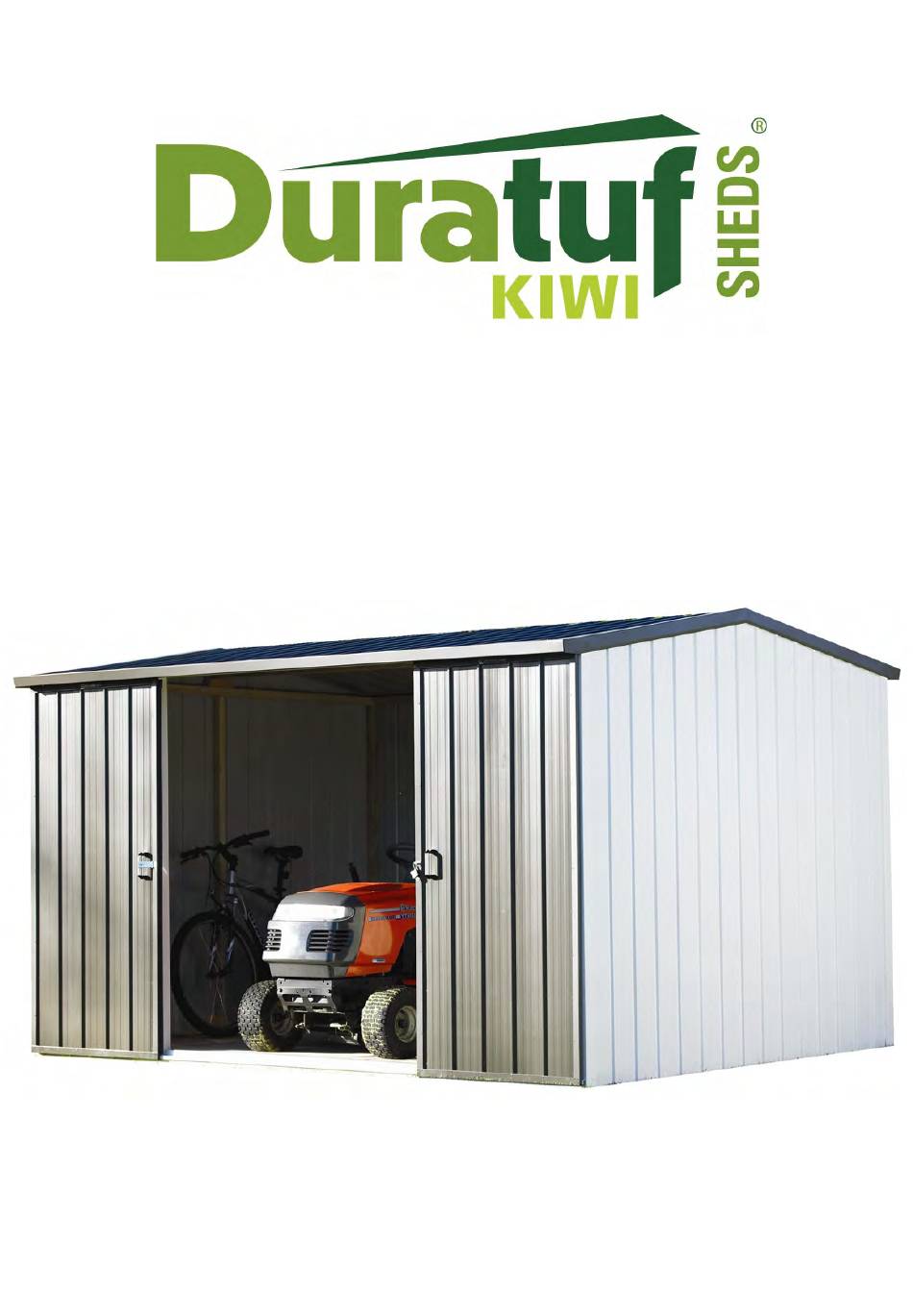

  • Page 1 Quality – Built In ASSEMBLY INSTRUCTIONS MK3A BASE SIZE 3380mm x 2545mm...
  • Page 2 ASSEMBLY INSTRUCTIONS • Tools Required: Drill • Drill Bit 3.5mm • Drill Bit 6mm (for clear roof panel only) • Hex Drive 5/16 • Riveter (free Duratuf riveter supplied in kit) • Hammer • Nail Punch • Tape Measure • Ladder or Saw stool •...
  • Page 3 KIWI MK3A PARTS LIST 2.080m Gable End Wall Sheets 1.890m Wall Sheets Door - Standard Security Instruction Booklet 0.200m Jack Studs - 45 x 45mm Hardware Pack Centre Door Stop Touch-up Paint & Brush Duratuf Riveter 2.830m Roof Sheets Flooring Nails...
  • Page 4 MK3A TIMBER FRAME 3380 1630 1900 (or 1870 for Raised Base Plate only) FRONT WALL 3380 1622 1622 1900 (or 1870 for Raised Base Plate only) BACK WALL...
  • Page 5 MK3A TIMBER FRAME Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro- trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15). Note: If fitting a window, there will be no centre stud on the window side.
  • Page 6 MK3A WALL CLADDING TO AVIOD CORROSION: • Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting. • Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel.
  • Page 7 MK3A WALL CLADDING Step 1: Front Wall: Start at the left hand side. Position the Wall Sheet with the LIP on the left hand side. Ensuring the LIP is flush with side of the Stud and the top of the Top Plate, tack in place.
  • Page 8 MK3A LOUVRE WINDOW (Optional) 588mm Step 1: Lay out the two window studs (883mm) and Nog Step 2: On the inside of the shed, position studs and (634mm) on a flat surface. Position Nog and nail Nog centrally on window opening. Make sure the in place using 2x 75mm nails at each end.
  • Page 9 (G100) with three rivets to each side of the Window Frame to hold glass in place. Pre- drilling Glazing Beads is recommended. MK3A DOOR JAMB & CORNER FLASHINGS Step1: Fit Door Jamb Flashing (104) in between Step2: Measure and cut Doorstep Flashing (B106) Top and Bottom Plates and hard against to fit in between Door Jambs.
  • Page 10 MK3A DOOR JAMB & CORNER FLASHINGS Step 3: Fit Corner Flashing (101) over corner Ribs with the top flush with the top of the Top Plate. Rivet in place with six rivets, three each side. Repeat with other three Corner Flashings. When fitting...
  • Page 11 MK3A CLEAR ROOF PANEL (Optional) Step 1: Leave a gap where the Clear Panel is to be fitted. Position the next Roof Sheet. Ensure it overlaps correctly, then rivet togeth- er, one rivet in the centre and one approximately 600 mm down from the centre on both sides. Fit remaining Roof Sheets, overlapping and riveting as you go.
  • Page 12 MK3A DOORS Step 1: Top Door Tracks: Mark the centre of the door- Step 2: Position right hand Door Track (B107) on way on the Overdoor Flashing. Position Centre front wall up against underside of Roof, with Door Stop on the front face of the Overdoor right hand end flush with the right hand cor- Flashing and up against the underside of roof.
  • Page 13 MK3A BARGE & SPOUTING Step 1: Position Barge Flashing (A102) on gable Step 2: Centralise Barge Flashing on gable end and ends. Position a Spouting (C103) and rivet rivet in place, one rivet into every second Rib. to the Barge Flashing at each end. Repeat Fit two rivets through top of Barge into Rib.
  • Page 14 MK3A FLOOR Step 4: Nail in each Floor Board, two 50mm nails in each end and two into Joists. Measure and cut Floor Flashing (A110) to fit in between Door Jamb Flashings and nail in place us- ing 50mm Clouts.
  • Page 15 MK3A HASP & STAPLE Using seven rivets attach hasp to Left Hand Door and the staple to the Right Hand Door as shown. RAISED FLOOR MODIFICATION For sheds being placed on a purpose built floor, (concrete, cobbles, ply etc.), the Wall Sheets will pro- trude 20mm below the Base Plate.

  • Page 16: Maintenance

    DURATUF PREMIUM SHED WARRANTY GUARANTEE TO CUSTOMER Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years. For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY. WARRANTY ON METAL CLADDING Riverlea Group Ltd guarantee that the metal roofing and wall cladding on Kiwi and Fortress Garden Sheds may be used in moderate and inland corrosion zones or areas where the first year mild steel corrosion rate is less than 200g/m2, and that in these conditions, they will not perforate due to corrosion within 30 years of date of manufacture.
