- Page 1 M100 - USB Cellular Adapter User Guide...
-
Page 2: Legal Information
® for a particular purpose are made in relation to the accuracy and reliability or contents of this document. Sevio reserves the right to revise this document or withdraw it at any time without prior notice. -
Page 3: Table Of Contents
Table of contents Legal information ............................. 2 Version History ..............................2 Table of contents ............................. 3 Safety ................................4 Regulatory Notices ............................6 Warranty ................................7 Care recommendations ........................... 7 General Description ............................8 Delivery Content .............................. 8 Product Identification and Version Information ................... 8 Mechanical Installation ........................... -
Page 4: Safety
Safety Important Safety Notes Warning! Read this user guide carefully before mounting, installing and operating the device. Warning! Do not operate the device in any environmental condition other than the ones it is designed for. Before using this device Read this manual completely and gather all information on the device. Make sure that you understand it fully. - Page 5 GSM specific safety Please read and follow the guidelines listed below. The precautions must be observed during all phases of the operation. Breaking these rules may be dangerous, illegal or affect performance of the unit and/or invalidate the unit’s approval and/or warranty. General Remember to follow any special regulations and warnings in force in any area and never use the unit whenever it’s forbidden to use it.
-
Page 6: Regulatory Notices
Regulatory Notices Simplified EU declaration of conformity Hereby, Sevio S.r.l. declares that the equipment is in compliance with EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at https://sevio.it. United States (FCC) The enclosed device complies with Part 15 of the FCC Rules. -
Page 7: Warranty
Do not use or store the device in dusty, dirty areas, connectors as well as other mechanical parts may be damaged. If the device is not working properly, contact the place of purchase, nearest Sevio ® distributor office or Sevio ®... -
Page 8: General Description

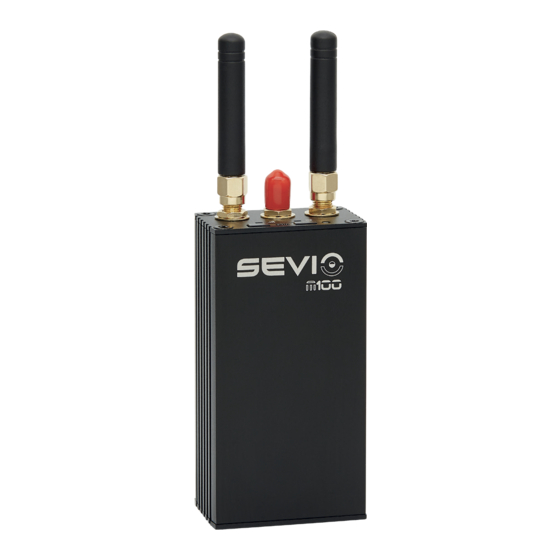

® Sevio M100 connects via a USB port and provides IP connectivity where other networks are missing or not usable. Furthermore a GNSS receiver provides a precise time source and location to the Sevio ®... -
Page 9: Mechanical Installation
Aluminum Weight 140 g Protection IP40 Note: Measurements are stated in millimeters Mechanical drawings files are available at https://sevio.it Environmental Operating temperature -20 °C to 65 °C Storage and transport temperature -40 °C to 85 °C Operating humidity 10% to 90% RH (non condensing) - Page 10 Mounting This device is equipped with a spring-loaded clip to hold the device on a standard 35 mm DIN rail. The device is intended to be mounted vertically. The top of the hook must first be set on the DIN rail. Then just press down (step 1) and at the same time rotate the device until it is flush with the rail (step 2).
-
Page 11: Electrical Installation
USB Connector USB B screw lock Cellular Interface ® Sevio M100 is a LTE category 4 module. It is optimized specially for M2M and IoT applications, and delivers 150 Mbit/s downlink and 50 Mbit/s uplink data rates. ® Sevio M100 is backward-compatible with 2G and 3G networks ensuring that it can be connected even in areas lacking 4G coverage. -
Page 12: Status
GNSS Receiver * Sevio ® M100 includes a fully integrated global navigation satellite system solution that supports Gen8C-Lite of Qualcomm (GPS, GLONASS, BeiDou, Galileo and QZSS). ® Sevio M100 supports standard NMEA-0183 protocol, and outputs NMEA sentences at 1Hz data update rate via USB interface by default. -
Page 13: Configuration
Configuration M100 is managed and configured by the router. Please refer to the router’s user manual for all the Sevio ® available settings and parameters. Sevio S.r.l. - Via Dei Caniana, 6/A, Bergamo - IT Tel. +39 0350514333 Customer service: support@sevio.it Sales department: sales@sevio.it...
