CPE70R quick Stat Guide
www.kuwfi.com mancy@kuwfi.com
KuWFi
Point-to-Point Bridge
Product picture

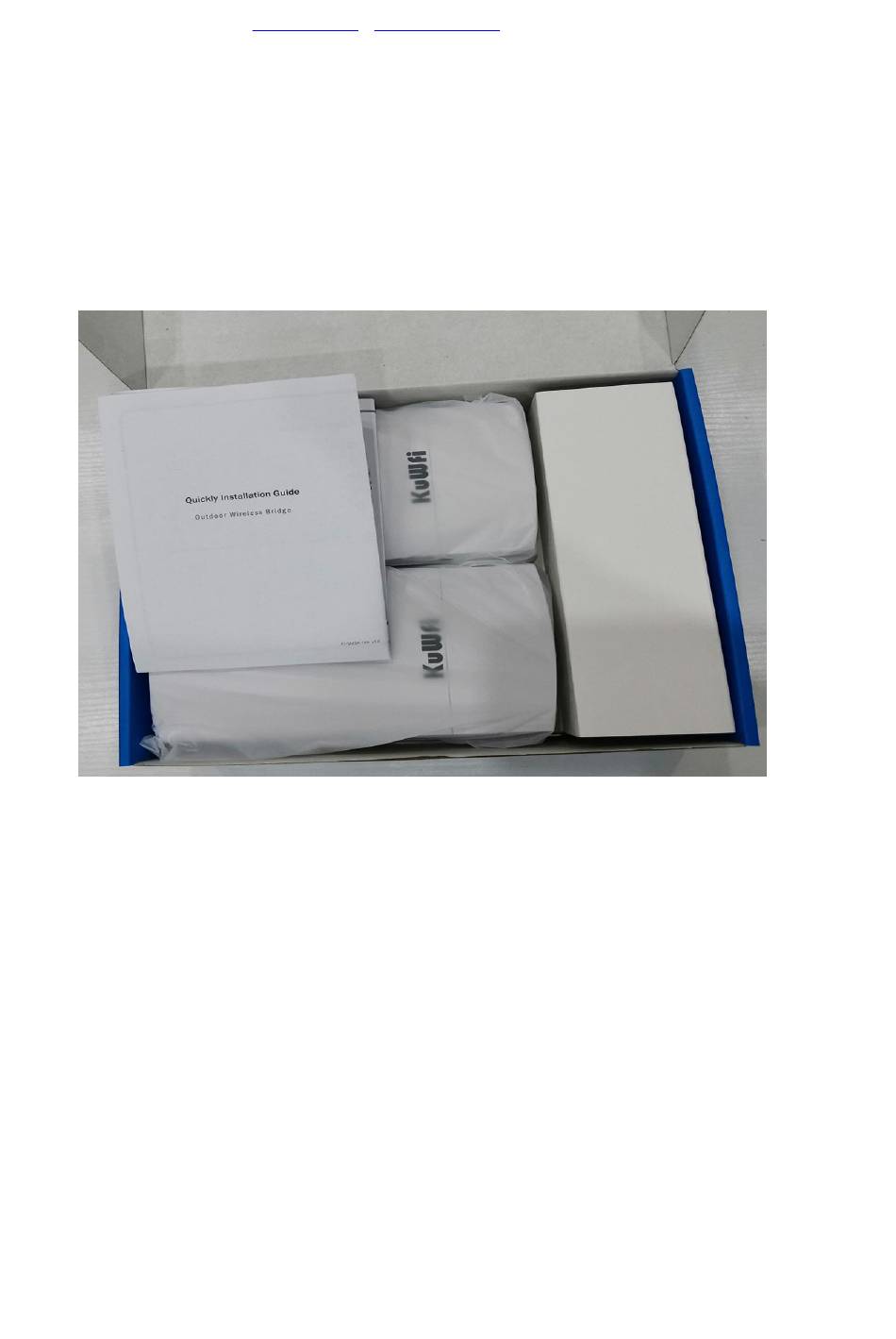

Pa c k a ge i n c l u d i n g
( P O E a d a p t e r w i l l b e o f fe r i n d i f fe r e n t co u n t r i e s )

Advertisement

loading
Need help?

Need help?

Do you have a question about the CPE70R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KuWFi CPE70R

  • Page 1 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com KuWFi Point-to-Point Bridge Product picture Pa c k a ge i n c l u d i n g ( P O E a d a p t e r w i l l b e o f fe r i n d i f fe r e n t co u n t r i e s )
  • Page 2 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Product body size :168mm*88mm*57.6mm  Working:-30°C~55°C  Storage:-40°C~70°C...
  • Page 3 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Interface :  10/100Mbps RJ45 WAN Port  10/100Mbps RJ45 LAN Port  LED display, show operation mode, channel, signal strength  F(Function) switch button for LED display  S(Select) button for LED display ...
  • Page 4 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com How to paired 1. Config Master/ Slave CPE Put the switch to H, CPE will work as Mast. Put the switch to C, CPE will work as Slave. 2.Config Master CPE When bridge two CPEs, make one work as master: press "F" to make H/ C b linking, and press "S"...
  • Page 5 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com H mean host/master 005 mean channel, C mean Client 005 mean slave  Channel , the two unit in the same channel ,host/master IP 192.168.188.  Slave IP 192.168.188.100...
  • Page 6 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Push and then pull the front cover out...
  • Page 7 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com...
  • Page 8 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Application 1 Long distance WiFi coverage .extend wifi signal from A house to B hous e,like below photo show...
  • Page 9 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com   POE adapter POE port connect to CPE Master Lan Port...
  • Page 10 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Use Ethernet cable connect LAN cable to POE adapter POE adapter. WAN port cannot charger power .
  • Page 11 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Mater/Host CPE Wan port connect to router / POE SWITCH ...
  • Page 12 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com...
  • Page 13 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Use Ethernet cable connect Lan cable to POE adapter POE adapter. Slave/ Host CPE Wan port connect to PC or ip camera or other wifi machine...
  • Page 14 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  The LED will show H005/C005 mean channel  H254 C100 mean IP address  P-25/P-23 mean wifi signal ,if no digital ,it mean no paired...
  • Page 15 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Then find network to setup the CPE Change network adapter settings, local Area connection...
  • Page 16 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Then click and choose properties...
  • Page 17 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Select use the following ip address...
  • Page 18 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com...
  • Page 19 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Input ip address 192.168.188.XX(xx from 1-251)then click Close...
  • Page 20 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Log in CPE70R mater web ui use, IE or firefox browser wrote 192.168.188.253 ,the the user name and password is admin  Update version come with AP+Repeater mode more stable...
  • Page 21  Change wifi ssid name password like below show Application 2 CPE are used for wireless video transmission with camera ( one place  with one place) Connect CPE70R Client to PC and power adapter as below photo show...
  • Page 22 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Connect CPE70R HOST/MASTER to power adapter as below photo show...
  • Page 23 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Set range between CPE70R host and CPE Client 500M-1000M, of this two CPE...
  • Page 24 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com Use Ethernet cable to connect wan port of CPE70R with IP camera ...
  • Page 25 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Use Ethernet cable to connect lan port to cpe70R client POE PORT of power adapter ,wan port connect IP camera...
  • Page 26 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com  Use Ethernet cable to connect lan port to cpe70R master POE PORT of power adapter ,wan port connect router...
  • Page 27 Use Ethernet cable to connect switch to CPE70r Client (C) Use Ethernet cable to connect lan port of CPE70R host (H) to POE port of POE adapter Use Ethernet cable to connect Wan port of CPE70R (H) to NVR/DVR Turn one all...
  • Page 28 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com The web UI show one paired to work (AP+repeater mode) the web UI Repeater mode WiFi SSID turned off by default. More Network topology show below...
  • Page 29 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com...
  • Page 30 CPE70R quick Stat Guide www.kuwfi.com mancy@kuwfi.com If you need any questions or problem please feel contact us , thanks...
