Ignition Co9 V2 LED Flood IP65 540W RGBW User Manual

Led floodlight
Hide thumbs Also See for Co9 V2 LED Flood IP65 540W RGBW:
Table of Contents

Advertisement

Quick Links

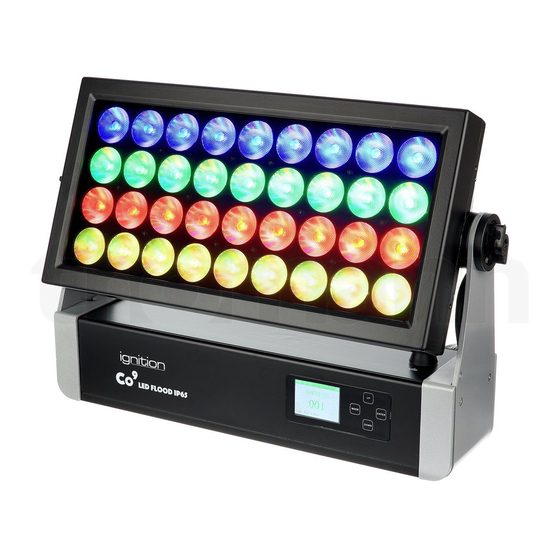

Co9 V2 LED Flood IP65
540W RGBW
LED floodlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Co9 V2 LED Flood IP65 540W RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ignition Co9 V2 LED Flood IP65 540W RGBW

Summary of Contents for Ignition Co9 V2 LED Flood IP65 540W RGBW

  • Page 1 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 22.04.2020, ID: 477576...

  • Page 3: Table Of Contents

    Starting up..............................23 Connections and controls........................26 Operating..............................30 7.1 Starting the device........................... 30 7.2 Main menu............................31 7.2.1 Operating mode ‘DMX’....................... 43 7.2.2 Operating mode ‘Slave’......................44 7.2.3 Operating mode ‘Stand-alone’....................44 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 4 7.9 Functions in 13-channel DMX mode..................54 7.10 Functions in 16-channel DMX mode..................60 7.11 Functions in 29-channel DMX mode..................62 Technical specifications........................70 Plug and connection assignments....................73 Troubleshooting............................74 Cleaning............................... 77 Protecting the environment......................78 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 6: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 7: Notational Conventions

    Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 8 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 9 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 10: Safety Instructions

    Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 11 Failure to do so may result in electric shock and risk of fire and loss of life. Before starting work on the electrical installation, the device must be turned volt- free. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 12 There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 13 Secure the barn door with a safety cable on the spotlight after installation. The safety cable must run outside the barn door and must not interfere with the light emission. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 14 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 15 PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 16: Features

    W-DMX module for wireless DMX control Barn doors, diffusion filter and two Omega brackets included Matching cases optionally available (2in1: Item no. 481159; 4in1: Item no. 481160; 6in1: Item no. 481161) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 17 UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due time. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 18: Installation

    Failure to do so may result in electric shock and risk of fire and loss of life. Before starting work on the electrical installation, the device must be turned volt- free. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 19 Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 20 For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 21 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 22 Installation 1 Quick lock openings for Omega brackets 2 Openings for safety cable Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 23: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 24 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 25 DMX output of the first slave unit to the DMX input of the second slave unit and so on. Please note that this device must not be connected to a dimmer. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 26: Connections And Controls

    Connections and controls Connections and controls Front panel Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 27 Navigates upwards in a menu list. Increases the displayed value by one. [DOWN] Navigates downwards in a menu list. Decreases the displayed value by one. [ENTER] Selects an option of the respective operating mode, confirms the set value. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 28 Connections and controls Rear panel Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 29 [POWER IN] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of the device [POWER OUT] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of another device Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 30: Operating

    The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off. If the DMX mode is set without a DMX signal being present, the display flashes. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 31: Main Menu

    Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘DMX Address’ ‘Set DMX address’ 001…512 Setting the DMX address ‘MODE’ ‘DMX Signal Select’ Selection of the DMX transmission type Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 32 3-channel DMX mode 1 ‘DMX 4Ch’ 4-channel DMX mode ‘DMX 6Ch’ 6-channel DMX mode ‘DMX 13Ch’ 13-channel DMX mode ‘DMX 16Ch’ 16-channel DMX mode ‘DMX 29Ch’ 29-channel DMX mode ‘Slave’ ‘Slave’ Operating mode ‘Slave’ Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 33 Setting the overall brightness ‘Strobe’ Strobe effect 0…5 Open strobe 6…10 Closed strobe 11…33 Random Pulse effect with increasing speed 34…56 Ramp-up effect with increasing speed 57…79 Random Ramp-down effect with increasing speed Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 34 251…255 Open strobe ‘Red’ 0…255 Intensity red (0 % to 100 %) ‘Green’ 0…255 Intensity green (0 % to 100 %) ‘Blue’ 0…255 Intensity blue (0 % to 100 %) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 35 0…5 Effect off 6…21 Rainbow effect 1 22…37 Rainbow effect 2 38…53 Fading green-orange 54…69 Pulse rod-orange 70…85 Pulse blue-white 86…101 Fading blue-yellow 102…117 Rainbow effect 7 118…133 Rainbow effect 8 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 36 198…213 Rainbow effect 13 214…229 Rainbow effect 14 230…255 Rainbow effect 15 ‘Auto’ Automatic show 0…5 No automatic show 6…30 Automatic show 1 31…55 Automatic show 2 56…80 Automatic show 3 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 37 Automatic show 8 206…230 Automatic show 9 231…255 Automatic show 10 ‘Speed’ 0…255 Running speed auto‐ matic show, increasing ‘Auto Fade’ 0…255 Fade speed for auto‐ matic shows ‘Colour Macro’ Pre-defined colour ‘Red’ Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 38 Menu level 4 Meaning ‘Amber’ Amber ‘Yellow Warm’ Yellowish-amber coloured ‘Yellow’ Yellow ‘Green’ Green ‘Turquoise’ Turquoise ‘Cyan’ Cyan ‘Blue’ Blue ‘Lavender’ Lavender ‘Mauve’ Mauve ‘Magenta’ Magenta ‘Pink’ Pink ‘Warm White’ Warm white Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 39 On, display is rotated by 180° ‘OFF’ Off, normal display ‘Display’ Automatic display shutdown when not in use ‘ON’ Enabled ‘OFF’ Disabled ‘DMX Fail’ Device behaviour on DMX signal failure ‘Hold’ Retaining last settings ‘Blackout’ Blackout Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 40 Dimmer characteristic ‘LED’ Dimmer characteristic ‘LED’ (3 s delay) ‘Halogen’ Dimmer characteristic ‘Halogen’ (5 s delay) ‘White Balance’ White balance ‘Red’ 0…255 Red proportion ‘Green’ 0…255 Green proportion ‘Blue’ 0…255 Blue proportion Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 41 ‘Reset Wireless DMX ‘No’ The wireless DMX con‐ Memory’ nection is not getting reset ‘Yes’ The wireless DMX con‐ nection is getting reset ‘Test’ Automatic self test ‘OFF’ Turned off ‘ON’ Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 42 To unlock the keys, press successively [ENTER], [UP], [DOWN], [UP], [DOWN] and [ENTER]. ‘System Info’ ‘Firmware’ Show firmware version of the device ‘Temperature’ ‘LED Temp’ Show device temperature ‘Temp Unit’ Unit selection for device temperature ‘Celsius’ Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 43: Operating Mode 'Dmx

    In DMX mode, the display shows the set DMX mode in its top row and the DMX start address set in the lower part. The display flashes if no DMX signal is received. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 44: Operating Mode 'Slave

    ‘Operating Mode: AUTO Jumping’ : Automatic Jump effect ‘Operating Mode: STATIC’ : Freely mixable colour with optional rainbow and stroboscopic effect or automatic show ‘Operating Mode: Color Macro’ : Selecting a pre-defined colour macro Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 45: Menu Overview

    Operating 7.3 Menu overview Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 46 Operating Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 47: Functions In 2-Channel Dmx Mode

    7.4 Functions in 2-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) Colour macro 0…5 Blackout 6…13 14…21 Amber 22…29 Yellowish-amber coloured 30…37 Yellow 38…45 Green 46…53 Turquoise 54…61 Cyan 62…69 Blue Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 48 Lavender 78…85 Mauve 86…93 Magenta 94…101 Pink 102…109 Warm white 110…117 White 118…125 Cold white 126…127 Colour change halted 128…191 Colour change effect, increasing speed 192…255 Colour transition effect, increasing speed Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 49: Functions In 3-Channel Dmx Mode 1

    Dimmer (0 % to 100 %) Stroboscope functions 0…5 Open strobe 6…10 Closed strobe 11…250 Strobe effect with increasing speed 251…255 Open strobe Colour macro 0…5 Blackout 6…13 14…21 Amber 22…29 Yellowish-amber coloured Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 50 Value Function 30…37 Yellow 38…45 Green 46…53 Turquoise 54…61 Cyan 62…69 Blue 70…77 Lavender 78…85 Mauve 86…93 Magenta 94…101 Pink 102…109 Warm white 110…117 White 118…125 Cold white 126…127 No function Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 51: Functions In 3-Channel Dmx Mode 2

    7.6 Functions in 3-channel DMX mode 2 Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 52: Functions In 4-Channel Dmx Mode

    Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 7.8 Functions in 6-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) Stroboscope functions 0…5 Open strobe Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 53 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 54: Functions In 13-Channel Dmx Mode

    57…79 Random Ramp-down effect with increasing speed 80…102 Random strobe effect with increasing speed 103…127 Strobe-burst effect with decreasing duration of interruptions 128…250 Strobe effect with increasing speed 251…255 Open strobe Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 55 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Colour macro 0…5 Blackout 6…13 14…21 Amber 22…29 Yellowish-amber coloured 30…37 Yellow 38…45 Green 46…53 Turquoise 54…61 Cyan Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 56 Magenta 94…101 Pink 102…109 Warm white 110…117 White 118…125 Cold white 126…127 No function 128…191 Colour change effect, increasing speed 192…255 Colour transition effect, increasing speed Rainbow effect 0…5 Effect off Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 57 86…101 Fading blue-yellow 102…117 Rainbow effect 7 118…133 Rainbow effect 8 134…149 Rainbow effect 9 150…165 Rainbow effect 10 166…181 Rainbow effect 11 182…197 Rainbow effect 12 198…213 Rainbow effect 13 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 58 Automatic show 2 56…80 Automatic show 3 81…105 Automatic show 4 106…130 Automatic show 5 131…155 Automatic show 6 156…180 Automatic show 7 181…205 Automatic show 8 206…230 Automatic show 9 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 59 Special functions. Settings are enabled or retained if the corresponding DMX value is held for five seconds. 0…5 No function 6…63 Dimmer characteristic ‘LED’ (3 s delay) 64…127 Dimmer characteristic ‘Halogen’ (5 s delay) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 60: Functions In 16-Channel Dmx Mode

    Intensity white (0 % to 100 %), LED row 1 0…255 Intensity red (0 % to 100 %), LED row 2 0…255 Intensity green (0 % to 100 %), LED row 2 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 61 Intensity green (0 % to 100 %), LED row 4 0…255 Intensity blue (0 % to 100 %), LED row 4 0…255 Intensity white (0 % to 100 %), LED row 4 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 62: Functions In 29-Channel Dmx Mode

    57…79 Random Ramp-down effect with increasing speed 80…102 Random strobe effect with increasing speed 103…127 Strobe-burst effect with decreasing duration of interruptions 128…250 Strobe effect with increasing speed 251…255 Open strobe Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 63 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Colour macro 0…5 Blackout 6…13 14…21 Amber 22…29 Yellowish-amber coloured 30…37 Yellow 38…45 Green 46…53 Turquoise 54…61 Cyan Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 64 Magenta 94…101 Pink 102…109 Warm white 110…117 White 118…125 Cold white 126…127 No function 128…191 Colour change effect, increasing speed 192…255 Colour transition effect, increasing speed Rainbow effect 0…5 Effect off Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 65 86…101 Fading blue-yellow 102…117 Rainbow effect 7 118…133 Rainbow effect 8 134…149 Rainbow effect 9 150…165 Rainbow effect 10 166…181 Rainbow effect 11 182…197 Rainbow effect 12 198…213 Rainbow effect 13 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 66 Automatic show 2 56…80 Automatic show 3 81…105 Automatic show 4 106…130 Automatic show 5 131…155 Automatic show 6 156…180 Automatic show 7 181…205 Automatic show 8 206…230 Automatic show 9 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 67 Special functions. Settings are enabled or retained if the corresponding DMX value is held for five seconds. 0…5 No function 6…63 Dimmer characteristic ‘LED’ (3 s delay) 64…127 Dimmer characteristic ‘Halogen’ (5 s delay) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 68 Intensity red (0 % to 100 %), LED row 3 0…255 Intensity green (0 % to 100 %), LED row 3 0…255 Intensity blue (0 % to 100 %), LED row 3 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 69 Intensity green (0 % to 100 %), LED row 4 0…255 Intensity blue (0 % to 100 %), LED row 4 0…255 Intensity white (0 % to 100 %), LED row 4 Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 70: Technical Specifications

    Voltage supply Power Twist IP65 DMX control XLR chassis socket, 3-pin, IP65 version Output connections Voltage supply Power Twist IP65 DMX control XLR chassis socket, 3-pin, IP65 version Power consumption 500 W Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 71 Dimensions (W × H × D) 515 mm × 312 mm × 226 mm (panel horizontal) Weight 13.3 kg Ambient conditions Temperature range –20 °C … +40 °C Relative humidity 50 %, non-condensing Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 72 Technical specifications Further information Outdoor housing shape Flood light Colour mixture RGBW LED type x-in-1 Floor housing Fanless Remote control Not possible Wireless DMX Housing colour black Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 73: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 74: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 75 DMX interface circuit. 4. Press Mode until the display shows ‘ADDRESS XXX’ . 5. Check whether ‘DMX’ (with wired connection) is selected in the ‘DMX Signal Select’ menu. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 76 G5, G4S or G3 mode (if possible). Please note that the W-DMX must be reset on all devices after changing the transmitter. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 77: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...

  • Page 78: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Co9 V2 LED Flood IP65 540W RGBW LED floodlight...
  • Page 80 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
