Summary of Contents for Ignition Strip Blinder X
- Page 1 U S E R M A N U A L Strip Blinder X...
- Page 2 S T R I P B L I N D E R X Table of contents Safety instructions ..............Fehler! Textmarke nicht definiert. 1.1. FOR SAFE AND EFFICIENT OPERATION ..... Fehler! Textmarke nicht definiert. 2 / 2...
-
Page 3: Safety Instruction
1.1.1. Use of the item as intended • The Strip Blinder X is designed for use on stages, in discotheques and for architectural illumination. The device is approved only for a connection up to a maximum of 230 V AC, 50Hz. -
Page 4: Overhead Rigging
S T R I P B L I N D E R X • Power cable, never pull the power cable to remove the plug from the receptacle, be sure to hold the plug. When not using the device for an extended period of time, be sure to disconnect the plug from the receptacle. -
Page 5: Power Connection
S T R I P B L I N D E R X A CAUTION When rigging the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 1.5 m. Mount the projector with the mounting-bracket to your trussing system using an appropriate clamp. During overhead installation the projector must be always secured by a safety rope which is designed to hold the twelvefold weight of the device. -
Page 6: Front Components

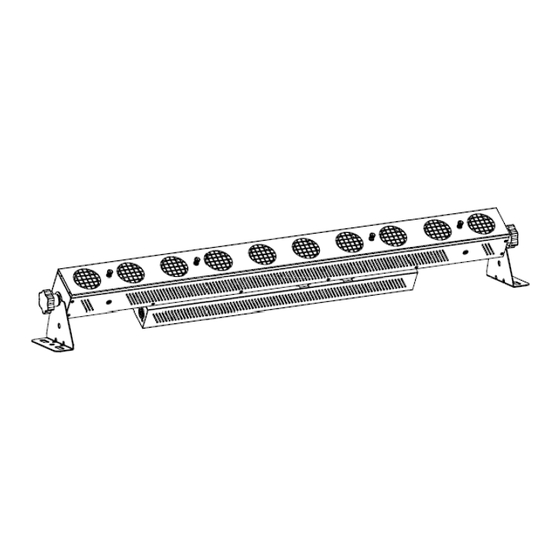

Congratulations to your purchase and thank you for selecting one of our products. Strip Blinder X is a powerful silent lighting device with 10 pcs. conventional Warm White lamps, GU10 230/75W. For successful installation and secure operation please read the user manual before starting operating with the device. -
Page 7: Side Components
S T R I P B L I N D E R X 3.2. SIDE COMPONENTS Ref. Component Description Two parts aluminum housing. Main housing storing the 10pcs GU10 Housing lamps. DMX in The connector sending signal to the device. XLR 3-PIN Neutrik, Power in AC 230V –... -
Page 8: Operation Modes
S T R I P B L I N D E R X 4. OPERATION MODES The device operates in two operating modes, DMX Mode and Chase Mode. 4.1. DMX MODE 4.1.1. Selecting DMX Mode If letter "A" appears, means that DMX address and shows that the A 001 DMX Mode has been activated. -
Page 9: Selecting The Program
S T R I P B L I N D E R X 4.2.1. Selecting the Program Tap the “Mode” button, "P" is shown, it indicates that Chase Mode is P:01 activated. Selecting Program: Tap “Up ” or “Down ” you can enter Mode Menu program 01 to 16 and Auto and Full. -
Page 10: Product Features
S T R I P B L I N D E R X 5. PRODUCT FEATURES Type Item Number Strip Blinder X Optical System Optics Beam angle 30° LED source of light Lamps 10PCS × GU10 230V/75W Colors Warm white... - Page 11 S T R I P B L I N D E R X Importer: B&K Braun GmbH Industriestraße 1 D-76307 Karlsbad-Ittersbach www.bkbraun.com info@bkbraun.com 11 / 11...
