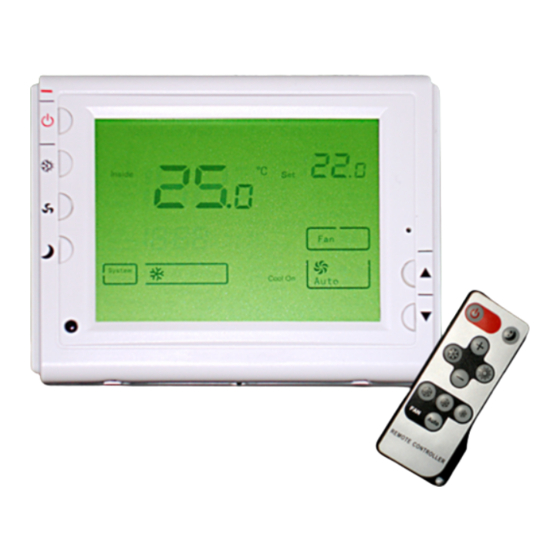

- Page 2 ONX908MTW-0/24V MULTI STAGE THERMOSTAT Application: 24VAC，2Heat/2cool Installation and operation instructions PECIFICATION: Electrical Rating…………………… 24VAC Terminal Load……………………… 3.0 A per terminal (terminal Y1, W1, G: 5A) Set point Temperature Range……….. 5℃ to 35℃ 115mm×90mm ×28mm Dimensions………………………… Color……………………………….. White EATURE: Large LCD display with backlight Set points and room temperature display simultaneously Maintains the temperature within the range of 0.5℃...
- Page 3 (1) Power button (11) Heat on shows when the thermostat is calling for heat (2) System switch (HEAT, COOL) (3) Fan switch (AUTO, ON) Cool on shows when the thermostat (4) Sleep operation button is calling for cool. (5) ▲ Raises Temperature setting (12) 1: Shows when thermostat is in the 1st (6) ▼...
- Page 4 CHECK THERMOSTAT OPERATION Switch on the thermostat should stop operating. Fan operation Cooling system operation Set fan button to On or Auto Auto is the most commonly selected 1. Press system switch to cool mode ( 2. Press ▼ to adjust thermostat setting below setting and runs the fan only when the heating or cooling system is on.
- Page 5 CONFIGURATION The configuration menu allows you to set certain thermostat operating characteristics to your system or ④ personal requirements. Switch off the thermostat and hold the sleep operation Button for over 3 second till power on again means you have entered the first configuration menu item. There are 6 menu items. Press ④...
