Summary of Contents for Whirlpool BYCCD3421W0
-

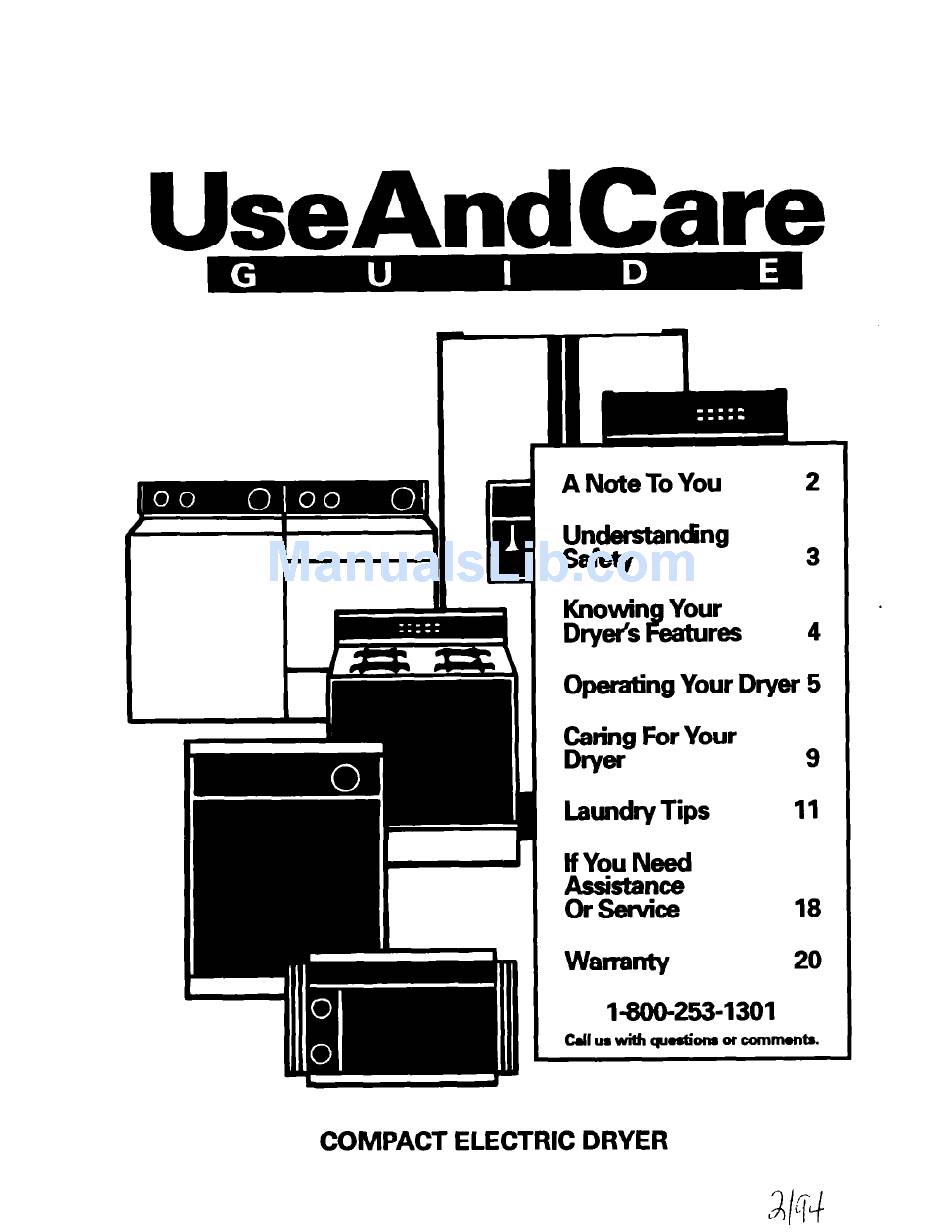

Page 1: Table Of Contents
UseAndCare COMPACT ELECTRIC DRYER A Note To You Knowin Your Dryefs lsatu res Operating Your Dryer 5 &Zg F0r Your Laundry Tips y&zne orsenke Warranty 1-800-253-1301 cdl us with questions or commonb. -
Page 2: A Note To You
A Note To You Thank you for buying this You have purchased a quality, worldGiless home appliance. Years of engineering experience have gone into its manufacturing. Use this Use and Care Guide to safely and efficiently operate and maintain your appliance. Complete and mail the Ownership Registration Card provided with your appliance. -
Page 3: Safety Instructions
IMPORTANT SAFETY To reduce the risk of fire, electrical shock, or injury to persons when using your dryer, follow basic precautions, including the following: Read all instructions before using your dryer. Do not machine wash or machine dry items cleaned, washed, soaked in, or spotted with wax, paint, gasoline, oil, dry cleaning solvents, and other flammable fluids. -
Page 4: Knowing Your Dryer's Features
Knowing Your Dryer’s Features The parts and features of your dryer are illustrated below. Become familiar with all parts and features before using your dryer. Optional mounting kits You can mount your compact dryer above your compact washer using one of the following: Dryer Stand Kit for permanent installation, secured to the wall. -
Page 5: Operating Your Dryer
Operating In This Section Botoro l ....... . . 5 brting your &yr Starling... -
Page 6: Selecting A Cycle
Selecting a cycle Use pages 6 to 6 to find information about drying cycles that may be on your model. To Select a cycle: 1. Turn the Cycle Control Knob either way to a desired time or setting. 2. Stop when the indicator points to the cycle you want. - Page 7 Using the Perm. Press /Reg. cycle Use the Pen. Press/Reg. cycle to dry permanent press and some synthetic fabrics. Your dryer senses the dryness of the load and automatically shuts off when the selected dryness is reached. For the first few loads: 1.
- Page 8 Selectina riaht cvcle -----” _--_ --w--- , --- TYPE OF LOAD COTTONS AND LINENS Extra Heavy-Sedspreads, mattress pads, quilts Heavyweight-Towels, jeans, corduroys, work clothes MediumweightSheets, cotton underwear, diapers Lightweight-Satistes, organdies, lingerie PERMANENT PRESS, SYNTHETICS AND BLENDS Heavyweight-Work clothes, jackets, raincoats Mediumweight-Shirts, play clothes, sheets, slacks...
-
Page 9: Caring For Your Dryer
Caring For Your Dryer In Thi8 Section tmd ..I_...-I...u... 0 Mminbnma-wwy Dryers require regular maintenance. Follow the suggestions below to maintain your dryer property. Maintenance-every Cleaning the lint screen The lint screen is located inside the dryer drum, on the back wall. Cken Y beton Kurd. -
Page 10: Cleaning The Dryer Interior
Cleaning the dryer interior Garments which contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. If you want to remove stains from dryer drum, use powdered laundry detergent. 1. Make a paste with detergent and very warm water. -
Page 11: Laundry Tips
Laundry Tips In This Section Befor. you dry I ... Drying spocklcuo itmms ... Using byw fabrk softmus saving mergy This section reviews proper drying techniques, gives you additional drying information, and discusses causes or solutions to common drying problems. Before you dry Before using your dryer, see page 3 for... -
Page 12: Drying Special-Care Items
Drying special-care Most garments and household textiles have care labels with laundering instructions. Always follow label directions when they are available. General drying instructions for some special washables are included in this section. Alr drying Heat sensitive fabrics, plastic, rubber or some stuffed items require drying (heat sensitive without heat. - Page 13 Blankots Machine drying knitted woolens is not recommended. Block to shape lnooknr when wet and allow to air dry. Line dry blankets in shade on a breezy day over two lines. Pin edges together and straighten them. When partly dry, turn the blanket over, repin and restraighten. When dry, brush nap. 1 Cotton, rayon, Dry as recommended for permanent press fabrics on page 8.
- Page 14 FIrme Some items have been treated with a flame-retardant finish to improve retardant their resistance to burning. Such items are clearly labeled. To retain flame- flnlshos retardant qualities through continuous use and washing, clean and dry according to the manufacturets Nap-d Items Dry separately or with similar colors to avoid lint transfer.
-
Page 15: Saving Energy
Using dryer fabric Dryer fabric softeners are recommended for reducing static cling (static can also be re- duced by not overdrying) and for softening fabrics. Always follow package instructions carefully. Put fabric softener sheet on top of the load before starting the dryer. Do not add a fabric softener sheet attu the cycle has started. - Page 16 Solving laundering Most laundering problems are easily solved. Check the following list for problems you may have and possible causes. If you need additional help, check the “Assistance or Service” section of this book. PROBLEM CHECK IF Greasy Dryer fabric softeners spots were used Undiluted washer fabric...
- Page 17 PROBLEM CHECK IF shrlnklng Items are overdried Fabric type and quality is suitable for drying Slow drying There is a large amount of moisture in the load to be dried Cofd rinse water is used Room air temperature is below 45°F (7°C) Dryer is exhausted according to Installation Instructions Lint screen is full...
-
Page 18: If You Need Assistance Or Service
If You Need Assistance Or Service 1. Before calling for assistance Is the power cord plugged in? E9 - Is lint screen clogged with lint? Is exhaust duct or outside exhaust hood clogged with lint? •al - Have you blown a fuse or tripped the circuit breaker’? If you need more help, check the chart below. - Page 19 2. lf you need assistance Call our Consumer As&dance Center telephone number. Dial toll-free from anywhua In the U.S.A.: l-500-253-1 301 and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recom- mend a qualified service company in your area.
-
Page 20: Dryer Warranty
Dryer Warranty LENGTH OF WARRANTY: FULL ONE-Y EAR WARRANTY (from date of purchase) WHAT WE WILL NOT PAY FOR: A. Service calls to: 1. Correct the installation of your dryer. 2. Instruct you how to use your dryer. 3. Replace house fuses or correct house wiring or plumbing. 4.
