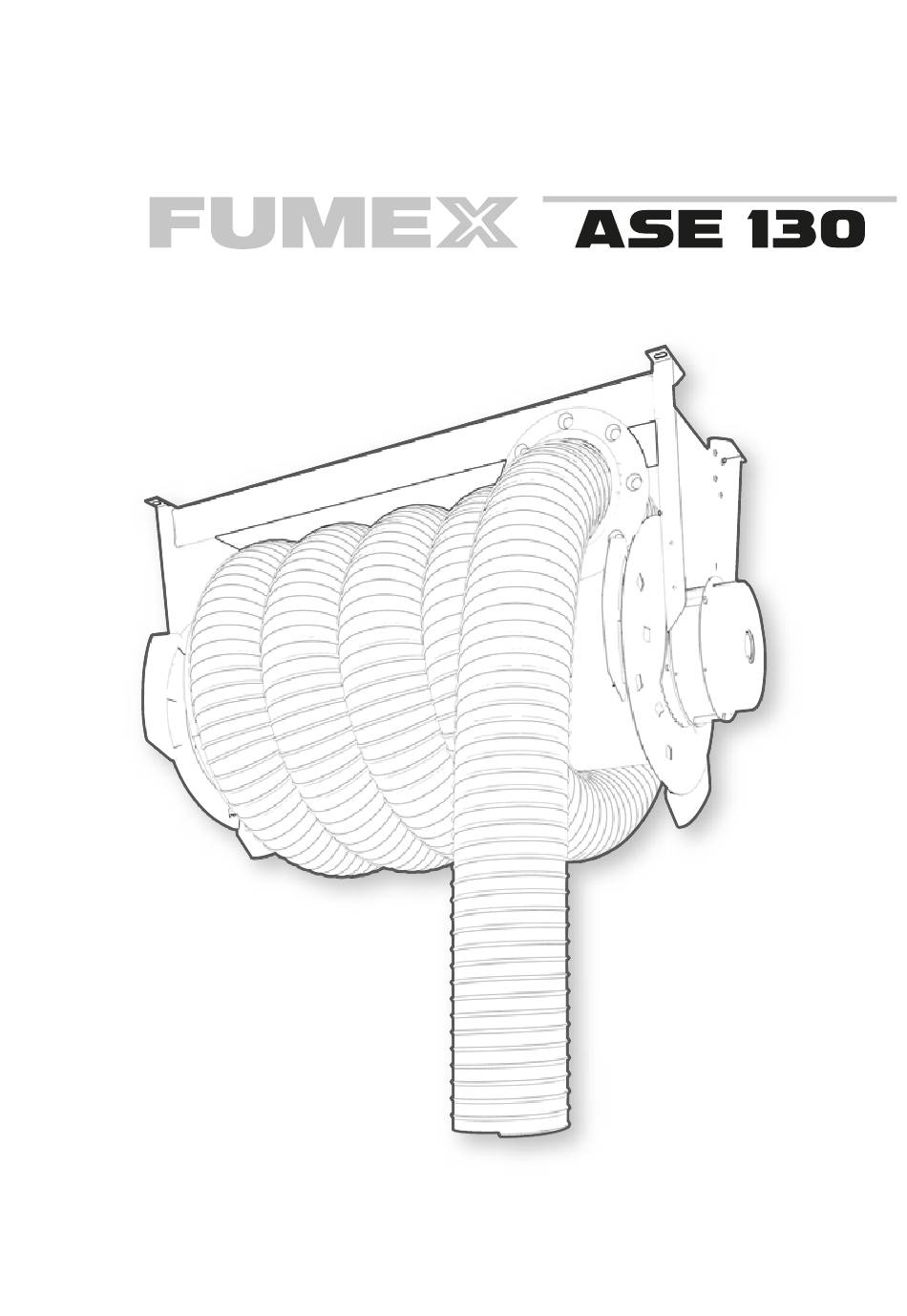

- Page 1 MANUAL A18W35_MASE 130_F_EN...
-
Page 2: Table Of Contents
3.2.2 Hose selection Operating instructions 4.1 Installation and startup 4.1.1 Before startup 4.1.2 Assembly and operation Troubleshooting 5.1 Troubleshooting guide Care instructions 6.1 Activation 6.2 Maintenance 6.2.1 Checklist maintenance Details diagram Accessories © Fumex AB, 2017 With provision for changes... -
Page 3: Identification

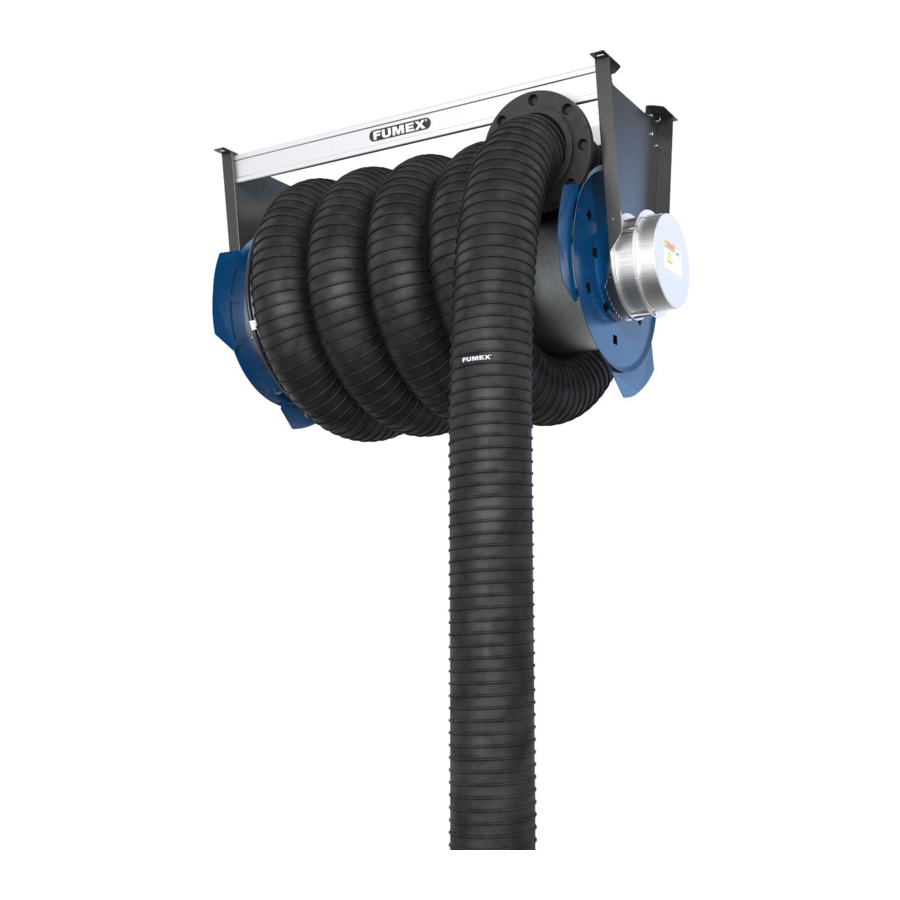

1.3 Year of manufacture 2018 1.4 Area of use Fumex ASE is a hose reel intended for evacuation of exhaust gases and prevents obtrusive hoses lying on the floor. The hose reel takes up little space and can be mounted on the ceiling or wall. -
Page 4: Technical Data
2.4.2 Hazards Note that moving parts in the system always pose a risk (e.g. cutting, clamping or gripping points). Fig. 2 Hose reel ASE 130 Weight*: ......... 57 kg Material cross member: ....Anodised Aluminium Material other metal: ..... Steel Material inlet bearing:.... -
Page 5: Preparation For Use
ASE 130 9. Seal and install the ventilation ducts directly to the * The calculations only apply when using Fumex original AGX hose, duct connection on the roller, or use a hose ASL 200 Fumex 3.2 kg nozzle and an installation height of 6 metres. -
Page 6: Hose Selection
6 Care Instructions 3.2.2 Hose selection Select the appropriate hose length, see table. 6.1 Activation If using your own hose, use accessory AES 200, Disruptions caused by lack of or faulty a hose stop that meets the safety requirements maintenance may result in high costs for the for the product. -
Page 7: Maintenance
6.3 Maintenance 6.3.1 Checklist maintenance Device Interval Item Inspection module Maintenance instructions Date Daily Hose Check that the hose is intact. Replace if necessary. Hose connections Check the fastening on hose connections. Every three months Hose reel Hose reel Look for leaks, damage and wear. Duct system Check the dust build-up and clean if necessary. -
Page 8: Accessories
• 1 x Hose, AGX 200, length ≈ 0,2 m ASES 200 ASES 200 ASE 865 ASE 865 Automatic mechanical damper. Switches to control the fan/electric dampers. phone +46 910-361 80 │ fax +46 910-130 22 │ www.fumex.com │ info@fumex.se...
