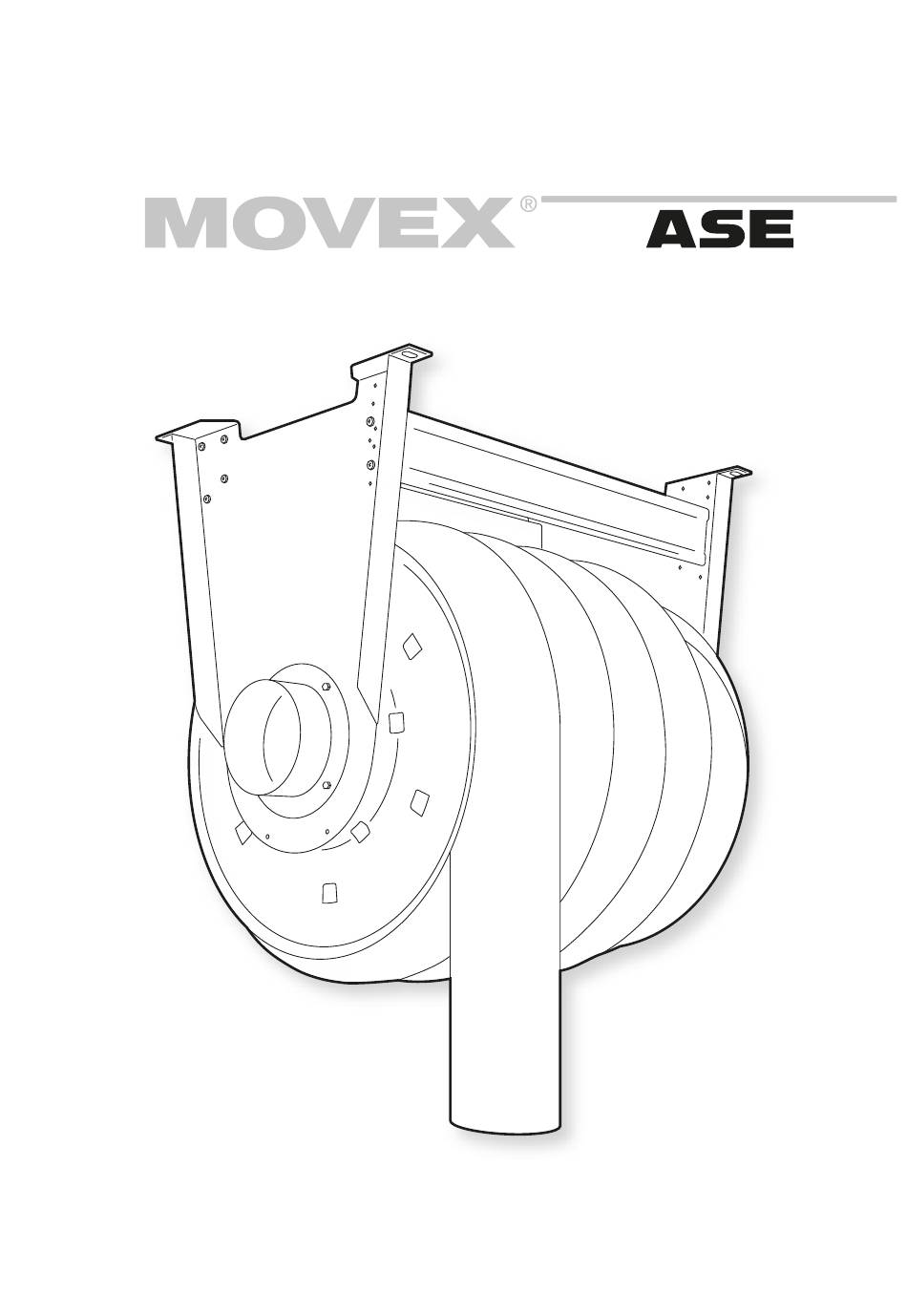

- Page 1 MANUAL A17W23_MASE_MUS_EN...
-
Page 2: Table Of Contents
3.2.2 Hose selection Operating instructions 4.1 Installation and startup 4.1.1 Before startup 4.1.2 Assembly and operation Troubleshooting 5.1 Troubleshooting guide Care instructions 6.1 Activation 6.2 Maintenance 6.2.1 Checklist maintenance Details diagram Accessories © Fumex AB, 2017 With provision for changes... -
Page 3: Identification
1 Identification 2 Technical specification 1.1 Manufacturer 2.1 Design Fumex AB Exhaust hose reel ASE, see Fig. 1. Verkstadsvägen 2 931 61 Skellefteå, Sweden Tel: +46 (0)910-36180 Email: info@fumex.se 1.2 Product name 1.3 Year of manufacture 2017 1.4 Area of use Movex ASE is a hose reel intended for evacuation of exhaust gases and prevents obtrusive hoses lying on the floor. -
Page 4: Technical Data
2.4 Safety 2.3 Technical data 2.4.1 Activation The product is safe to use. It is designed in such a way that hazardous parts only occupy restricted areas. Even so, if the product is not used correctly or as intended, it may be hazar- dous to the user or cause damage to the product. -
Page 5: Preparation For Use
Fig. 3 3 Preparation for use 5 / ” Ø 150 mm 5” Ø 125 mm 3.1 Transport and storage 4” Ø 100 mm 3” Ø 75 mm Protect the hose reel from rain, snow aggressive atmospheres and any other damaging circuimstances. 3.2 Installation and assembly 3.2.1 Assembly Assembly may only be carried out under consideration of... -
Page 6: Hose Selection
6 Care Instructions 3.2.2 Hose selection Select the appropriate hose length, see table. 6.1 Activation If you are using your own hose, the optional AES Disruptions caused by lack of or faulty is available which is a custom hose fitting kit and maintenance may result in high costs for the complies with the safety requirements for the product. -
Page 7: Maintenance
6.3 Maintenance 6.3.1 Checklist maintenance Device Interval Item Inspection module Maintenance instructions Date Daily Hose Check that the hose is intact. Replace if necessary. Hose connections Check the fastening on hose connections. Every three months Hose reel Hose reel Look for leaks, damage and wear. Duct system Check the dust build-up and clean if necessary. -
Page 8: Accessories
8 Accessories AES 100 AES 125 • 1 x Reducer 57/₈ - 4” • 1 x Reducer 57/₈ - 5” • 1 x Protective cloth • 1 x Protective cloth • 1 x Hose stop • 1 x Hose stop •...
