Summary of Contents for miRider One

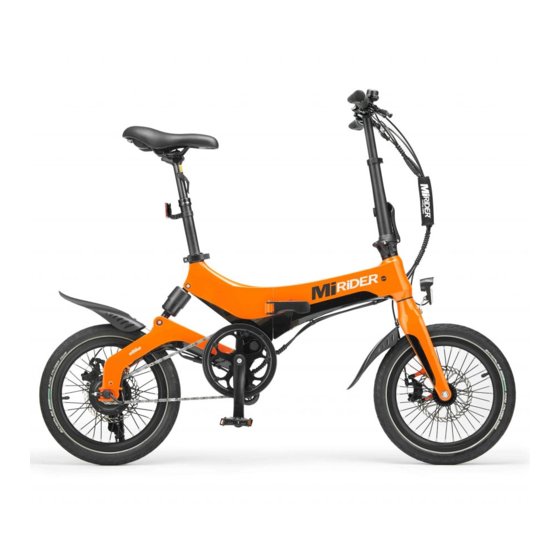

- Page 1 Instruction Manual Electric Folding Bike...
- Page 2 About us Here at MiRiDER, we’re passionate people with a keen interest in outdoor leisure. Our dream is to get people to fall back in love with cycling, making it fun and accessible for everyone; it’s at the heart of everything we do. We want to make it easier for people of all ages to enjoy more exercise, have more fun and create more memories.
-
Page 3: Table Of Contents
Page 22 - 23 Troubleshooting Page 24 Warranty Page 25 Please read this manual carefully before using the MiRiDER one eBike. This manual will help you understand the bike’s: Basic operational process Safety principals Product structure, its care & use... -
Page 4: Bike Structure And Functions
Bike structure and functions Packing list Items included: 1 x MiRiDER one eBike 1 x Seat saddle Instruction manual 1 x Charger 1 x Battery 2 x Mudguards 2 x Battery locking keys Before use It is recommended that you wear protective clothing and approptiate accessories when riding... -
Page 5: Instructions For Use
Instructions for use 1. Folding the eBike frame 2. To secure the eBike frame 3. Securing the stem On the hinge lever, hold the red lever down Connect the frame together and push the Secure the hinge by pressing the black Lift the handle bar stem upwards until then open the lever outwards. - Page 6 4. Adjusting handlebar height 5. How to insert the seat Open the seat clamp, as shown in the Push the seat into the frame to the Open the clamp to raise and lower the image above. minimum inserion mark on the seat post handle bar height.
-
Page 7: Lcd Display Instructions
LCD display instructions 7. Folding the pedals The display content is shown as follow. Power-assist Running counter startup mark Battery capacity indicator Throttle turned on mark UP button Vehicle speed display To unfold simply pull down the pedal until To fold, push the pedal inwards, then lift SW button Walk assist it clicks into place. - Page 8 ON/OFF Headlights & Backlights Push and hold the power ON/OFF button to activate Holding the up arrow on the display turns on the display. The same button is to be pushed and the display backlight and the bikes headlight. held to switch the display off. Note: The display will Push and hold the same button again to switch power itself off after 5 minutes of inactivity.
-
Page 9: Other Operations
Other operations Maintenance and storage Uninstalling/Installing the battery Ensure the bike is stored in a cool and dry place when not in use Regularly check the screws and small parts on the bike. Tighten when required Do not use any chemical solvents to clean the bike, as this may corrode the surface of the product Suggested regular maintenance checks: Parts... -
Page 10: Charging The Battery
Charging the battery Battery charging precautions Ensure the battery is charged in temperatures between 10-45°C Always store the battery in a cool and dry place, at normal room temperature Keep the battery away from all chemicals, water, fire and heat Do not disconnect the positive and negative power supply. -
Page 11: Safety Advice
Safety advice Warnings and precautions When dismounting your MiRiDER, ensure the bike is powered off, or the speed assistance is set to “0” on the LCD display. Ensure all protective clothing is worn to prevent any injuries In public areas, it is advised to dismount from the eBike, or only use the throttle... -
Page 12: Specifications
Specifications Maximum motor speed 25km/h (15.5 mph) Maximum range 56km (35 miles) - dependant on rider wight and terrain Colour options White, Orange, Grey Maximum weight 120kg (265 lbs) Unfolded size 1340x550x1100mm Climbing angle >15° Function Folded size 770x430x640mm parameters Lighting Front LED lights Seat height (from ground) -
Page 13: Troubleshooting
Please visit www.mirider.co.uk/warranty turned on 2. Charge the battery MiRiDER eBikes come with a 2 year warranty covering the frame, motor and battery. The 2 year eBike is not providing 1. Battery is not fully 1. Ensure the battery is fully... - Page 14 This product was imported by MiRiDER LTD, Disklok House, Preston Road, Charnock Richard, Chorley, Lancashire, PR7 5HH. Assembled in the UK. RoHS COMPLIANT EPAC according to EN15194...
