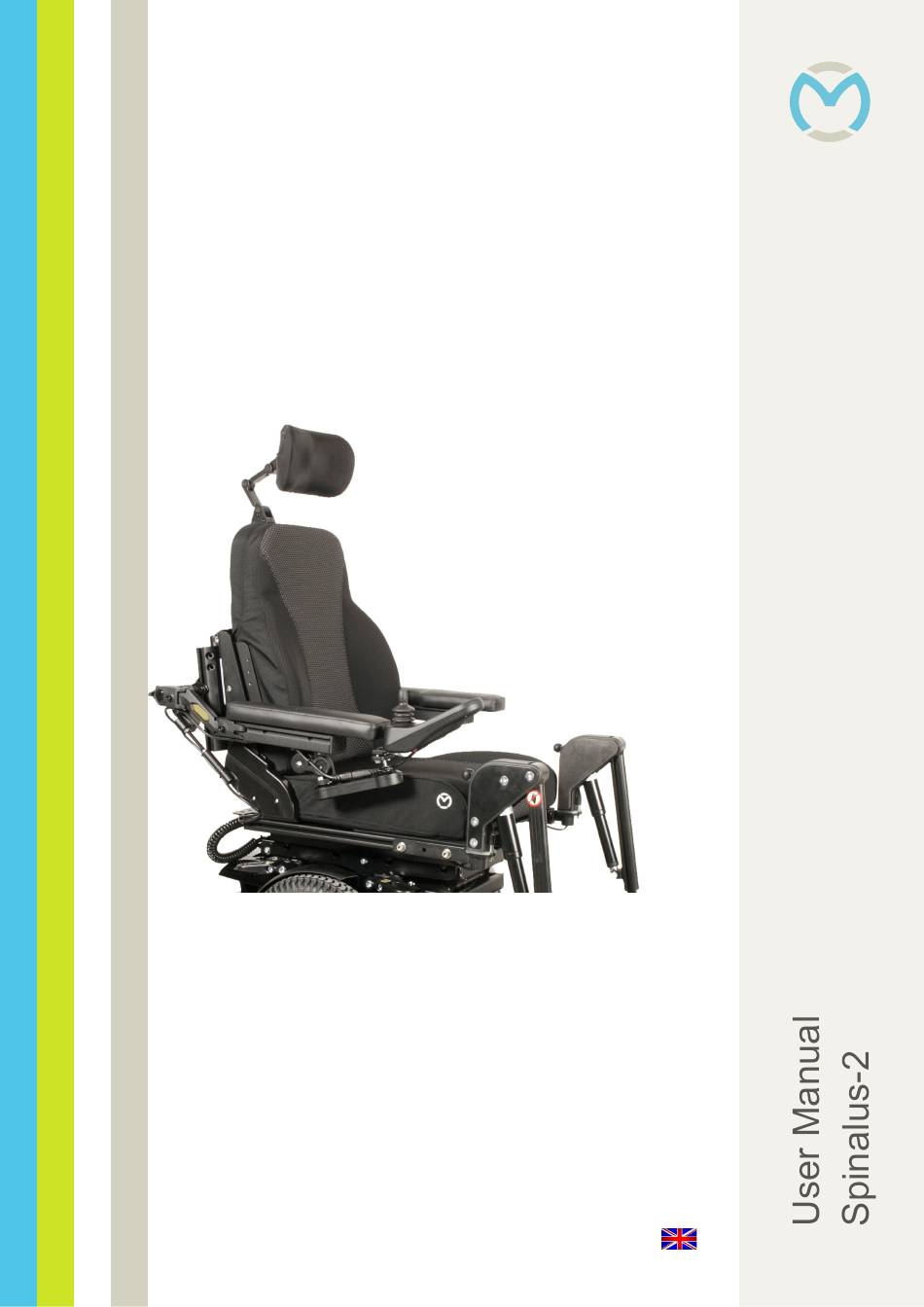

- Page 1 medemagroup 2433-2017-B ver. 1.0.0 - December 2019...
- Page 2 Medema Production A/S Dealer: User guide 2433-2019-B 2 of 20 Version 1.0.0/2019...
-
Page 3: Table Of Contents
Adjustment of the seat width ..........9 Dynamic recline ..............13 Dynamic recline ..............14 Adjusting the headrest ............15 Swing-away fitting for Spinalus-2 ........15 Adjusting the tightness ............16 Adjusting backward/forward on armrest......16 Adjusting the joystick ............16 Joystick height adjustment .......... -
Page 4: Spinalus-2 Settings
Medema Production A/S Spinalus-2 settings Spinalus-2 is designed to stay safe to use for at least 10 years Adjusting the height of the backrest The backrest can be ad- justed up/down in several sections. The top part of the backrest is, from the factory, mount- ed in the top hole. -
Page 5: Stepless Adjustment Of Seat Depth
Medema Production A/S Stepless adjustment of seat depth Seat depth are step less adjusted between 35 and 55 cm. Due to the construction of the back, the seat depth adjustment have no influ- ence on the other geometry in the backrest. -
Page 6: Height Adjustment Of Armrest
Medema Production A/S Height adjustment of armrest The armrests runs in a rail, can be adjusted step less up/down. To adjust - loosen three screws. Adjust armrest - tighten the screws again. Loosen these screws. Tool: open end wrench 13 mm Loosen these screws. - Page 7 Medema Production A/S Adjusting the armrest angle in the first joint The armrest has two joints to rotate about. We name the joints, the first and the second joint. The second joint. The first joint. Tool: Allen key 6 mm...
-
Page 8: Adjusting The Armrest Cushion
Medema Production A/S By turning the screw either one or the other way, the angle of the armrest moves in/out. Note! When the armrest is adjust- ed inward, it will at some Centre of angle point, hit the seat. Centre of angle... -
Page 9: Dismantling The Armrest
Medema Production A/S Dismantling the armrest The armrests are fixed with a finger screw. Loosen the finger screw. Pull the armrest of. A new one can be mounted in reverse order. Gripping area User guide 2433-2019-B 9 of 20 Version 1.0.0/2019... -
Page 10: Adjustment Of The Seat Width
Medema Production A/S Adjustment of the seat width The Spinalus-2 seating sys- tem is full modular seating system from 40 to 55 cm in seat width. In steps of 5 cm. When changing from one seat width to another, all that need to be changed, is the cushions. - Page 11 Medema Production A/S The Spinalus-2 seating sys- tem is full modular seating system from 40 to 55 cm in seat width. In steps of 5 cm. Follow the instructions under- neath to change the seat width. 1: Release the back cushion.
- Page 12 Medema Production A/S 4: Remove the cover plate in the back. Remove the four screws that keep the cover in place. 5: Loosen the actuator box. Loosen the actuator box by removing the two screws, that hold it in place. Now there is access to the pinole screws in the next step.
-
Page 13: Dynamic Recline
Medema Production A/S The back actuator is fixed in both ends on a solid axle. To be able to adjust the seat width out or in the two pinole screws on each side of the axle, in the top and the bottom. -
Page 14: Dynamic Recline
Medema Production A/S Dynamic recline In the outer holes (as shown in the picture) the seat back is lowered 70 mm. In the middle holes 50 mm In the inner holes 30 mm You can adjust how far the seat back moves down during re- cline. -
Page 15: Adjusting The Headrest
10 years. Swing-away fitting for Spinalus-2 Our Swing away fitting for Spinalus-2 have many adjustment features, to place the joystick to fit you perfectly. The Swing away is designed to stay safe to use for at least 10 years. -
Page 16: Adjusting The Tightness
Medema Production A/S Adjusting the tightness Here you adjust how easyly the Swing away should re- act to the push, when you need it to swing away. Tool: Torx T10 Adjusting backward/forward on armrest Lift up the armrest. Two screws keep the Swing away bracket fixed to the armrest. -
Page 17: Joystick Height Adjustment
Medema Production A/S Joystick height adjustment By loosening this screw, the joystick can be adjust- ed up / down, with center in this axis. Tool: Torx T30 Find the right location. And tighten the screw again. Tool: Torx T30 This setting also affects how far the joystick folds under the armrest. -
Page 18: Replace Joystick
Medema Production A/S Replace joystick The Joystick is attached to a bracket with two screws Remove the two screws, and unplug the plug. Mount a new in reverse order. Remember! To fix the cabel again with cable ties. Tool: Allen key 4 mm... - Page 19 Medema Production A/S In order to make the Swing away, swing to the other side, switch these two screws around. Tool: Torx T25 They have different length. The longest screw should be to the right if the Swing away is mounted on the right armrest.
- Page 20 medemagroup...
