Strobe Light Kit Wiring and Installation Guide
Since the integrity of this light system depends
on proper installation and wiring, we
recommend you have it installed by a certified
emergency vehicle technician. We are not
responsible for damage caused by improper
installation.

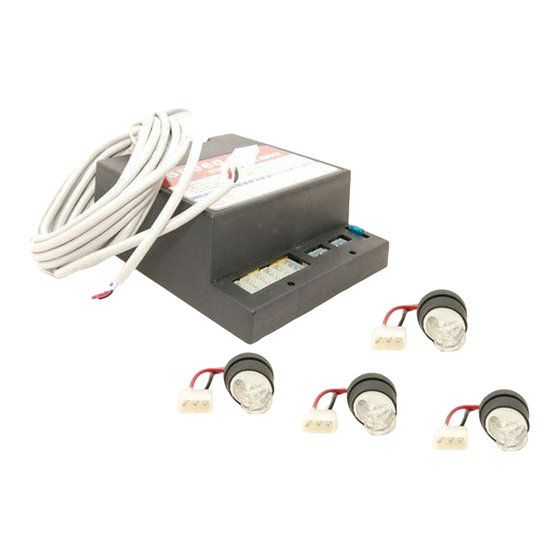

960 Strobe Tube Kit

When you order the 960 strobe kit, you will
receive 4 tubes, 4 wiring harnesses, and a 6-outlet,
90-watt power pack. There is additional room in
the power outlet for 2 additional light heads and
harnesses. The unit also comes with 12 feet of
wire for each tube.

Installation Instructions and Tips

The unit is designed for plug and play action
•
Install the power supply in a safe location that is easy to reach under any driving conditions
•
Do not route wires near engine hot spots
•
Male terminals need to face power supply
•
Female terminals should be near terminals
•
Strobe Tube Kit Installation Instructions
•
Insert terminals in Tyco connectors
•
Connect cable to each light head
•
Locate output sockets in power supply
•
Connect cables to output sockets
•

Powering the Strobe Tube Kit
