Summary of Contents for TIPTEL voiceRECORDER 300

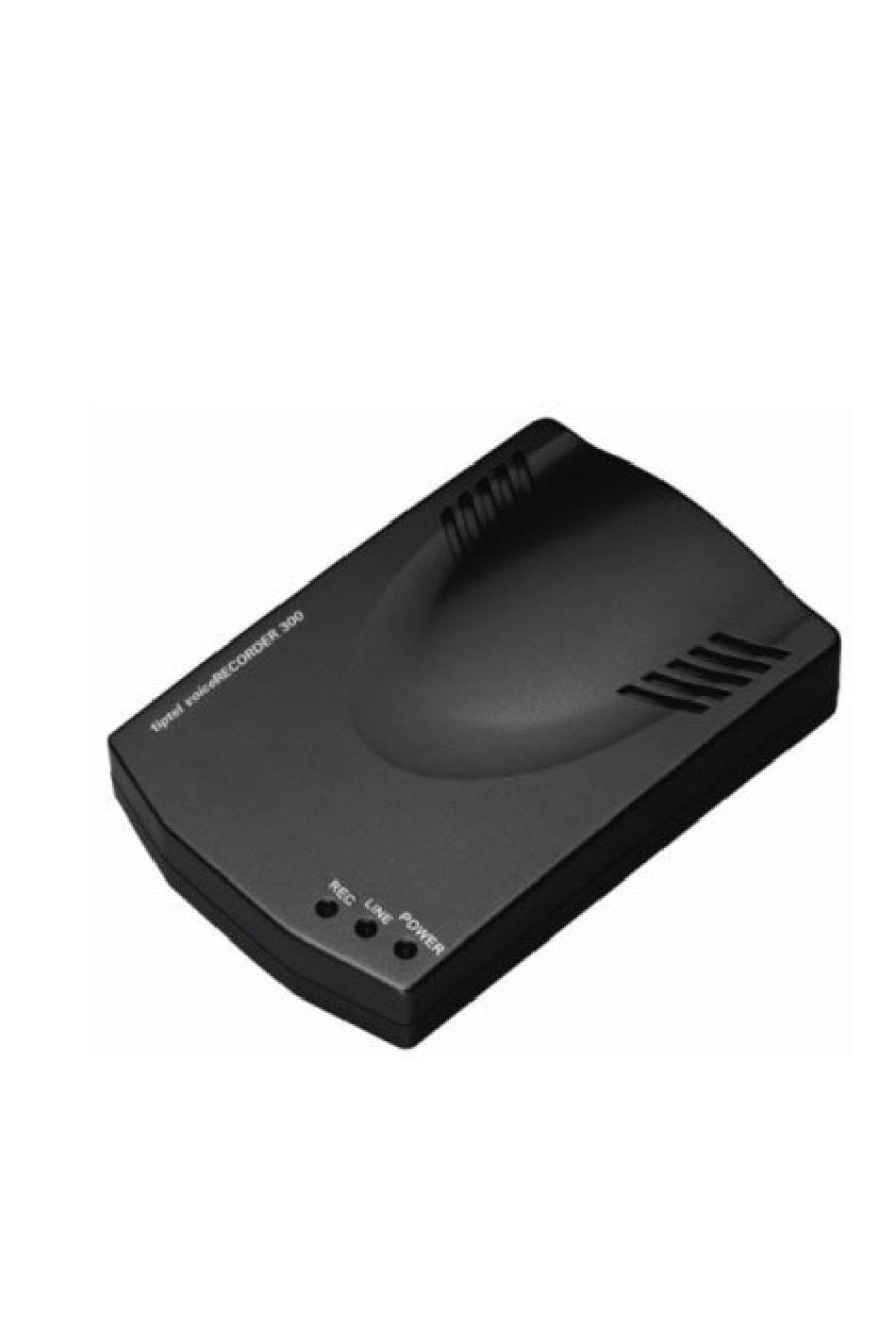

- Page 1 Manual (GB) tiptel voiceRECORDER 300 tiptel...
-
Page 2: Table Of Contents
Parts supplied ......................3 General information....................4 User elements ......................4 Installation .......................5 Software installation ....................5 Installation of the tiptel voiceRECORDER 300............5 Operation of the tiptel voiceRECORDER 300..........7 Settings........................7 Archiving and administration of calls ................. 10 Contact persons ......................12 Appendix ......................13... -
Page 3: Introduction
The software supplied has been specially developed to manage and archive large numbers of recordings made with the tiptel voiceRECORDER 300. You can connect up to four tiptel voiceRECORDER 300 to one PC and make recordings from four different telephone lines. For every telephone line you have a separate PC software window. -
Page 4: General Information
Introduction General information • All telephone calls are recorded automatically. • Recording as wav file on the PC, without time limit. • Caller data are displayed automatically if caller ID is available. • All data about incoming, outgoing and missed telephone calls are stored. •... -
Page 5: Installation
Default destination folder is C:\Program Files\Tiptel-voiceRECORDER-300. The installation process is started. Click on ’Finish’ to complete the installation. Installation of the tiptel voiceRECORDER 300 Click on Start in the task bar and then on Programs / Tiptel-voiceRECORDER-300 / Tiptel-voiceRECORDER-300 (see the picture below). - Page 6 Installation In the task bar of Windows™ XP the following voiceRECORDER 300 logo is displayed. The text in the logo is grey if the tiptel voiceRECORDER 300 is not connected to the PC. Please note that the logos under Windows™ 2000 could be different: Connect the USB cable to the tiptel voiceRECORDER 300 and the other end of the USB cable to the USB port of your PC or laptop.
-
Page 7: Operation Of The Tiptel Voicerecorder 300
Operation of the tiptel voiceRECORDER 300 Operation of the tiptel voiceRECORDER 300 After the successful installation of the software and the tiptel voiceRECORDER 300 it is possible to record all incoming and outgoing telephone calls with your connected PC. Now you can archive all recorded telephone calls and contacts. - Page 8 Record Security On the menu tab ’System’ you can activate / deactivate the following settings: Start tiptel voiceRECORDER 300 software automatically when Windows™ starts. Open main window when you lift the receiver of your telephone. Display information when you receive a call.
- Page 9 Operation of the tiptel voiceRECORDER 300 For ’How to start record’ you can configure : 1. Record when dial 2. Record when talk 3. Start recording by pressing Start Key If you have choosen ’Start record by pressing Start Key’ you have to enter the key combinations which you want to use for start and stop the recording.
-
Page 10: Archiving And Administration Of Calls
Operation of the tiptel voiceRECORDER 300 Archiving and administration of calls Every telephone call is registered by the tiptel voiceRECORDER 300. You can search and playback all registered calls: Open the tiptel voiceRECORDER 300 software. You can choose the following... - Page 11 Operation of the tiptel voiceRECORDER 300 If you have clicked on the option ‘Wave’ all telephone calls are listed. Alternatively you can choose a list of all outgoing, all incoming or all missed calls. Furthermore you can choose the date of the calls.
-
Page 12: Contact Persons
Operation of the tiptel voiceRECORDER 300 Contact persons In the software of the tiptel voiceRECORDER 300 it is possible to enter, edit or delete contact persons. You open the list of contact persons as follows: 1. Open the tiptel voiceRECORDER 300 software. -
Page 13: Appendix
Your contact for services arising from guarantee obligations is the authorised dealer where you bought the device. TIPTEL AG will grant a guarantee of 2 years from the date of handover for the material and for the manufacturing of the telecommunications terminal unit. -
Page 14: Ce Sign
The General Terms and Conditions of TIPTEL AG, which are part of the contract for a dealer, shall also apply. In the event of a complaint, the defective product shall be sent to the relevant TIPTEL subsidiary, the importer or dealer along with a description of the defect and the proof of purchase. -
Page 15: Index
Index Index Password ........... 9 CD-ROM..........3 CE sign ..........14 Received .......... 10 Contact persons......12 Record ..........8 General information......4 Security ..........9 Guarantee........13 Service ..........13 Settings..........7 Software installation......5 Installation guide ....... 3 Start recording ........ - Page 16 TIPTEL AG Halskestraße 1 D - 40880 Ratingen Tel.: 0 18 05 – 84 78 35* anity Tel.: 0 18 05 – TIPTEL* Fax: 0 18 05 – 84 78 49* E-mail: support@tiptel.de Internet: www.tiptel.de International: E-mail: int.support@tiptel.com Internet: www.tiptel.com...
