PISCO EQ01-C04P01C08 Manual

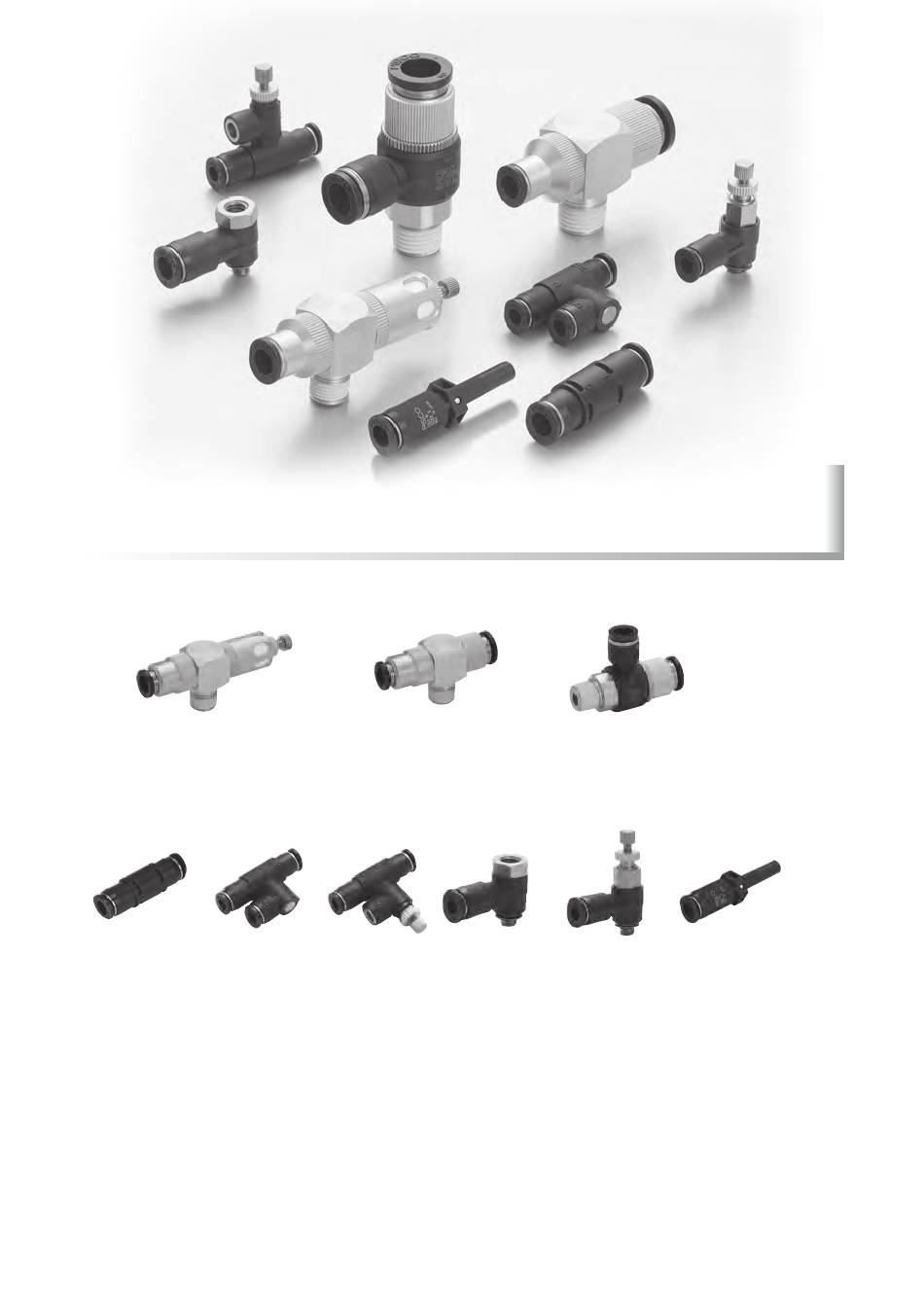

Quick Exhaust Valve Series
●
For Faster return/movement of Cylinder
Standard Quick Exhaust Valve with needle is equipped with Silencer.
●
Re-adjustment of exhaust flow is not needed when replacing silencer element.
Mini type offers high flow in a compact and lightweight body, a wide
●
variety of style - available port O.D. sizes are 5/32~1/4", 3~6mm
Ideal countermeasure to prevent condensation caused by
●
adiabatic expansion of small actuators which leads malfunction,
deterioration and the washing down grease of valves etc.
(Install quick exhaust valves close to cylinders or actuators.)
●
Certain models can be used as a shuttle Valve
Some smaller models with 1/4" O.D. Available now. Other models
with Inch/NPT/10-32UNF thread are coming soon in Spring 2020.
Push-In Fitting Type Quick Exhaust Valve
