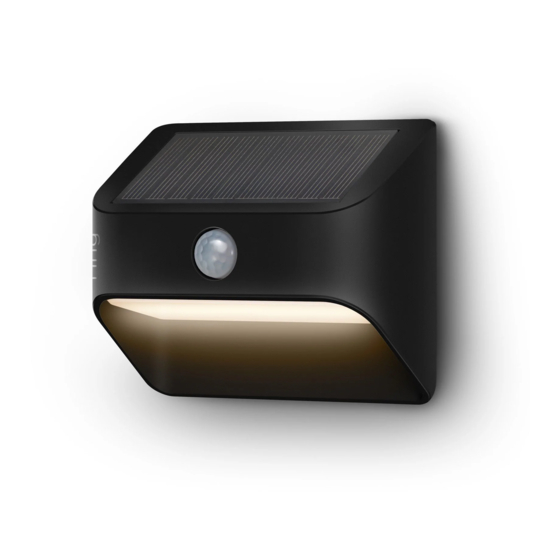

- Page 1 Solar Steplight Smart Lighting...
- Page 2 Set up your Ring Bridge. The app walks you through setting The Bridge is required to connect up and managing your Steplight. your Ring Smart Lights to the Ring app and other compatible Search for “Ring” in one of these Ring devices.
-
Page 3: Remove The Battery Cover
Slide off the Remove the battery mounting plate. cover. Slide the tabs out of the Press in the tab on the bottom grooves and remove the plate and lift to remove. from the rear of your Steplight. - Page 4 Remove the battery pull-tab. Once removed, the included lithium-ion battery will be activated and your Steplight will flash twice to indicate its powered on. Risk of fire, explosion, or burn. Do not short circuit, crush, heat above 60°C, incinerate, or disassemble the battery.
- Page 5 Charge your Steplight. Plug the provided micro USB cord into a USB power supply (not included), then connect it to your Steplight to fully charge the battery. The light will slowly turn on and off while charging and glow on continuously once charged.
- Page 6 Re-attach the Set up your Steplight battery cover. in the Ring app. Push the battery cover back In the app, tap Set Up a Device. onto your Steplight, making When prompted, select Smart sure the tab snaps into place. Lights and follow the in-app...
- Page 7 Mark the screw holes. Use the holes in the mounting plate as a template to mark the screw locations. As a solar light, please ensure you install your light in an area with plenty of sun.
- Page 8 Install Wall Anchors (optional). If installing on a hard surface (such as stucco or brick), first drill holes using a 3/16” drill bit (not included). If installing on wood or siding, skip this step.
-
Page 9: Install The Mounting Plate
Install the mounting plate. Place the mounting plate against the surface, making sure the arrow is pointing upwards, and drive the two mounting screws until the mounting plate is flush against the surface. If installing on a wood surface, you can screw the bracket directly into your wall using a Philips head screwdriver. - Page 10 Mount your Steplight. Place your Steplight over the mounting plate, then slide it downward to lock it in place.
- Page 11 Canada 1 855 300 7289 Worldwide +1 310 929 7085 For a list of all our customer support numbers, visit: ring.com/callus © 2019 Ring LLC or its affiliates. Ring and all related logos are trademarks of Ring LLC or its affiliates.
