Summary of Contents for WeeKett KE4071TB-GS

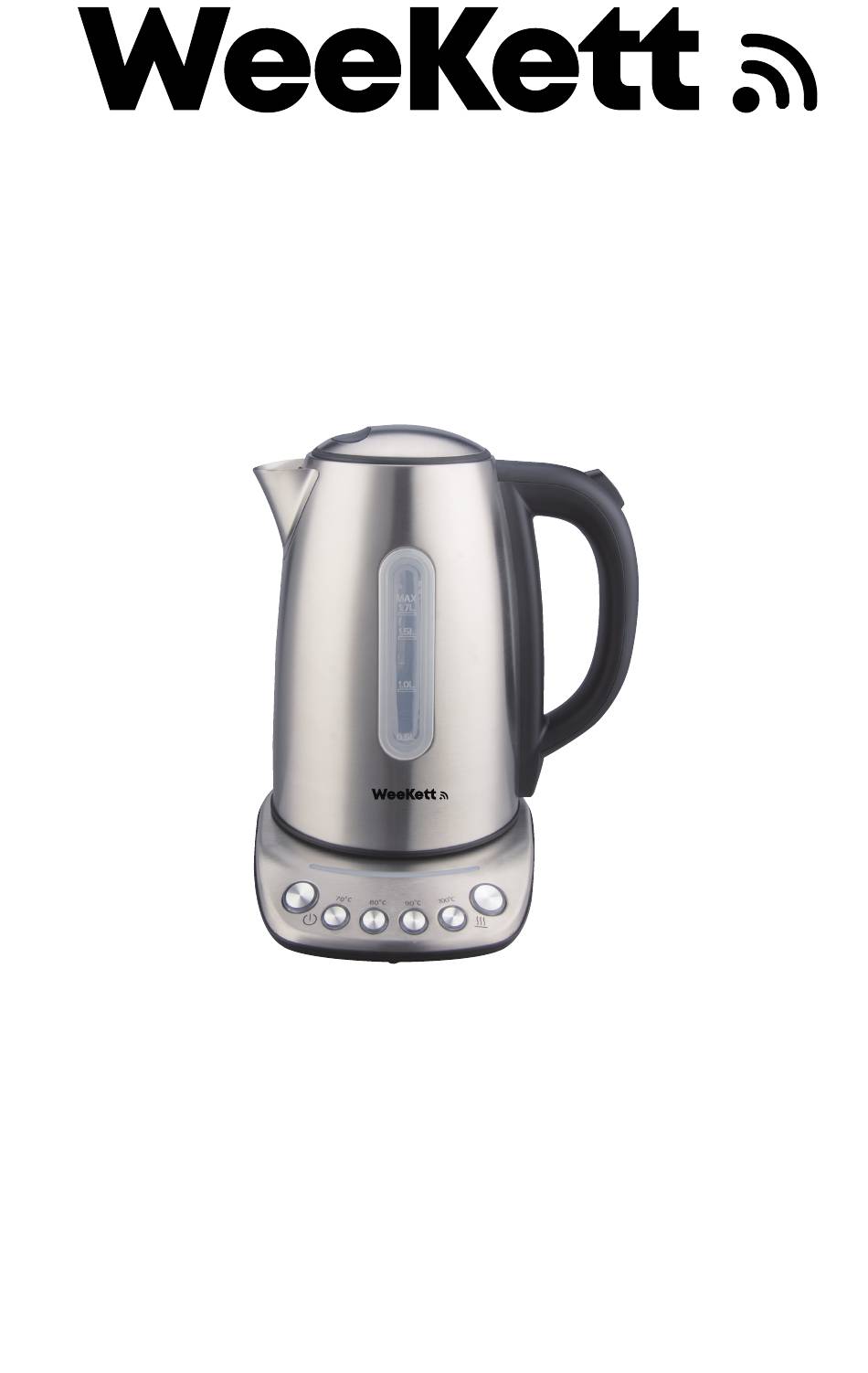

- Page 1 ELECTRIC KETTLE INSTRUCTION MANUAL MODEL: KE4071TB-GS Read this manual thoroughly before using and save it for future reference...
-
Page 2: Table Of Contents
5.2 How to Use the Keep-warm Function 5.3 How to Use Baby-milk Mode 6. Using your Kettle with Wi-Fi and App (Instruction videos available on WeeKett YouTube) ……………………….…….…7 6.1 How to create an account 6.2 Connecting the Kettle to Wi-Fi 6.3 Fast connecting mode (default method) -
Page 3: Important Safeguards
1. IMPORTANT SAFEGUARDS 1. Read all instructions before using and save them for future references. 2. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and stop using the kettle. - Page 4 16. The appliance must not be immersed and should be placed on a dry surface. 17. Extreme caution must be used when moving an appliance containing hot water. 18. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and they understand the hazards involved.
-
Page 5: Know Your Kettle
2. KNOW YOUR KETTLE 3. CONTROL PANEL INTRODUCTION Buttons:“ ”, “70℃”, “80℃”, “90℃” ,“100℃” and “ ”; total 6 buttons. “ ” is also used as a Wi-Fi reset button and the button of “100℃” is also used as a boil-dry reset button. -
Page 6: Before Using Your Kettle
Keep-warm button “ ”: For activating or canceling the keep-warm function. 4. BEFORE USING YOUR KETTLE If you are using the kettle for the first time, it is recommended that you should clean your kettle before use by boiling a full kettle of water twice and then discarding the water. Wipe the surface with a damp cloth. -
Page 7: How To Use The Keep-Warm Function
5. When the water is heated to selected preset temperature, the indicator of selected preset temperature lights solidly and the indicator of “ ” turns off. NOTE: (1) You can press “ ” to make the kettle stop heating during heating process. (2) The appliance will enter into sleep mode if the kettle is removed from the power base or if there is not any operation for more than 3 minutes during heating process. -
Page 8: How To Use Baby-Milk Mode
preset temperature and the indicator of “ ”light solidly while the indicator of “ ” turns off. 5. The kettle will keep warm for one hour. During keep-warm process, the indicator of selected preset temperature and the indicator of “ ”... -
Page 9: Using Your Kettle With Wi-Fi And App
NOTE: Always follow the preparation guides on your baby food packaging and choose the recommended temperatures. 6. USING YOUR KETTLE - WITH WI-FI AND APP 6.1 How to create an account 1. Search and download the app “Smart Life” from the Apple App Store or Google Play of your mobile phone. -
Page 10: Connecting The Kettle To Wi-Fi
6.2 Connecting the Kettle to Wi-Fi NOTE: (1) Your mobile phone needs to connect to your home Wi-Fi first. (2) Have your Wi-Fi password ready for later. (3) If no action is taken to connect the Wi-Fi within 10 minutes, the connection mode will switch off (Wi-Fi indication off). - Page 11 connecting mode by default, at that time, the Wi-Fi indicator on the power base will blink rapidly (3 times/second). 6.3.2 Follow steps 6 – 12 to add device in the app per Figs. (6) – (12) Step 6: Click “Add Device” or the "+" button at the upper right corner. Step 7: Firstly, select “Kitchen Appliances”...
- Page 12 (10) (11)
-
Page 13: Slow Connecting Mode
(12) 6.4 Slow connecting mode 6.4.1 After the kettle is connected with power source, the kettle will enter into Wi-Fi connecting mode by default, and On/Off button for more than 3 seconds, the Wi-Fi indicator will turn to blink slowly. 6.4.2 Follow steps 13 –... - Page 14 you return to the app home section, the kettle has been added. So, you may want to give it a few seconds pause before trying connecting again. Step 22: The kettle is added successfully and it is by default named “Kettle”. Step 23: Click “Done”...
-
Page 15: Temperature Measurement Conversion
(16) (17) (18) (19) (20) (21) (22) (23） 6.5 Temperature measurement conversion... -
Page 16: How To Turn On/Off The Kettle
After the kettle is connected to Wi-Fi, the default temperature can be adjusted on the app between 40 ℃ and 100 ℃ . Click “ ℃ ” or “ ℉ ” at the upper right corner to switch between “℃” and “℉” per Fig. (24) and Fig. (25). (24) (25) 6.6 How to turn on/off the kettle... -
Page 17: How To Adjust The Temperature
(26) (27) 6.7 How to adjust the temperature Click “Target Temperature” to select your desired temperature by swiping the temperature bar. The kettle will then enter into the heating mode automatically after selecting the temperature per Figs.（28）and（29）... -
Page 18: How To Turn On Baby-Milk Mode
(28) (29) 6.8 How to turn on baby-milk mode To use the baby-milk mode, tap on the switch in the “Baby Bottle” bar. Under this mode, the kettle will enter into heating mode automatically and change the keep-warm switch to on and the target temperature will be set to 70℃. Under this mode, the water will be heated to 100℃... -
Page 19: How To Add Kettle Control Interface To Phone's Home Screen
(30) (31) 6.9 How to add kettle control interface to phone’s home screen NOTE: This feature allows you enter into the kettle control interface in one tap from your mobile phone home screen like opening an app. Click“ ”at the upper right corner and then click “Add to Home Screen”. Follow the instruction of app to operate per Figs. -
Page 20: How To Change The Name Of Kettle
(32) (33) (34) (35) 6.10 How to change the name of kettle NOTE: This is an important setting for section 7.2 later on to ensure you can control... - Page 21 your kettle effortlessly via your smart speaker. Click“ ”at the upper right corner and then tap on the first bar stating the name of your kettle, then select “Name” to input a new name, then click “Confirm” per Figs. (36), (37), (38), and (39). (36) (37) (38)
-
Page 22: Share The Control
(39) 6.11 Share the control NOTE: The other person you are sharing the control with should download the Smart Life App and create an account via the mobile phone number first before you can operate below. Click “ ” at the upper right corner and select “Share Device”, then click “Add Sharing”... - Page 23 (40) (41) (42) (43) (44)
-
Page 24: App Notifications And Alerts
6.12 App notifications and alerts NOTE: For safety reasons and the best user experiences, it is important that on your mobile phone system setting, you will allow the Smart Life App to send you push notifications, especially for the dry boiling alert. 6.12.1 Kettle Left When the kettle is removed from the power base, “Kettle left”... -
Page 25: Temperature Memory Function
NOTE: Please be very careful not to touch the hot surface during this operation. (46) (47) 6.13 Temperature memory function The target temperature will be the temperature from the last setting, if the kettle is removed from the power base and then placed on the power base again or is reconnected after power off. -
Page 26: Understanding Preset Temperature Button Indicators
(48) (49) 6.14 Understanding preset temperature button indicators When the temperature of 70 ℃ , 80 ℃ , 90 ℃ or 100 ℃ is selected, its corresponding indicator on the power base will illuminate. However, they will not illuminate if other temperature is selected. -
Page 27: Smart Speaker Integration
7. SMART SPEAKER INTEGRATION NOTE: You need to have either an Amazon Alexa or a Google Home and have downloaded the corresponding mobile app to use this feature. 7.1Linking kettle with your smart speaker Click“ ”at the upper right corner and then click “Alexa” or “Google Assistant” icon. -
Page 28: Cleaning And Maintenance
7.2.1 Switch on/off To turn on your kettle remotely, just say to your smart speaker “Alexa/Ok Google, turn on the kettle”. The target temperature will be the temperature setting from the last use. Upon reaching target temperature, the kettle will switch off automatically. You can also turn the kettle off remotely via your smart speaker. -
Page 29: Removal Of Mineral Deposits
9. REMOVAL OF MINERAL DEPOSITS Your kettle should be periodically descaled as the mineral deposits in tap water may form scale at the bottom of kettle interior so as to cause the operation less efficiency. You can use the commercially available descaler and follow the instructions on the package of descaler.
