User Manual
Low power mobile data logger
ThingsLog LPMDL-1101
GSM / GPRS Data logger
iTransformers Labs Ltd
11 Magnaurska shkola str., fl. 3, office 315 (Hightech Business Park, BIC IZOT),
1784, Sofia, Bulgaria
Phone (+359) 875 32 80 70• Email: info@thingslog.com
Visit us at www.thingslog.com; (+359) 875 32 80 70;
sales@thingslog.com
Advertisement
Table of Contents
Related Manuals for ThingsLog LPMDL-1101
Summary of Contents for ThingsLog LPMDL-1101

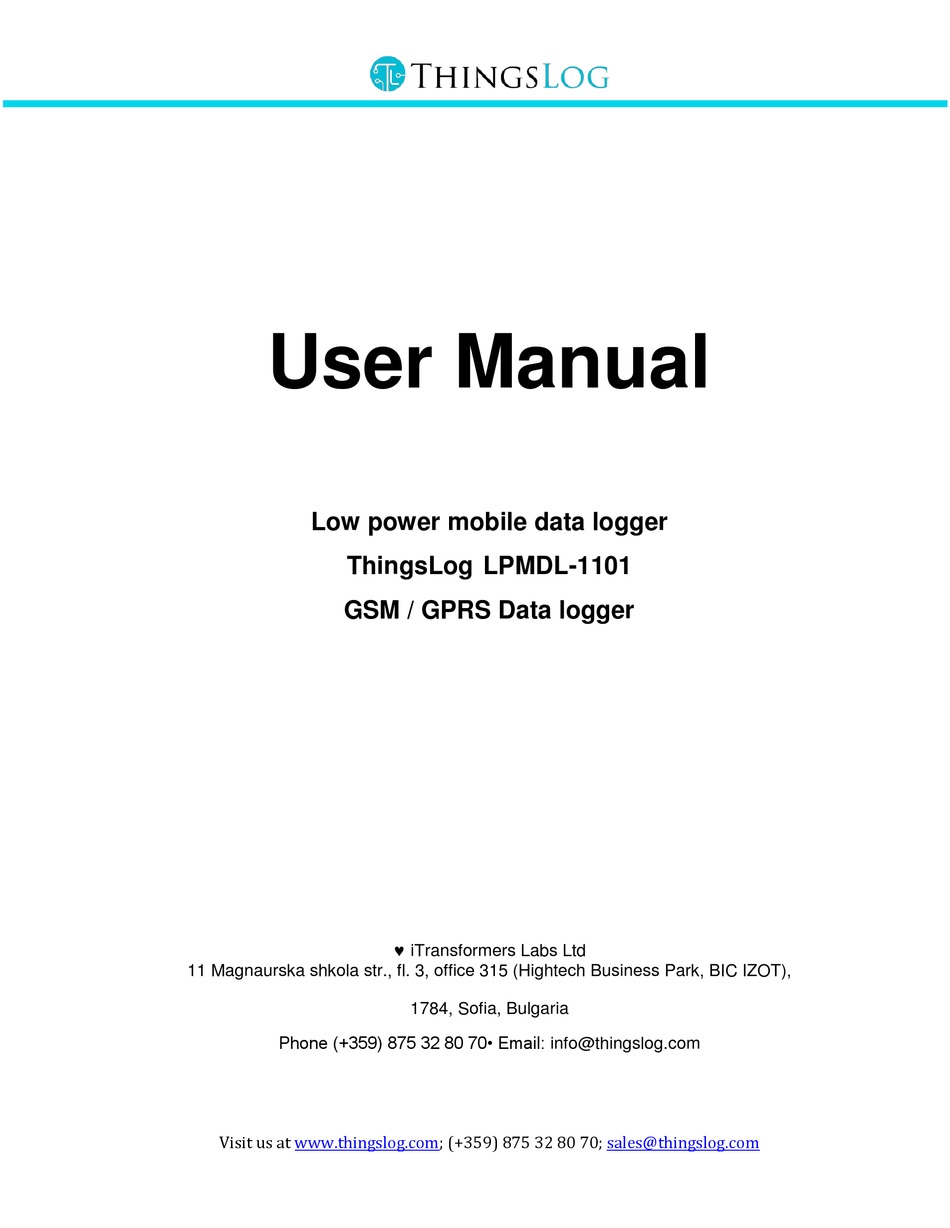

- Page 1 GSM / GPRS Data logger iTransformers Labs Ltd 11 Magnaurska shkola str., fl. 3, office 315 (Hightech Business Park, BIC IZOT), 1784, Sofia, Bulgaria Phone (+359) 875 32 80 70• Email: info@thingslog.com Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com...
-
Page 2: Table Of Contents
Associating logger to a profile Network coverage and service Initial configuration ThingsLog LPMDL-1101 Normal operation mode & short functional description Readings Flow graph Cumulative graph Data export Normal operation dashboard Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... -
Page 3: Overview
Ability to work in any environment - LPMDL-1101 has IP68 dust and leakage protection and is suitable for any kind of home or industrial usage. -
Page 4: Functional Specification
● Internal antenna: ??? ● Reconfigurability over the air: ability to reconfigure the logger reading and transmission rates over the air ● Secured configuration ● Certified for both industrial and home usage Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... -
Page 5: Safe And Healthy Instructions
Incorrect installation results in violation of warranty conditions and failure of the warranty. An example of improper installation is to connect the pulse or analog input of the device shortly or to a power source Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... - Page 6 When recycling the product and its disposal, local and national legislation and regulations must be observed. If you hesitate, please return the appliance, we will recycle it for you. Table II Health and safety instructions Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com...
-
Page 7: Physical Instalation
5 Physical installation Figure 1 Logger outlook and dimensions Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... -
Page 8: Input/Output Ports
● Attach the corresponding connecting cable input/outputs to the meters/sensors. 6 Input/Output ports LPMDL-1101 has 12 input/output ports. To access the ports unscrew the board from the bottom of the logger enclosure and lift it up. Visit us at www.thingslog.com; (+359) 875 32 80 70;... -
Page 9: User Guide
7 User guide 7.1 Associating logger to a profile 1. In order to perform the intial configuration you should have an account for ThingsLog IoT platform. If you don’t have an account please go to https://iot.thingslog.com/signup and register to the platform. -
Page 10: Network Coverage And Service
6. Once the device is registered you can continue with the initial configuration. 7.2 Network coverage and service In order to work ThingsLog data loggers need network connection. Prior performing the initial configuration ensure that there is GSM network coverage in your area. If you are not sure which network support@thingslog.com. - Page 11 Figure 6 Menu “Devices” 3. From the menu choose “Config” then a similar configuration dialog will appear. Figure 7 Configuration dialog Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com...
- Page 12 This will put the logger into configuration mode and it will try to obtain its configuration from the server. 8. If the logger is able to do so you will be able to see the following message on your screen. Figure 8 Confirmation of successful configuration Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com...
-
Page 13: Normal Operation Mode & Short Functional Description
GSM coverage. If you are not sure that such is available in your area please let us know at support@thingslog.com. But please note that if there is no GSM signal there are only a few things you can do. -
Page 14: Cumulative Graph
Figure 11 Cumulative consumption graph 7.4.4 Data export The system supports readings data export from certain time range in CSV file format. Figure 12 Data export in CSV file format Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... -
Page 15: Normal Operation Dashboard
For example the logger has detected a NON zero consumption over 6 consecutive hours. Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com... - Page 16 24 hours. Could potentially indicate a fault meter. ● DEVICE_REMOVED - alarm indicating that the meter has been disconnected from the logger. ● LOW_BATTERY - alarm indicating that the battery of the logger is under 20%. Visit us at www.thingslog.com; (+359) 875 32 80 70; sales@thingslog.com...
