Summary of Contents for Synergys LeakShooter LKS1000-V3
- Page 1 Version 1.3...
- Page 2 - steam Trap analysis with integrated ultrasonic temperature T° sensors and STRAPSHOOTER ® firmware LKS1000-V3, the first ultrasound detection camera for leak detection, LEAKSHOOTER ® steam trap analysis, designed and developed by LEAKSHOOTER , a department of sYnerGYs ® TeCHnoLoGies (France).
-
Page 3: Table Of Contents
summary ULTrAsoniC TeCHniQUe To FinD GAs LeAKs DesCripTion oF LEAKSHOOTER LKS1000-V3 ® DeTAiLs oF LEAKSHOOTER LKS1000-V3 KiT ® bATTerY CHArGinG swiTCHinG on AnD oFF proCeDUre For FinDinG A LeAK bY sCAnninG TeCHniQUe wiTH Cone proCeDUre For seArCHinG For THe LeAK wiTH THe FLeXibLe roD (opTion) DiFFerenT possibLe MeAsUreMenT sCreens MenU AnD seTTinGs... -
Page 4: Ultrasonic Technique To Find Gas Leaks
ultrasOniC teChniQue tO FinD Gas leaKs COmPresseD air Or Other Gases unDer Pressure / VaCuum when a gas goes from a high pressure state (compressed in a pipe at 6 bars for example) to a low pressure state (leak in a line, with external atmospheric pressure), there is a phenomenon of depression, which creates turbulences. -
Page 5: Description Of Leakshooter

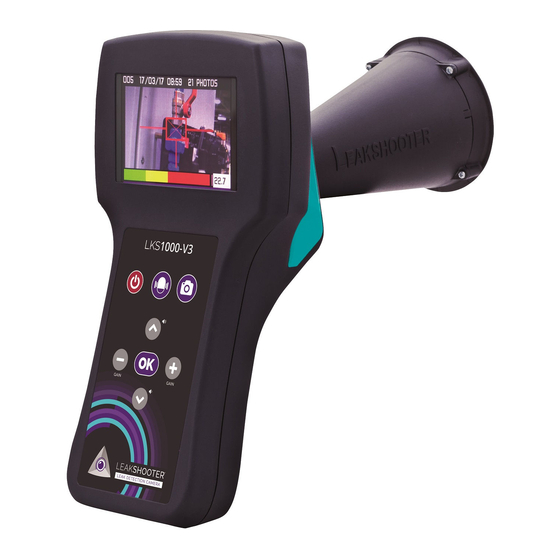

DesCriPtiOn OF LEAKSHOOTER LKS1000-V3 ® Colour screen Keypad Connector top of back Lower part connectors... -
Page 6: Lks1000-V3
Details OF the LEAKSHOOTER ® LKS1000-V3 Kit Abs transport case LKSCASEABS Ultrasonic detection camera LKS1000-V3 Anti-noise headphones with jack cable (snr 31) LKSEAR Universal battery charger LKSPOWER Usb cable for pC LKSUSB User manual LKSMANUAL Optional flexible ROD of 400 mm or 1500 mm and contact probe for LKS1000-V3. -
Page 7: Battery Charging
Battery CharGinG LKS1000-V3 is equipped with a Lithium-ion battery. LEAKSHOOTER ® its capacity is about 6 hours of battery life, depending on the settings of the appliance (camera activated or not, screen brightness, etc.). it must be recharged exclusively with the charger provided in the kit (5V DC, 2A) or with an universal Usb 5V DC, 1 or 2A power supply (pC Usb, car adap- ter Usb) or with the spare LKSBATT external Usb battery (optional) allowing more than 15 hours of autonomy. -
Page 8: Procedure For Finding A Leak By Scanning Technique With Cone
PrOCeDure FOr FinDinG a leaK By sCanninG teChniQue with COne LKS1000-V3 has been designed to display the fusion of LEAKSHOOTER ® images of the scene being scanned and the detected leak on the screen and in real time continuously (ultrasound received = dynamic target present). Depending on the size of the leak (intensity of ultrasonic waves received around 40 kHz), the dynamic target will be in yellow or red colour. -
Page 9: Procedure For Searching For The Leak With The Flexible Rod (Option)
PrOCeDure FOr searChinG FOr the leaK with the FleXiBle rOD (OPtiOn) When you are working on places where access is difficult or on small connec- tors, fittings, etc., it is more efficient to work with the 400 mm or 1500 mm flexible rod than with the cone. -
Page 10: Menu And Settings
! The standard volume is 3-4 /10. synergys Technologies will in no case be responsible for hearing problems in the case of intensive use and high volume of the headphones. Thanks to the efficiency of the LEAKSHOOTER LKS1000-V3 dynamic ®... -
Page 11: Taking Photos With The Leakshooter
if you continue to go down after « Use camera », you can go to seTUp, click it with Valid. . To browse through the menu, use the up and down keys of the keypad. Menu Valid. To modify and confirm a setting, click . -
Page 12: How To Unload The Pictures Into The Pc
deleting a photo (Escape is always possible before confirming the action !) To erase all the photos, choose one in memory : Menu/photos taken and confirm and then press for 2 seconds, confirm Valid. , will erase all the photos. ... - Page 13 Connect the Usb cable to the pC and switch Go to the « Setup » line and confirm on the LKS1000-V3. Your pC displays the images on the screen. Go to « USB Link » and confirm. Copy them. Delete photos via the LKS1000- wait a few seconds V3, not via the pC !
-
Page 14: Steam Trap Program : Strapshooter
steam traP PrOGram : STRAPSHOOTER ® STeAM TRAP ReAL TIMe ANALYSIS & STeAM TRAP AUTo dIAGNoSIS PRoGRAM LKS1000-V3 with integrated Us and T° sensors has a special LEAKSHOOTER ® . You can embedded firmware for STEAM TRAP SURVEYS: STRAPSHOOTER ® hear (with headphone) and see (with graphical curve) what happened inside your sTeAM TrAp in real time (reAL TiMe AnALYsis) and you can also do an auto diagnosis to have a traceability of its condition state (AUTo DiAG). - Page 15 The complete time scale on the screen is 30s and is automatically refreshed, waiting whenever a click to freeze it (Fig. 3). Then, you can measure T° in and T° out by moving always on right direction with button and to measure T°.
- Page 16 Fig. 1 Fig. 2 Then, click on when you are ready to measure. You see now the vertical real time bargraph of the internal ultraso- nic noise made by the sTeAM pre- sence in the TrAp and the hori- zontal “please wait” message (Fig. 5).
- Page 17 • THERMODYNAMIC – MECHANICAL INVERTED BUCKET - THERMOSTATIC sTeAM TrAps are working with a “clear” on-oFF cycle. > AUTo DiAG and reAL TiMe can be used. • MECHANICAL BALL FLOAT is more working with a ”modulated” long cycle. please check for this trap, the presence of real modulation (oK) and T°IN &...
- Page 18 CLAssiC CAses oF TrAp ConDiTion: us result t° in t° Out COnClusiOn ClOSED? Really blocked closed (careful-danger) with constant Us potential water hammer. ClOSED? Not in service (no steam presence) with constant Us Evacuation of large amont of water ClOSED? (probably thermodynamic-thermostatic system with constant Us oK).
- Page 19 3. doWNLoAd FILeS To PC You can review all reAL TiMe AnALYsis or AUTo DiAG results in lKs rePOrts directory. You are allowed to COPY/PASTE/DELETE these “BMP files” coming from this directory to your pC. CAREFUl: BMP photo files coming from LEAKSHOOTER standard leak detection ®...
- Page 20 TeCHnoLoGies has been established in 1996 in France, to offer innovative and professional solutions for preventive and predictive maintenance. sYnerGYs TeCHnoLoGies is the inventor of the ultrasonic visualization concept with the LEAKSHOOTER and of the MCp ® (Machine Condition picture) concept with the VSHOOTER ®...
