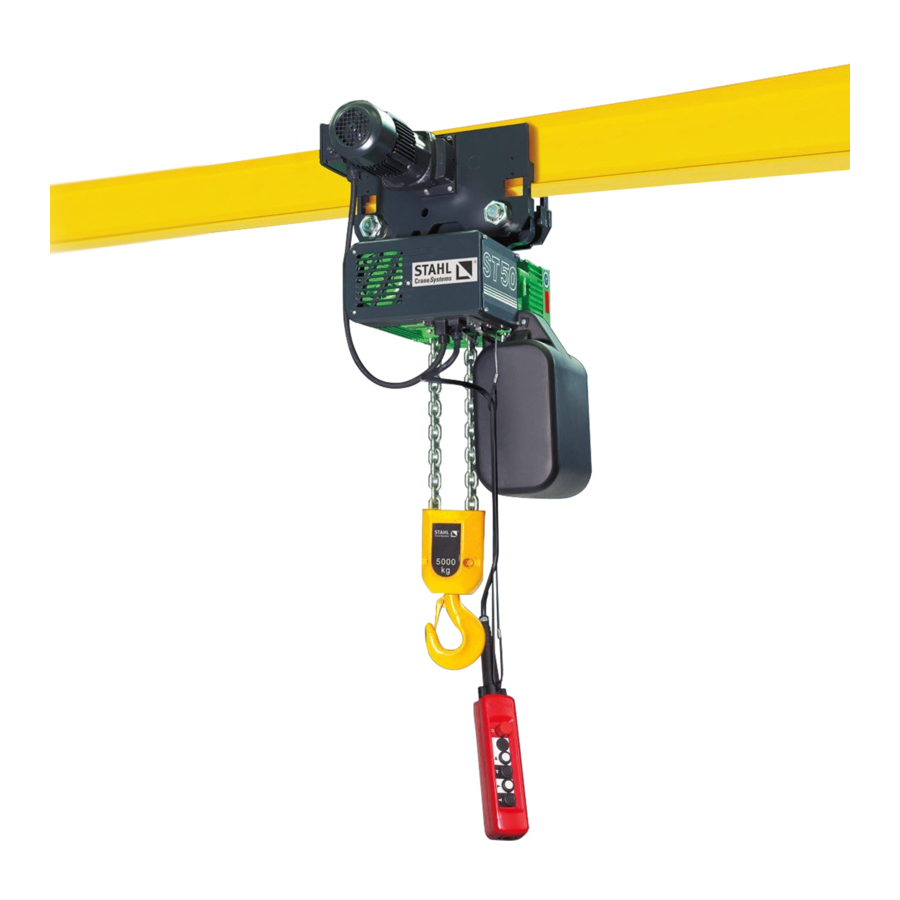

Chain hoists_
ST
Operating and Maintenance Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST Series and is the answer not in the manual?

Questions and answers

Dr. Khurram
July 17, 2025

in case of electric failure can we operate manullay the hoist

0

Subscribe to Our Youtube Channel

Related Manuals for Stahl ST Series

Summary of Contents for Stahl ST Series

  • Page 1 Chain hoists_ Operating and Maintenance Instructions...
  • Page 2 Fundamental information You have purchased a product manufactured by STAHL CraneSystems GmbH. This chain hoist has been constructed in compliance with the applicable standards and regulations. Inspect hoist for damage caused in transit immediately upon delivery. Report damage caused in transit and after consulting the manufacturer/supplier repair or have repaired before installation and commissioning.

  • Page 3: Table Of Contents

    Table of contents Safety instructions Symbols .......................... 4 Operating instructions....................4 Use for intended purpose .................... 5 Safety-conscious operation..................5 Organisational safety precautions................6 Eletrical equipment....................... 6 Warranty......................... 6 Periodic tests......................... 6 2 Getting to know the chain hoist ..............................7 3 Installing Installing stationary chain hoist .................

  • Page 4: Safety Instructions

    1 Safety instructions 1.1 Symbols In these operating instructions, the following symbols indicate particularly important information on risks and safety in operation. Safety at work This symbol marks all information on safety at work where risks to life and limb are entailed.

  • Page 5: Use For Intended Purpose

    1 Safety instructions 1.3 Use for intended purpose • Chain hoists are intended for lifting freely movable and guided loads that cannot tilt. Depending on their design, they are for stationary or mobile use. If loads are to be towed horizontally, or in the case of guided loads, automatic operation, continuous deadweight or constantly repeated hoisting motions, the individual application must be assessed.

  • Page 6: Eletrical Equipment

    Europe, 120 V in North America. c) Version without control: STAHL chain hoists are available without control. The switchgear (e.g. contactors and transformer) are then not supplied. The rectifier for activating the brake remains part of the supply.

  • Page 7: Getting To Know The Chain Hoist

    2 Getting to know the chain hoist 1 Chain drive 2 Motor 3 Gear 4 Slipping clutch 5 Brake 6 Panel box 7 Chain box 8 Plug for control pendant 9 Plug for travel drive 10 Plug for mains connection 11 Socket for control pendant 12 Socket for travel drive 13 Socket for mains connection...

  • Page 8: Installing Stationary Chain Hoist

    3 Installation 3.1 Installing stationary chain hoist Note installation position of suspension eye or suspension hook sketch! (Tightening torque ST05 see page 12) ST05 ST10 - ST60 3.2 Installing trolley 3.2.1 Adjusting trolley to runway flange 1. Adjust play of wheel flanges, see sketch and table 2.

  • Page 9: Installing Trolley On Chain Hoist

    3 Installation 3.3 Installing trolley on chain hoist 1. US-G 10 with ST05 Always suspend chain hoist from centre of trolley. See sketch, page 8 US-G 10 with ST10 Fit suspension piece with suspension bolt (a) to chain hoist. Note installation position of suspension piece.
  • Page 10 3 Installation 3.3 Installing trolley on chain hoist 1. KFN 63 Fit suspension piece with suspension bolt (a) to chain hoist. Observe installation (continued) position of suspension piece for 1/1 and 2/1 reeving! Lock bolt (a) with washer (b) and circlip (c). See sketch KFN 63 2/1 KE-T 22 KFK ..

  • Page 11: Connecting Electric Trolley

    3 Installation 3.4 Connecting electric trolley Plug connection cable into chain hoist and secure. 3.5 Fitting guide rollers KFN / KFK 10/ 32: B 260 KFN / KFK 63 B: 300 3.6 Runway endstop 3.7 Fitting and securing chain box ST 05 ST 10/ ST20/ ST30 ST 32/ ST50/ST60...

  • Page 12: Fitting The Control Pendant

    3 Installation 3.8 Fitting control pendant N.B.: The control pendant must be suspended from from the strain relief wire and not from the cable! Ensure sufficient clearance of the cable to the chain by turning the plug if necessary (±360°)! The cable must not touch the chain. 1.

  • Page 13: Checklist For Commissioning

    4 Commissioning The test before first commissioning must be carried out by a qualified person, see page 2. This applies for all chain hoists with electric trolley. An exception is made for chain hoists with an S.W.L. <1000 kg with push trolley or in stationary design.* (Monorail with push trolley, or stationary attachment.) The following test steps must also be performed when recommissioning after a period in storage or stoppage.

  • Page 14: Duties Of Crane Operator

    Operating chain hoist 5.1 Duties of crane operator When working with chain hoists, the following must be observed: • Every day before starting work, check brakes, load suspension devices and limit switches and inspect the installation for any visible defects. •...

  • Page 15: Operating Control Pendant

    Operating chain hoist 5.2 Operating from control pendant 2-step Emergency stop Lifting/lowering:: 1st step: slow 2nd step: fast Cross travel: right/left 1st step: slow 2nd step: fast Long travel: right/left 1st step: slow 2nd step: fast Safety note If the rocker switch is no longer depressed by the operator, it returns to the 0 posi- tion, the hoist motion is automatically stopped (dead man’s control).

  • Page 16: Maintenance Work

    6 Maintenance 6.1 Maintenance work Maintenance work on the chain hoist may only be carried out by qualified persons. Maintenance work beyond that described in these operating instructions may only be carried out by the manufacturer or trained after-sales service personnel. The maintenance intervals below apply to the corresponding mechanism groups in accordance with FEM 9.511.

  • Page 17: Hook

    6 Maintenance 6.3 Checking hook for wear - DIN 15405 part 1 Check load hook or suspension hook for wear. The hook dimensions must not exceed those specified in the following table. ST05 ST10 ST20 ST30 ST32 ST50/ST60 [mm] [mm] [mm] [mm] [mm]...

  • Page 18: Checking Function Of Slipping Clutch

    6 Maintenance 6.5 Checking function of slipping 1. Without load, run bottom hook block to top or bottom hook position. 2. Allow slipping clutch to slip in top or bottom hook position for a maximum of 3 sec. clutch - without load! The chain must not move, the motor must rotate.
  • Page 19 6 Maintenance ST10/ST 20/ST 30 ST32/ ST50/ST60 ST05 09.07...

  • Page 20: Hoist Motor Brake

    6 Maintenance 6.8 Hoist motor brake Check brake at regular intervals 6.8.1 Checking brake 1. Attach rated load 2. Activate brake during lifting and lowering. Slowing-down paths of up to 10 cm are permissible. ST05 • Measure distance between fan cover and motor shaft 1.

  • Page 21: Oil Change

    6 Maintenance 6.9 Travel motor brake See operating instructions for travel motors 6.10Oil change Dispose of used oil in accordance with environmental regulations. • Change oil while warm if possible. • See "Technical data" for suitable types and quantity. • Replace copper gaskets. •...

  • Page 22: Chain Drive

    7 Repairs 7.1 Chain drive 7.1.1 Replacing load chain Use only original manufacturer chains. Max. chain length, see sticker on chain box. ST05 ST10 - ST60 The welds of the upright chain links must point to the outside over the chain sprocket. 1.
  • Page 23 7 Repairs 7.1 Chain drive (continued) 7.1.4 Replacing single-fall bottom hook block 7.1.5 Replacing two-fall bottom hook block 1. Unscrew chain anchorage. 2. Run chain into new bottom hook block. 3. Refit chain anchorage. 4. Grease moving parts. 5. Run through hook path, check that chain is not twisted. 7.1.6 Replacing return sheave 10.06...

  • Page 24: Hoist

    8 Wearing parts 8.1 Hoist Designa- ST05 ST10 ST20 ST30 ST32 ST50 ST 60 tion Chain 331 005 9 331 006 9 331 001 9 331 004 9 331 004 9 331 013 9 331 023 9 2 Chain drive 32 320 96 30 0 14 320 00 41 0 16 320 00 41 0...

  • Page 25: Classification In Acc. With Fem

    9 Technical data 9.1 Classification in acc. with FEM (ISO) Type (M3) (M4) (M5) (M6) (M7) (M3) (M4) (M5) (M6) (M7) [kg] [kg] ST 0501-8 ST 0501-16 ST 0502-8 ST 0503-6 ST 1004-16 1000 ST 1005-.. 1250 ST 2006-12 ST 2008-16 1000 2000 1600...

  • Page 26: Hoist Motor Data

    9 Technical data 9.3 Hoist 9.3.1 Hoist motor data 50Hz 50 Hz Mains fuse Type Motor type 230V 400V 500V 230V 400V 500V 230 V 400 V 500 V ST 0501-8 2A04 0,88 ST 0501-8/2 2/8A04 0,2/0,05 35/15 120/240 2,3/1,9 1,3/1,1 1,0/0,9 5,7/2,1...

  • Page 27: Travel Motor Data

    9 Technical data 9.3.2 Hoist motor data 60 Hz 60 Hz Mains fuse Type Motor type 400V 460V 575V 400V 460V 575V 400 V 460 V 575 V ST 0501-8 2A04 0,24 0,88 ST 0501-8/2 2/8A04 0,24/0,06 35/15 180/360 1,6/1,3 1,4/1,1 1,1/0,9 4,0/1,5...

  • Page 28: Specifications For Mains Connection

    9 Technical data 9.5 Specifications for mains Specifications for mains connection • All poles of the mains cable must be disconnected by a lockable switch. connecction • The mains voltage must correspond to that stated on the rating plate. • Fixed installed cables e.g. NYM, NYY •...
  • Page 29 9 Technical data 9.5.2 M1ax. length of supply cable Direct control 60 Hz Max. cable length with direct control [m] Chain hoist Stationary *1 With trolley along runway *2 Connecting cable cross-section 1.5 mm² 2.5 mm² 1.5 mm² 2.5 mm² 230 V 400 V 460 V...

  • Page 30: Lubricants

    9 Technical data 9.6 Lubricants ST05 ST10 ST20 ST30 ST32 ST50 ST60 Type of Designation Quantity Lubrication point Characteristics, makes lubricant DIN 51502 CLP 460 ST 10: 700 ml a = Hoist gear 1 Viscosity 460 cSt/40°C, pour point -20°C, flash point +265°C (PG 220) ST 10: 1000 ml*1 e.g.

  • Page 31: Sound Level

    9 Technical data 9.7 Sound pressure level Hoist Sound level at 1 m from chain hoist, averaged out for an operating cycle of 50% with rated load and 50% without load. [dB A] ST05 - ST 60 Travel drives The sound pressure level was measured at a distance of 1 m from the crane. The mean noise level calculated for one operating cycle (50% with nominal load, 50% without load) can be seen from the tables.
  • Page 32 +65 6271 2220 +65 6377 1555 sales@stahlcranes.sg U.A.E. Dubai +971 4 805-3700 +971 4 805-3701 info@stahlcranes.ae Charleston, SC +1 843 767-1951 +1 843 767-4366 sales@stahlcranes.us STAHL CraneSystems GmbH, Daimlerstr. 6, 74653 Künzelsau, Germany Tel +49 7940 128-0, Fax +49 7940 55665, marketing@stahlcranes.com...
