NTI E-SDS-TAA-V2 Installation Instruction

Smoke detection sensor
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

NTI
NETWORK
R
TECHNOLOGIES
INCORPORATED
The E-SDS-TAA-V2 is a smoke detection sensor intended for connection to an NTI E-16D/5D/2D, E-MINI-LXO, E-MICRO-T(RHP) or
E-1W.
(ENVIROMUX) for use in detecting smoke in a server cabinet environment.
V2 will provide signals to the ENVIROMUX that with proper configuration will result in alert messages being sent to the administrator
of the ENVIROMUX.

Features Include:

For warning of smoke.
Photoelectric smoke detector.
Built-in 135°F (57°C) thermal heat sensor provides warning.
Red LED comes ON and smoke detector goes into Alarm mode when temperature reaches 135°F (57°C)
o
Connect to RJ45 or digital input sensor ports.
Supports CAT5/5e/6 UTP or STP cables (14-22AWG).
Voltage Supply: 8.5-35VDC
Current Consumption: 50µA Standby/ 20mA max.@12VDC
Alarm Output: Relay (N.O.)
Screw terminal
o
To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-
terminated end to the sensor screw terminal.
Maximum cable length: 1,000 ft (305 m) using minimum 22AWG wire.
Powered by E-2D/5D/16D or 12VDC 1A AC Adapter.
Regulatory approvals: UL
TAA compliant

Installation

1.
Connect two 16-22 AWG wires (not supplied) from any set of "Digital In" terminals (see below and on next page) on the
ENVIROMUX.
2.
Connect the other end of those two wires to the switch terminals "C" and "N/O" on the smoke detection sensor.
3.
Connect two more 16-22 AWG wires between the "12V" and "
and "GND" terminals on the smoke detector.
4.
Be sure to tighten terminal screws to secure each conductor to the terminal block.
5.
Mount the E-SDS-TAA-V2 where smoke detection is desired.
1275 Danner Dr
Tel:330-562-7070
Fax:330-562-1999
Aurora, OH 44202
www.networktechinc.com
E-SDS-TAA-V2(-P)
SMOKE DETECTION SENSOR
Installation Instruction
When properly connected, the E-SDS-TAA-
Note: The E-SDS-TAA-V2 is NOT
intended to be used as a primary fire
and smoke detection device.
" (ground) terminals on the ENVIROMUX and the "+12V"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-SDS-TAA-V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NTI E-SDS-TAA-V2

Summary of Contents for NTI E-SDS-TAA-V2

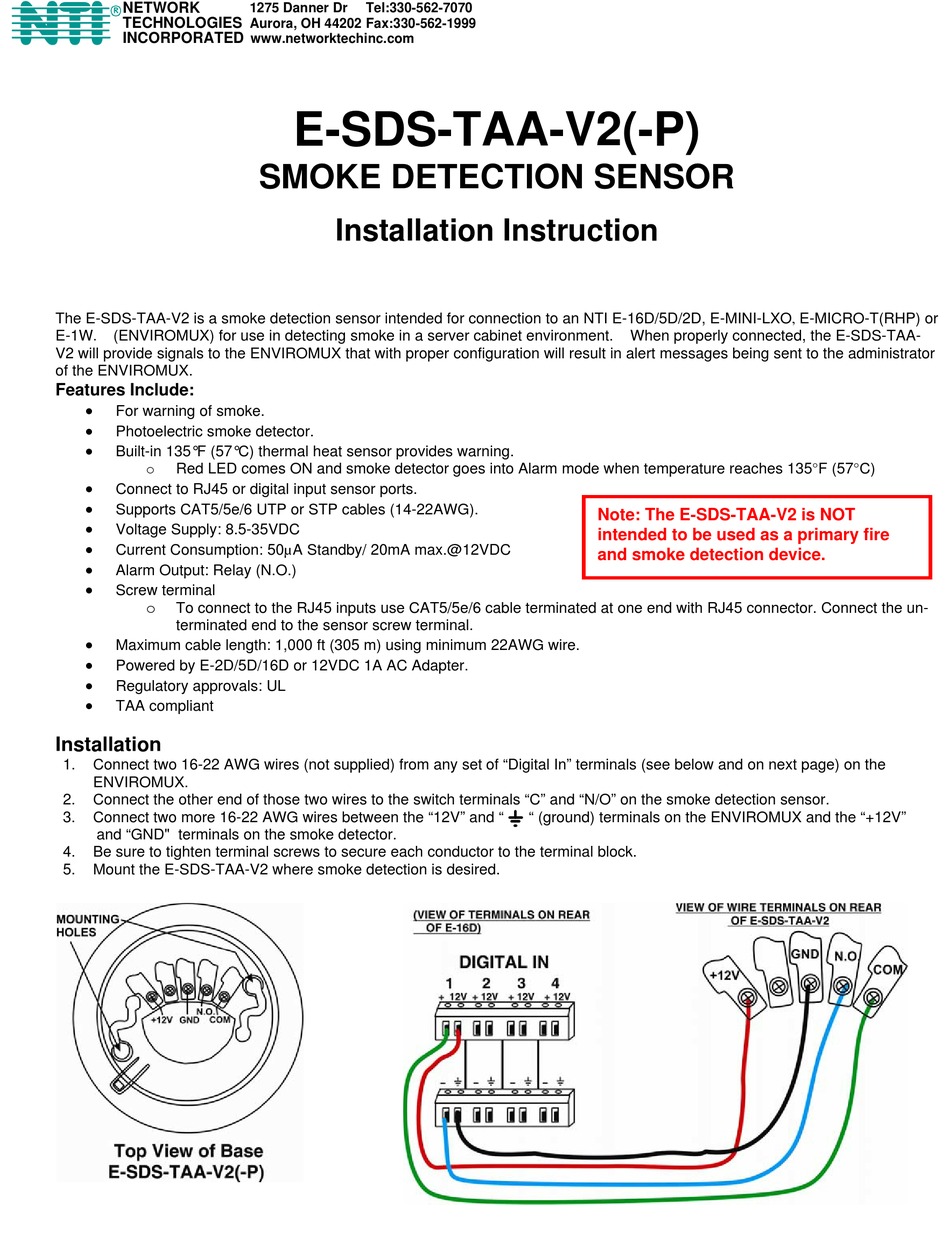

  • Page 1 E-SDS-TAA-V2(-P) SMOKE DETECTION SENSOR Installation Instruction The E-SDS-TAA-V2 is a smoke detection sensor intended for connection to an NTI E-16D/5D/2D, E-MINI-LXO, E-MICRO-T(RHP) or E-1W. (ENVIROMUX) for use in detecting smoke in a server cabinet environment. When properly connected, the E-SDS-TAA- V2 will provide signals to the ENVIROMUX that with proper configuration will result in alert messages being sent to the administrator of the ENVIROMUX.
