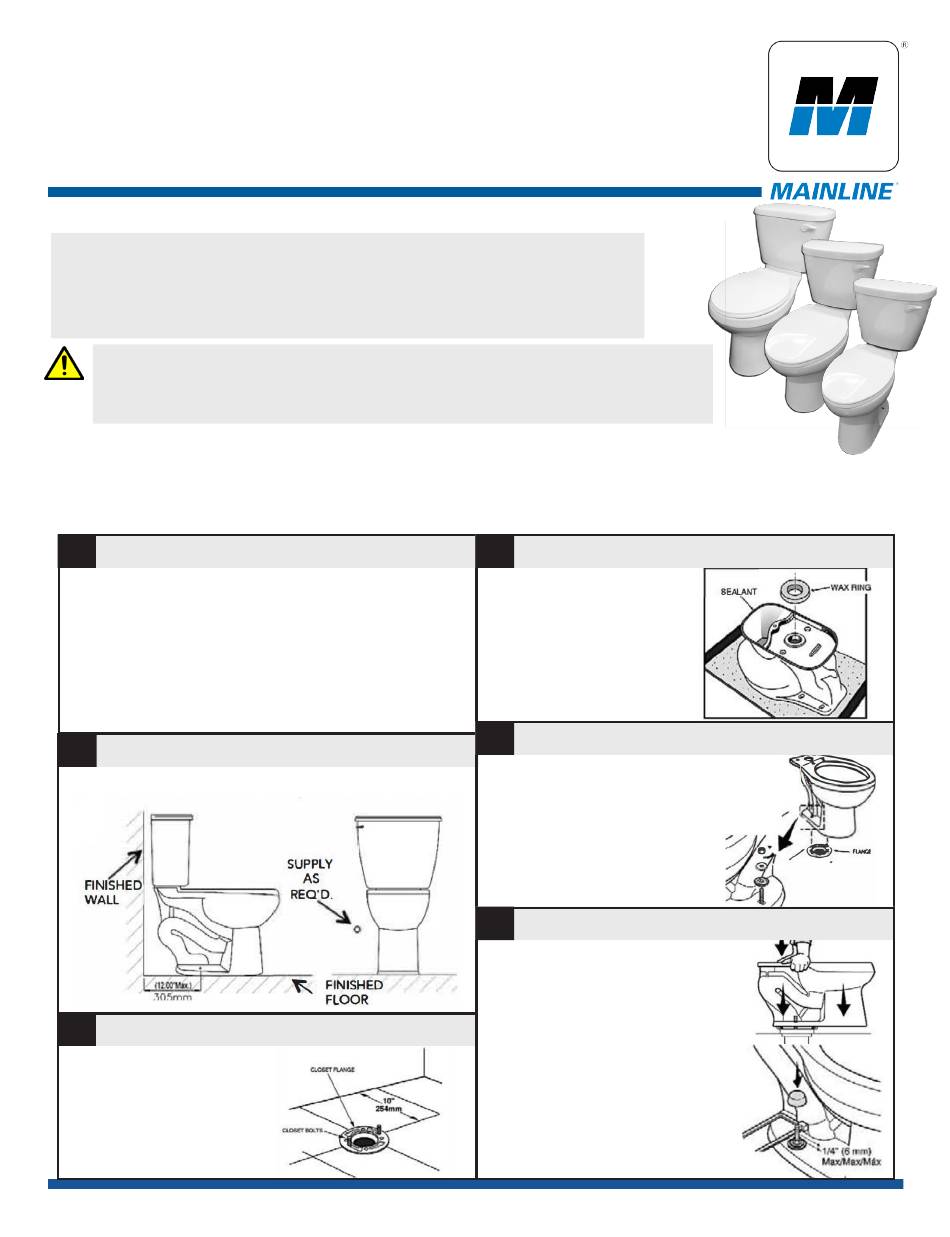

MAINLINE ML100W Installation Instructions Care And Maintenance

Round Front Toilet
Devant de cuvette rond
Installation Instructions, Care and Maintenance
For model: ML100W / ML125W / ML135W bowls
Thank you for selecting Mainline.
To ensure this product is installed properly, please read these instructions carefully
before you begin.
(Certain installations may require professional help.)
Also be sure your installation conforms to local codes.
CAUTION:
PRODUCT IS FRAGILE.
TO AVOID BREAKAGE AND POSSIBLE INJURY, HANDLE WITH CARE!
Recommended Tools and Materials:
• Putty Knife
• Wax Ring/Gasket
• Closet Bolts
1
Remove Old Toilet
a. Close toilet supply valve and flush tank completely.
Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line.
NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste
opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc.
from base area.
NOTE: Mounting surface must be clean and level before new toilet is
installed!
2
Roughing-in Dimensions
NOTE: Distance from well to closet flange centerline. - 12" (305mm)
3
Install Closet Bolts
Install closet bolts in flange
channel, turn 90° , and slide
into place 6" (152 mm) apart
and parallel to wall.
• Screwdriver
• Adjustable Wrench
• Flexible Supply Tube
VITREOUS CHINA
• Sealant
• Level
4
Install Wax Seal
Invert toilet on floor (cushion
to prevent damage), and
install wax ring evenly around
waste flange (horn), with
tapered end of ring facing
toilet. Apply a thin bead of
sealant around toilet base.
5
Position Toilet on Flange
a. Unplug floor waste opening and
install toilet on closet flange so
bolts project through mounting
holes.
b. Loosely install retainer washers
and nuts. Side of washers
marked "THIS SIDE UP" must
face up!
6
Install Toilet
a. Position toilet squarely to wall and, with
a rocking motion, press bowl down fully
on wax ring and flange. Alternately
tighten nuts until toilet is firmly seated
on floor.
CAUTION: DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers. (If necessary,
cut bolt height to size before installing
caps.)
c. Smooth off the bead of sealant around
base. Remove excess sealant.
• Tape Measure
• Hacksaw
