- Page 1 December 2019 Silvair Lighting Evaluation Kit User manual Date: 13. 12. 2019 Rev. 4 www.silvair.com ...
- Page 2 prior written consent of SILVAIR. In doing so, you may not remove or alter, or cause to be removed or altered, any ...
- Page 3 indicated in writing, SILVAIR reserves the right to make any changes to the information in this document or to ...
-
Page 4: Table Of Contents
business@silvair.com www.silvair.com p age 3 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 5: Introduction
1. Introduction The Silvair Lighting Evaluation Kit is a modular development kit designed to help you develop your own smart lighting products based on qualified Bluetooth mesh technology. It contains a number of components that can be mounted onto the main evaluation board. Over time, we ... -
Page 6: Hardware
business@silvair.com www.silvair.com p age 5 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -

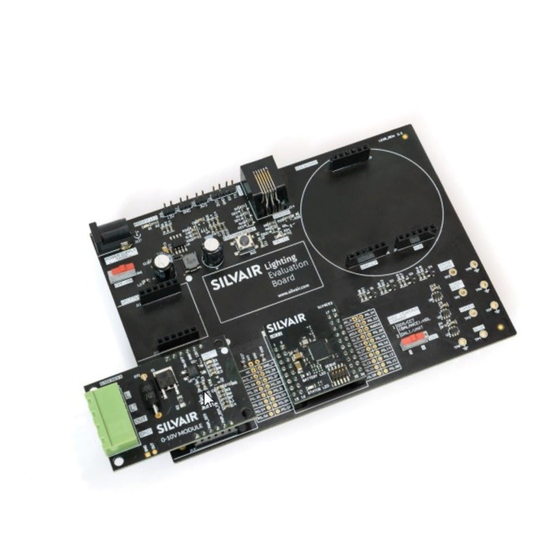

Page 7: Silvair Lighting Evaluation Board
Rotary switch to select lighting options (SW2) PWM signal test points (not used) Sensor interface RJ-12 business@silvair.com www.silvair.com p age 6 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 8: Silvair Light Module
Lighting Evaluation Board connector Lighting Evaluation Board connector Debug connector Status LED Battery LED business@silvair.com www.silvair.com p age 7 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 9: Led Board
Legend: LEDs Lighting Evaluation Board connector Lighting Evaluation Board connector business@silvair.com www.silvair.com p age 8 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 10: 0-10V Module
OUT, GND Output to connect 0-10V Dimming Control of external LED driver business@silvair.com www.silvair.com p age 9 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 11: Configuration
3. Configuration The kit is designed to provide everything you need to test the Silvair technology, including a light source (LED Board for standalone mode). However, if you want to control your own 0-10V driver, insert the 0-10V Module into the appropriate socket (external device mode) and ... -
Page 12: Basic Hardware Setup
2. Select the lighting option [1 | DIM] using the linear switch (SW2). This allows the Silvair Lighting Evaluation Board to distribute the signals correctly for different firmware types. Currently, options 2 and 3 (UART and DALI) are available, HSL - is not available yet. ... -
Page 13: Standalone Mode
3.2 Standalone Mode In standalone mode, the LED Board is controlled via the PWM signal generated by the Silvair Light Module. No external driver or light source is needed. To configure the Kit for standalone mode, insert the LED Board included in the Evaluation Kit firmly into the socket. ... - Page 14 H andle with extreme caution! You can now use the Silvair Platform to commission the LED driver via the Silvair Lighting Evaluation Board. Please refer to the S ilvair Commissioning User Manual f or further instructions. ...
-
Page 15: Connect The Power
3.4 Connect the power To power up the Silvair Lighting Evaluation Board, connect the USB power supply cable provided with the kit to the POWER SUPPLY 12VDC socket and turn on the OFF-ON switch. If the POWER LED is on, it indicates a properly supplied board and you can proceed to ... -
Page 16: Silvair Lighting Evaluation Kit - Schematic
SF-106 Silvair Lighting Evaluation Kit User manual 4. Silvair Lighting Evaluation Kit - schematic business@silvair.com www.silvair.com p age 1 5 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 17: Document Revisions
San Francisco, CA 94103 POLAND USA business@silvair.com www.silvair.com p age 1 6 Copyright © 2020 by SILVAIR, Inc. and SILVAIR group companies (“SILVAIR”). All Rights Reserved. ... -
Page 18: Appendix A: Terms & Conditions
Street, Suite 100, San Francisco, CA 94103 USA acting on behalf of itself and its affiliates, (collectively “Silvair”). The Silvair Lighting Evaluation Kit shall be understood as any portion of the whole (i.e. the hardware products contained in the Silvair Lighting Evaluation Kit and/or any software provided with the Silvair Lighting Evaluation Kit). ... - Page 19 ● except as expressly provided in above Subsection (A) alter, adapt, modify, create derivative works of, or translate the Silvair Lighting Evaluation Kit in any way for any purpose, including without limitation error correction (except to the extent applicable ...
- Page 20 Third Party Software documentation or license agreement. 7. Warranty Disclaimer . The Silvair Lighting Evaluation Kit is provided “As Is” and possibly with faults. Silvair is under no obligation to provide updates, upgrades, support, or maintenance of any kind under this Agreement. ...
- Page 21 User’s execution of the Agreement and which is not due to causes for which Silvair is responsible. ...
- Page 22 Convention on Contracts for the International Sale of Goods. ” 16. Notices. All required or permitted notices to Silvair under this Agreement will be in writing, make reference to this Agreement, and be delivered by hand, or dispatched by ...
