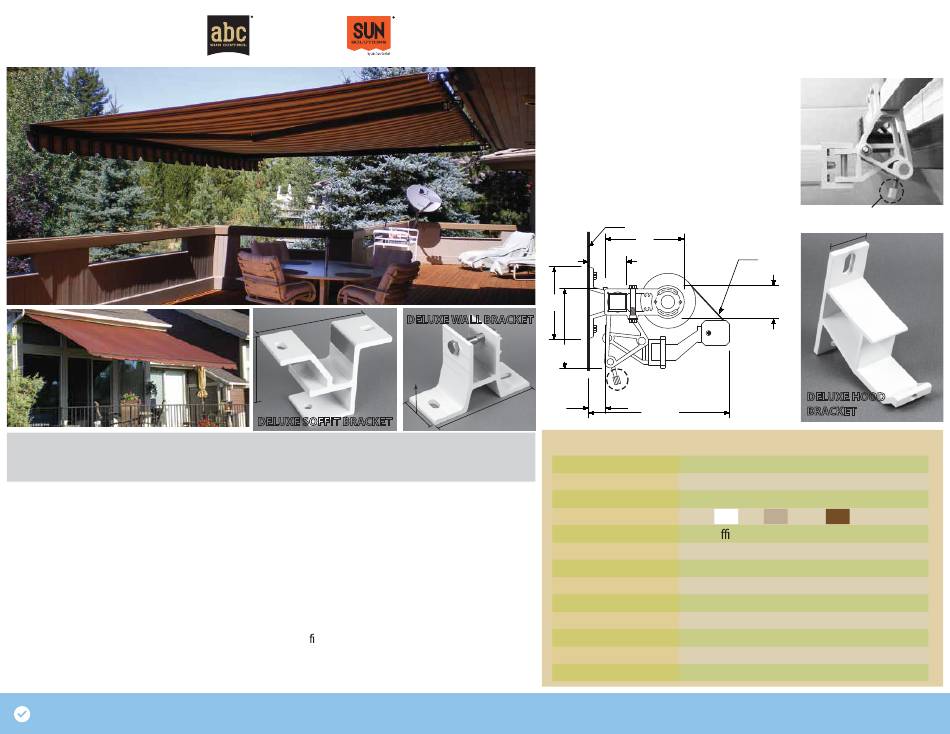

SunSolutions Deluxe
Crank Operated Folding Arm Awning System
The abc Deluxe lateral arm retractable awning is based on the enhanced system developed in Sweden by EGE Westin AB. This system
incorporates the latest advancements including a variable pitch adjustment for the arms and an energy absorbing shoulder. abc
imports the critical components of this system from EGE Sweden, and assembles them at our North Hollywood factory to produce
one of the most reliable time proven lateral arm awning systems available today.
Hardware is available in White, Sand and Bronze colors.
Standard operation is by smooth German Geiger bevel gears and crank, or by optional Somfy 500 or 600 series motors depending of
the size of the unit. Motors can be operated by switch or remote control, or integrated into other automated controls.
Arms are constructed utilizing double tensioned springs connected to the forearm with stainless steel chain.
The torsion bar, front bar, roller tube, wall and hood brackets and arm pro les are all manufactured with powder coated extruded
high quality aluminum.
Options include: Heavy gauge extruded aluminum hood and retractable valance.
AWNING>OPEN ROLLER>FOLDING ARM
5.685"
DELUXE WALL BRACKET
3.9"
2.375"
DELUXE SOFFIT BRACKET
WALL FIX REQUIRED SPACE
WALL
6"
3-1/4"
6"
6-3/4"
5/8" PITCH ADJUSTMENT
1-1/2"
6"
9-3/4"
PRODUCT SPECIFICATIONS
Linear Width
Projection
Frame Finish
Frame Colors
Mounting Options
Roller Tube
Torsion Bar
Pitch Adjustment
Fabric Protection
Unit Operation
Retractable Valance
Fabric Options
Valance Options
5/8" PITCH ADJUSTMENT
1.3"
Screen
Material
2-1/2"
DELUXE HOOD
BRACKET
5'1" – 40'
4'1", 5'9", 6'10", 8'6", 10'2", 12'
Polyester Powder Coated
White
Sand
Bronze
Wall, So t, Roof
78 mm
35 mm
0º – 45º
Optional Hood with Side Covers
Manual Geiger Bevel Gear or Somfy Motor
Manual or Motorized- 4' Drop
100% Solution Dyed Acrylics
9 standard choices or dealer custom design
