KNX B4-UP
Button Interface
Item number 70250
Installation and Adjustment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX B4-UP and is the answer not in the manual?

Questions and answers

Related Manuals for Elsner KNX B4-UP

Summary of Contents for Elsner KNX B4-UP

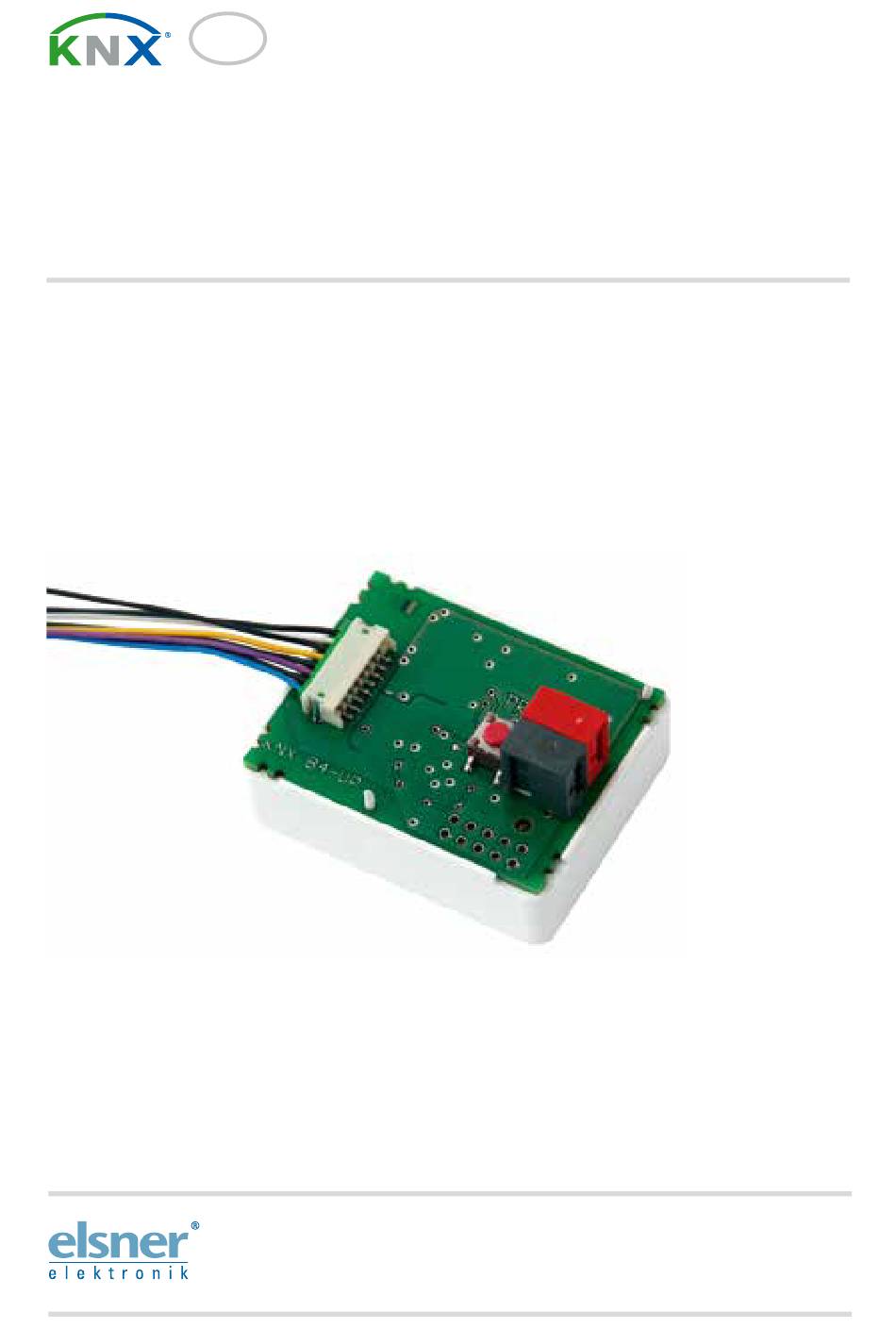

  • Page 1 KNX B4-UP Button Interface Item number 70250 Installation and Adjustment...

  • Page 2: Table Of Contents

    4.3.1. Control modes for drive control ..............12 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany KNX B4-UP button interface • from software version 0.1.0, ETS programme version 1.0 Status: 24.08.2016 • Subject to technical changes. Errors excepted.
  • Page 3 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.

  • Page 4: Description

    Installation, testing, operational start-up and troubleshooting should only be performed by an electrician. CAUTION! Live voltage! There are unprotected live components inside the device. • National legal regulations are to be followed. KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.

  • Page 5: Installation Location

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions.

  • Page 6: Device/Connection Design

    (4x): - ("minus") Binary contact coupling white: contact 1 Plug binary contact cable yellow: contact 2 Binary contact connecting wires pink: contact 3 blue: contact 4 KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.

  • Page 7: Transfer Protocol

    [18.1] DPT_Scene- 1 byte Control Input 2 - Block Input -WC- [1.3] DPT_Enable 1 bit Input 3 - Extended Input / RWCT [1.8] DPT_UpDown 1 bit Output KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 8 R-CT [9.4] DPT_Value_Lux 2 bytes encoder Input 4 - Scene Output R-CT [18.1] DPT_Scene- 1 byte Control Input 4 - Block Input -WC- [1.3] DPT_Enable 1 bit KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.

  • Page 9: Parameter Settings

    0. When activating and deactivating the block, a telegram can be sent to the bus in each instance. There is no cyclic transmission while the block is active. Use blocking objects No • Yes KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 10 If a button with switch function is assigned to the input, select the bus function "Changeover Switch" and specify if the button should switch when pressed/released. Function Changeover Switch KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 11 Function Dimmer Button function brighter • darker • brighter/darker Time between switching and dimming 1...50; 5 (in 0.1 s) Repeat the dimm command no • yes KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 12 Blocking objects block the input at 1 and release it at 0. Nothing is transferred to the bus while the block is active. Use blocking objects No • Yes KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.

  • Page 13: Control Modes For Drive Control

    The time difference between "short" and "long" and the repeat interval is set individually. Control mode Standard inverted Behavior during button operation: short = Up or Down long = Stop/Step KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 14 0 s • 2 s; 2 s Dead man's switch: The drive moves as soon as the button is pushed and stops as soon as the button is released. KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 15 Parameter settings Control mode Dead man's switch Behavior during button operation: Push button = Up or Down command Release button = Stop command KNX B4-UP button interface • Status: 24.08.16 • Technical Changes and Errors excepted.
  • Page 16 Elsner Elektronik GmbH Control and Automation Technology Sohlengrund 16 75395 Ostelsheim Phone +49(0)70 33/ 30945-0 info@elsner-elektronik.de Germany +49 (0) 70 33/ 30945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
