EXOSPF and Adapter Instruction Manual Item #: EXOSPF WARNING: The lens contains lead that may be harmful. LR41 1.5V INCLUDED Wash hands after touching. WARNING: WARNING: Contains button or coin cell battery. This product can expose you to lead, which is known to the State of Hazardous if swallowed California to cause cancer and birth defects or other reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW THE INSTRUCTIONS BEFORE USE. KEEP THESE INSTRUCTIONS FOR LATER USE. • SUN WARNING: WARNING – NEVER ATTEMPT TO OBSERVE THE SUN WITH THIS DEVICE! OBSERVING THE SUN – EVEN FOR A MOMENT – WILL CAUSE INSTANT AND IRREVERSIBLE DAMAGE TO YOUR EYE OR EVEN BLINDNESS.

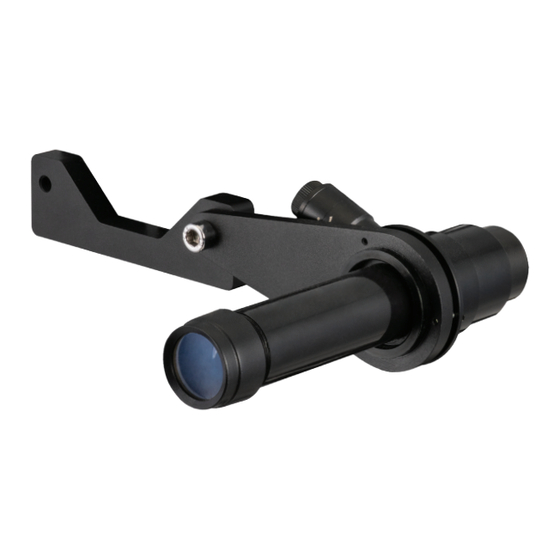

Parts Overview Parts List 1. Polar finder with Illuminated Reticle 2. Illuminator 3. Illuminator ON/OFF and Brightness Adjustment 4. Pivot Collar with Three Collimation Screws 5. Tear Drop Bracket 6. Adapter Bolt 7. iEXOS-100 Adapter 8. Eyepiece Tools Needed (Not Included): 2mm Hex Wrench 4mm Hex Wrench Small Phillips Screwdriver...
Page 4
Assembly Illuminated Polar Alignment Viewfinder Normally, a rough alignment with the celestial pole is sufficient for visual purposes. However, for those observers who need to meet the more demanding requirements of astrophotography, this polar alignment viewfinder allows the iEXOS-100 mount to be more precisely aligned with the celestial pole.
Page 5
Assembly 4. As shown in Figure 3, the disc with the knurled edge (#3) is used to turn the illuminator on and off and to adjust the brightness. It also covers Figure 3 the battery housing. 5. As shown in Figure 4, attach the tear drop bracket (#5) to the adapter (#7) using the large bolt...
Page 6
Polar Alignment Process Prior to using the polar finder to locate objects in the night sky, you will need to make sure it is aligned with your mount. This process is best done during the day. NOTE: Please refer to the iEXOS-100 PMC-Eight Manual as needed to identify the parts of the mount referenced in the following procedure.
