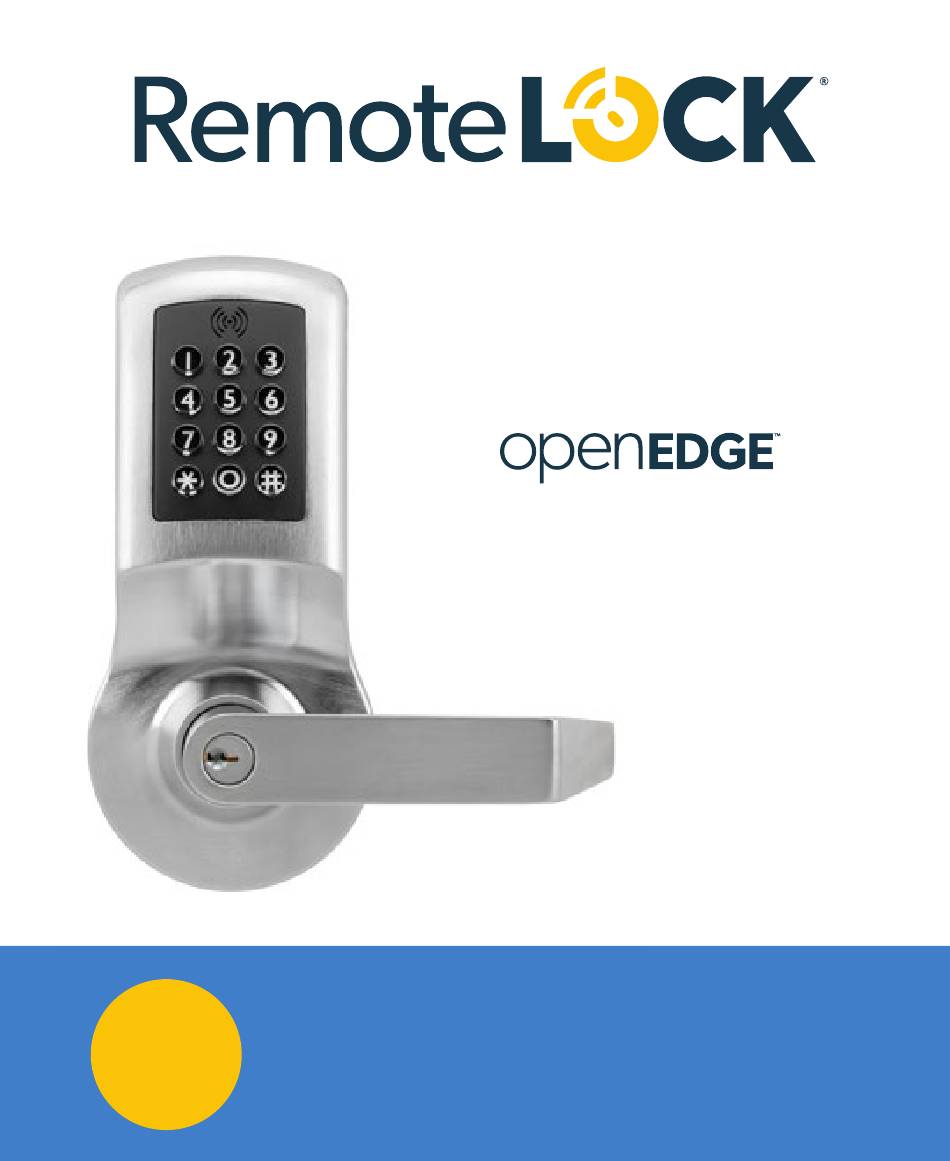

- Page 1 800 SERIES HEAVY DUTY COMMERCIAL LEVER Hardware Installation Do this first:...
-
Page 2: Need Some Help
Power Drill 2-⅛” Hole Saw (optional if the door is not preconfigured Visit us online. with this hole) support.remotelock.com 1” (25mm) Drill Bit (for the middle hole and edge borehole if the door is not preconfigured) ⅜” (10mm) Drill Bit... - Page 3 For additional installation instructions and Use this Hardware Installation troubleshooting tips, be sure to visit our online Guide to get your lock installed. support site: support.remotelock.com. Get connected. Use the Connection Guide to get your lock online and registered. Take control.
- Page 4 Drilling new holes? Let’s get Most doors will have an existing hole drilled for a started. lever installation. If your door needs to be drilled, you’ll need to drill a 2 ⅛“ (54mm) face bore hole for the lockset on the face of the door, as well as a 1” edge bore hole for the latch on the edge of the door.
- Page 5 Position the template. STEP 1 Exterior of Door Crease the template along Door Edge dotted line. Place the template on the door and position with the existing face bore hole. Once the template is aligned, tape it to the door. Quick Tip View the template from the other side of the...
- Page 6 Mark carefully and drill. STEP 2 Exterior of Door Use a thumbtack or sharp object to mark the center of each hole you will drill. Mark the seven holes on the exterior of the door. Then apply the template to the Interior of Door other side of the door and mark the holes from this side as well.
- Page 7 Remove the template. Make sure the markings are aligned precisely from one side of the door to the other and double check all the measurements and markings before drilling. Use a chisel to create the shallow notches on each side of the face bore hole.
- Page 8 Repeat these steps for the 1” middle hole. Drill the 1” holes halfway through on the first side. Then drill the remaining half from the other side of the door. 1” (25mm) Drill Bit...
- Page 9 Confirm door thickness STEP 3 Remove Lock Place on Door and adjust. The lock body comes prepped for a 1 ¾” thick door. Ensure the setup is correct by removing the lock body from the lock housing and inserting the lock body in the face bore hole.
-
Page 10: Install Latch
Install latch. STEP 4 Exterior of Door Install the latch using the screws provided, with the bevel towards the door frame. Quick Tip Make sure the latch plate lays flush with the door. If the latch plate is not flush with the door, draw an outline around the faceplate edge and chisel a rebate to allow the latch to lay flush with the door edge. - Page 11 Confirm lock handing. STEP 5 PLEASE NOTE: Locks are supplied right handed. To reverse lock handing, perform the following steps. If handing is correct, move onto STEP 6. To Reverse Outside Handle: A. Turn key clockwise to vertical position. B. Depress the lever catch with the pin wrench provided. C.
- Page 12 Turn key counter-clockwise and remove. Quick Tip You will see your lock’s serial and model number on the RemoteLock sticker on the back of the lock. Write it down or take a picture for your records. This number is needed during online registration after...
- Page 13 To Reverse Inside Handle: A. Depress the lever catch with the pin wrench provided. B. Pull off lever. C. Remove the lever spring cage from the inside housing, rotate 180 degrees, then place back into the housing. D. Position the lever in the left-hand position and slide onto lever spring cage.
- Page 14 Place the outside lock. STEP 6 Exterior of Door Slide the lock body into place on the outside lock assembly, ensuring that the slide clip of the retractor is facing the latch side of the door. Install the outside body and lock assembly. Take care to RETRACTOR thread the upper three cables through the cable hole in the SLIDE CLIP...
- Page 15 Install interior rose STEP 7 Interior of Door mounting plate. Place the interior rose mounting plate over the spindle, ensuring that the cable hooks are on top and the motor cable passes through one side of the center hole. The interior rose will be secured in a later step with screws.
- Page 16 Install battery mounting STEP 8 Interior of Door plate. Place the battery mounting plate against the interior of the door, passing power cables and antenna through the hole in the center of the plate. Pass two inner mounting bolts through the top of the mounting plate and door and tighten into the outside lock.
-
Page 17: Connect Wires
Connect wires. STEP 9 Connect the red outside cable to the red battery plug. Also connect the black outside cable to the black motor plug. Push any excess cable back into the hole through the door. IMPORTANT: Make sure cables are not pinched. Utilize the cable hooks as shown. - Page 18 Install interior lock. STEP 10 Interior of Door Remove the battery cover from the interior lock body if still secured. Pass the antenna cable through the battery cover opening and position the interior lock body over the lever retractor spindle, ensuring it fits flush on the door. Secure the interior lock with two through mounting bolts above and below the lever and two short mounting bolts at the top of the lock.
- Page 19 Install batteries and STEP 11 battery cover. Install four AA batteries into the battery compartment. Plug the antenna cable into the antenna plug on the battery cover. Push the plug firmly until you feel and hear it click into place. Fit battery cover into place and secure with screw provided.
-
Page 20: Operational Check
Operational Check STEP 12 Exterior of Door Exterior of Door Before closing the door, check the operation of the lock. Depress the internal lever to retract the latch. Ensure that the latch retracts, then fully springs back into place. Test the outside of the lock by entering the default code 1234#. - Page 21 Congratulations! Next: Your lock is Use the now installed. Connection Guide to finish setup.
- Page 22 Auto-Lock Delay: 5 Seconds can easily control your lock, add and manage access Keypad Sound: Enabled codes with the RemoteLock app. Heartbeat Interval: 1 Hour For a complete list of manual programming options, visit Card Reader: Off (Enable with 381 or 382 function)
-
Page 23: Programming Functions
Most of these settings can be updated The keypad can be used to program lock functions. online in the RemoteLock portal. After installing and These functions can also be performed remotely from connecting your lock to Wi-Fi, please register your lock the RemoteLock app. - Page 24 Function Codes (cont.) Once set, the default User Code will be disabled after your Local User Code is created. If successful, you will see two green flashes and hear two beeps. If an error was made, you will see a red flash. 120: Delete Local User Code If you would like to remove your Local User Code, enter the following on the lock’s keypad:...
- Page 25 Function Codes (cont.) ADDITIONAL FUNCTIONS 131: Erase all user codes, except 1234 default. 381: Enable Card/Fob Reader (Always On) This function turns on the card/fob reader on the 135: Perform a factory reset. Careful, this will delete all codes, schedules and events. lock.
- Page 26 Notes 380: Turn off SmartCard reads. 381: Turn on Always Scanning For Cards mode. 382: Turn on Only Read Card On Keypress. 390: Require # to be pressed after a user code is entered. 391: Removes the requirement to enter # after a user code.
