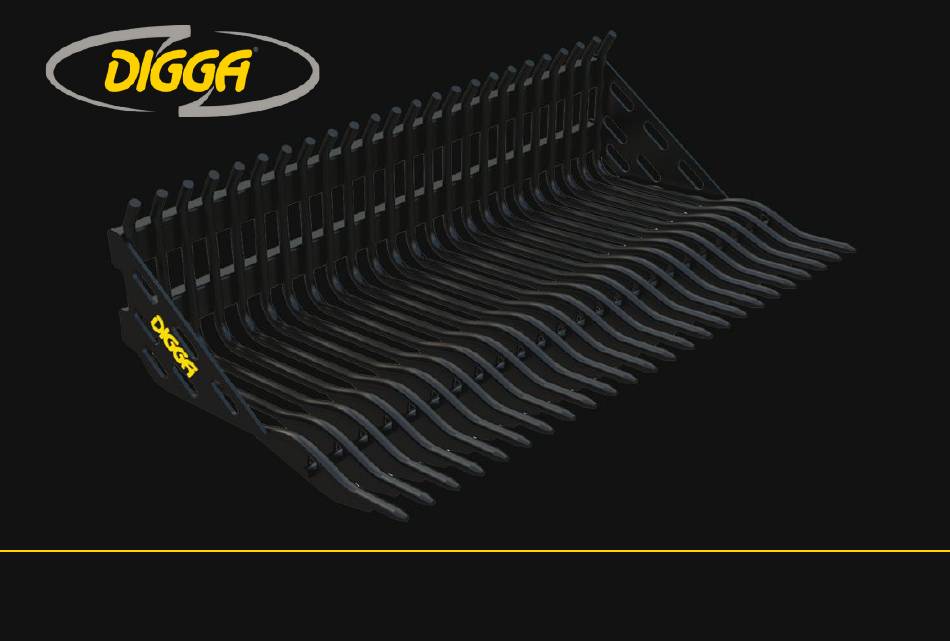

- Page 1 ROCK BUCKET OPERATORS & PARTS MANUAL PM-000123-A...
-
Page 2: To The Purchaser
Your Digga Rock Bucket is a user non serviceable part. Unauthorised disassembly will void warranty. All service and warranty must be performed by an authorised DIGGA service agent. To facilitate warranty or service, record the model and serial number of your unit in the space provided on this page. -
Page 3: Table Of Contents
TO THE PURCHASER............... TABLE OF CONTENTS............... 3 PREPARATION FOR USE..............4 INSTALLATION AND OPERATING INSTRUCTIONS......5 MAINTENANCE.................. 7 SAFETY STICKERS - LOCATION............7 TROUBLESHOOTING................. 7 SAFETY PRECAUTION............... 8 SPARE PARTS..................11 WARRANTY..................12 MODELS COVERED IN THIS MANUAL ROCK BUCKET... -
Page 4: Preparation For Use
PREPARATION FOR USE To avoid any inconvenience before operation, please check that you have received the following item/s which you have ordered. Items may differ depending on type of machine the Rock Bucket is to be fitted to. ROCK BUCKET ROCK BUCKET &... -
Page 5: Installation And Operating Instructions
1. Ensure the floor of the Rock Bucket is horizontal and level with the ground. 2. Align the Rock Bucket with the rocks to be moved and scoop under the rocks and tilt the bucket up once sufficient volume has filled the bucket. -
Page 6: Maintenance
Use extra care when loading or unloading the machine onto a trailer or truck. Disconnect hydraulic couplers during transportation. MAINTENANCE The key feature of your Digga Rock Bucket is low maintenance. It contains no user serviceable parts, unauthorised disassembly will void warranty. -
Page 7: Safety Stickers - Location
(Rectangular Hollow Section) DE-000781 DIGGA LOGO - PLATED 7 TROUBLESHOOTING ROCK BUCKET TROUBLE POSSIBLE CAUSE REMEDY Abuse / Used for incorrect applications. Contact your local Digga dealer. Damage to Bucket Bucket not fitting to parent machine correctly Contact your local Digga dealer. -
Page 8: Safety Precaution
Do not paint over, remove or deface any safety signs or warning decals on your equipment. Follow all safety decals. Keep them clean and replace them if they become worn, damaged or illegible. PM-000123-A - Rock Bucket Operators Manual - April 2018... - Page 9 19. Site workers are not allowed on/in Rock Bucket/Rock Bucket with Grapple while it is in operation or the equipment is being moved. 20. Controls must be engaged slowly until hydraulic fluids and the unit are up to operating temperature. This is critical during cold weather.
- Page 10 • Make certain that all protective guards, canopies, doors, etc., are in place and secure. WHEN OPERATING THIS PRODUCT IN ACCORDANCE WITH DESIGN INTENTIONS • Never use Rock Bucket on a Loader that is not equipped with a cab or ROPS (Roll Over Protect Structure), and operator restraints (seat belts or equivalent devices).
-
Page 11: Spare Parts
SPARE PARTS For further information on spare parts please contact one of the Digga sales offi ce below your closest authorised Digga Dealer. DIGGA INTERNATIONAL SALES OFFICES ASIA PACIFIC NORTH AMERICA EUROPE DIGGA HEAD OFFICE - BRISBANE DIGGA NORTH AMERICA... -
Page 12: Warranty
Digga may request defective product or products be returned prepaid to them for inspection at their place of business or to a location specified by Digga. The warranty will be considered void if the product or any part of the product us modified or repaired in any way not expressly authorized by Digga, or if closed components are disassembled prior to return. - Page 14 PM-000123-A - Rock Bucket Operators Manual - April 2018...
- Page 16 PM-000123-A - Rock Bucket Operators Manual - April 2018 PM-000123-A...
