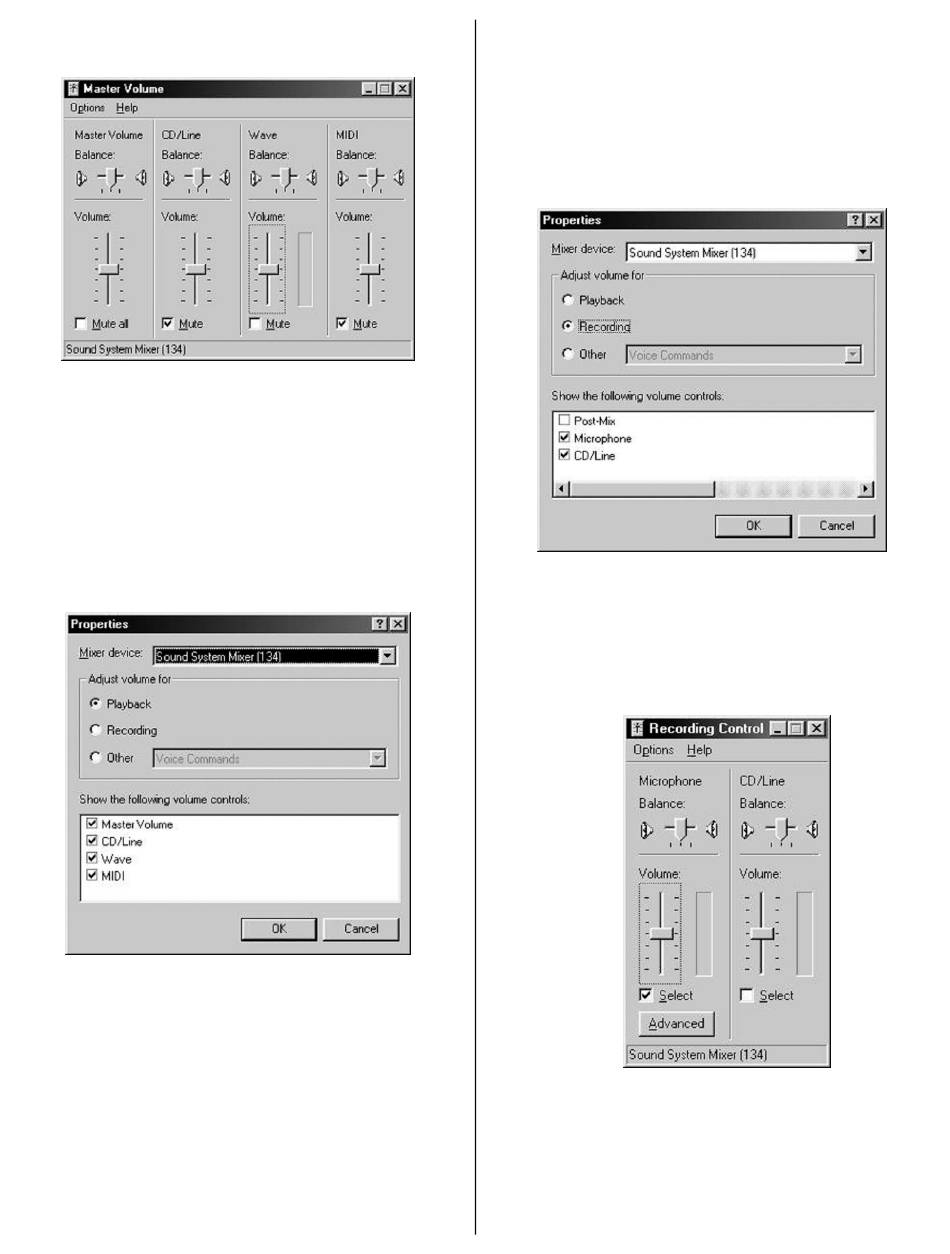

Tigertronics SignaLink SL-1+ Installation & Operation Manual page 11

Volume Control panel should look similar to the one
shown below:
Figure 1 Volume Control Panel
·
From the Options menu, select Properties to display the
Properties page. In the Adjust Volume For window,
select Playback.
·
In the Show the following volume controls window,
verify that the Master Volume and Wave controls are
selected. The Properties Page should look like the one
shown in Figure-2.
control may be labeled Volume Control .
Figure 2 Sample Properties Page
·
Click OK to close the properties page. The Playback
volume controls should now be displayed.
·
Set the Master Volume and Wave controls to 1/2 of full
volume. Verify that the Master Volume and Wave
Level controls are NOT muted. The Balance controls
should be left in their center position.
Note that the Master Volume
·
From the Options menu, select Properties to display the
Properties page. In the Adjust Volume For window,
select Recording.
·
In the Show the following volume controls window,
verify that the Microphone box is checked. When you
are done, the Properties Page should look similar to the
one shown below.
Figure 3 Record Properties
·
Click OK to close the properties page. The Volume
Control panel should now show only the Recording
controls, and should look similar to the picture shown
below.
Figure 4 Record Level Controls
·
Set the Sound Card s Master Volume and Microphone
Level controls to mid range. Verify that these controls
are Selected by the Select check box below each
control. If only one level control can be selected at a
time, then select the Microphone input.
11
