Summary of Contents for Hexagone Quick Vac Classic

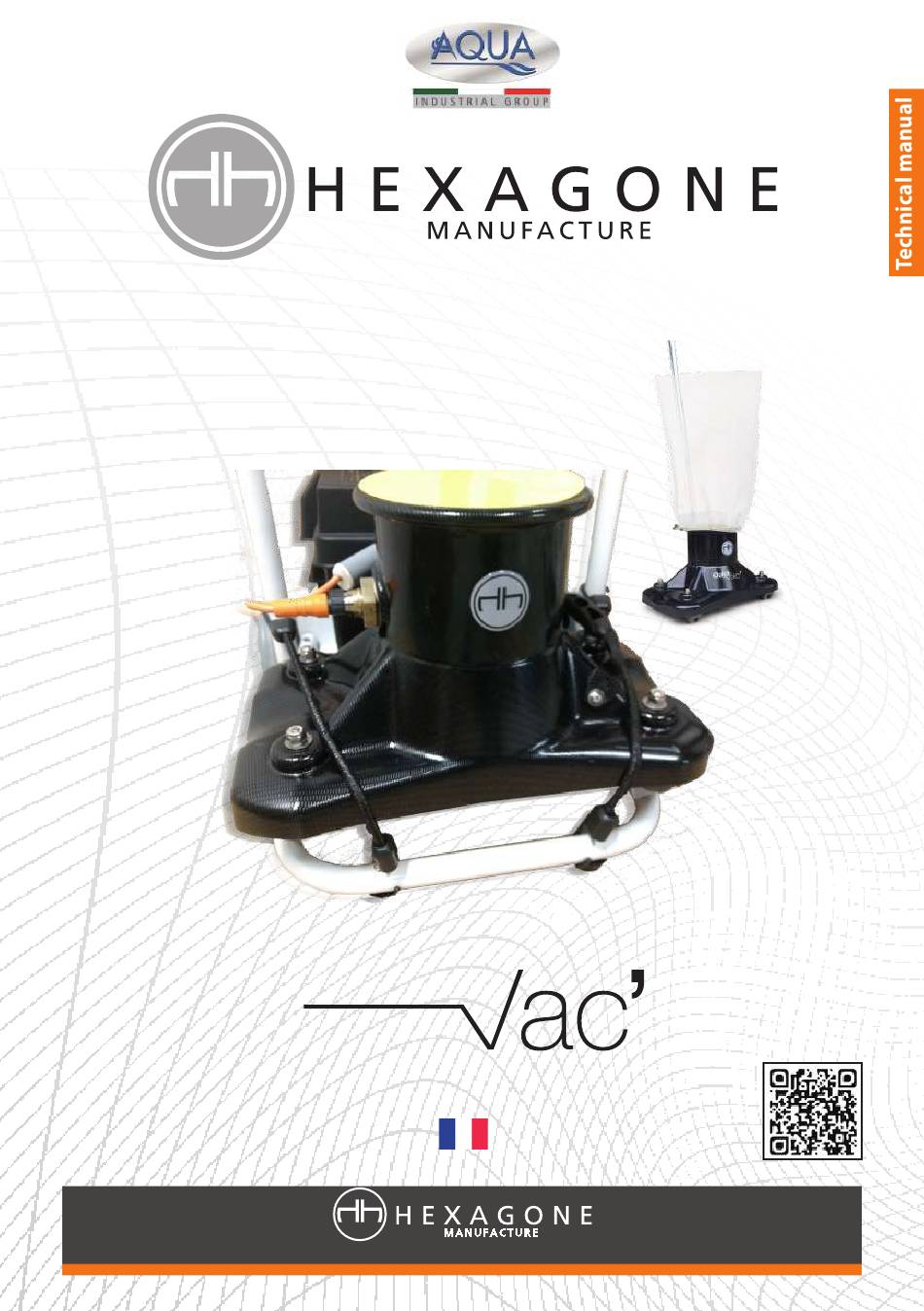

- Page 1 Quick Classic Version UDXYQVCN001-EN www.myhexagone.com • info@myhexagone.com • Tél. +33 1 34 34 11 55...
-
Page 2: Table Of Contents
A.The vacuum cleaner B. The trolley and its mounting Conditions Générales de Vente Hexagone Manufacture S.A.S. With this product you accept in a tacit and irrevocable manner our general conditions of sale. Photos in this technical manual are non-contractual. www.myhexagone.com • info@myhexagone.com • Tél. +33 1 34 34 11 55... -
Page 3: Introduction
1. Introduction In order to ensure your safety and the validity of your guarantee, please read carefully and follow to the letter these instructions. The manual vacuum cleaner QUICK VAC is the professional device that must be used only by the qualified pool technicians. The manual vacuum cleaner QUICK VAC is desiged for regular maintenance of your pool. -
Page 4: Safety Rules
2. Safety rules Your safety: Your vacuum cleaner QUICK VAC has been manufactured in accordance with the highest standards. To use your equipment safely, observe the following: • Keep the power supply unit far from the pool so as to prevent any falls. •... -
Page 5: How To Install Your Pool Vacuum Cleaner Quick Vac
3. How to install your pool vacuum cleaner Quick Vac? A. Unpacking Unpack the unit by taking the necessary precautions. Do not use sharp tools (cutter, knife ...) Check all items for damage from delivery. If damage is caused from the delivery please make a note on the delivery slip. -
Page 6: Installing The Battery Or The Electric Box
3. How to install your pool vacuum cleaner Quick Vac? A. Installing the battery or the electrical box We remind you that the supply of the battery is to be at your expense or has been agreed upon the purchase of your device. Install the lugs on the battery terminals. -
Page 7: How To Use Your Pool Vacuum Cleaner Quick Vac
4. How to use your pool vacuum cleaner Quick Vac? A. Pool entry • The trolley and the power box should be placed so that the robot can reach all corners of the pool; • Be sure to unroll the entire self-floating cable at the edge of the pool, avoiding loops, before entering the unit into the water. -
Page 8: Pool Exit
4. How to use your pool vacuum cleaner Quick Vac? A. Pool exit Once the pool is clean at your convenience please follow the following steps: • Bring the vacuum cleaner back to you by pulling the telescopic handle; • Unplug the plug and wait a few moments for the check valve closes and the collected dirt remains trapped. -
Page 9: Cleaning And Maintenance
5. Cleaning and maintenance A - Cleaning of filter IMPORTANT! The filter bag must be cleaned after each use. • Remove the filter from the Quick Vac. • Put the bag upside down to empty theany largest debris • Wash the filter under a tap or use a hose to spray. •... -
Page 10: Charging The Battery
5. Cleaning and maintenance To ensure the efficiency of your QUICK VAC, it is important to check the below every week: • The state of the turbine, check there is no debries in the propeller, you can remove turbine by unscrewing its locating block. Be careful not to lose the turbine pin. -
Page 11: Usage Tips
6. Usage tips CAUTION! • Use your vacuum as often as possible: you will enjoy a pool which is always clean and there will be less debris in your filter each time. • Never put the cleaner in water with a temperature below 10 °C or above 35 °... -
Page 12: Your Warranty
7. Your warranty These conditions correspond to the French laws in force at the date of printing. A - Conditions We guarantee that all materials are technically sound and free of defects of materials and manufacture and that they are consistent with the state of the art and techniques at the time of marketing. -
Page 13: Duration Of The Guarantee
7. Your warranty B - Duration of the guarantee The duration of the guarantee is fixed at 1 year from the billing date to the first user or 3 months + 1 year after delivery to the distributor subject to sending to the manufacturer of the invoice for the purchase of the device or 'a photocopy. -
Page 14: Special Conditions
7. Your warranty F - Special conditions We remind you that the guarantee is subject to certain conditions. • It is your responsibility to keep unauthorized persons away from the vacuum cleaner, cable, trolley and power supply unit. • No guarantee can be given in case of operation of the equipment in rain more or less important without the sensitive parts (power supply box, socket ..) are sheltered (under a tarpaulin allowing ventilation of the case or other suitable means of protection). -
Page 15: Spare Parts And Technical Data
8. Spare parts and technical data 6 – Exploded view and spare parts list QUICK VAC www.myhexagone.com UDXYQVCN000-EN Tél.+33 1 34 34 11 55 www.myhexagone.com • info@myhexagone.com • Tél. +33 1 34 34 11 55... -
Page 16: The Trolley And Its Mounting
6. Spare parts and technical data TROLLEY www.myhexagone.com • info@myhexagone.com • Tél. +33 1 34 34 11 55... - Page 17 6. Spare parts and technical data TROLLEY MOUNTING www.myhexagone.com UDXYQVCN000-EN Tél.+33 1 34 34 11 55 www.myhexagone.com • info@myhexagone.com • Tél. +33 1 34 34 11 55...
- Page 18 Hexagone Manufacture S.A.S. by the Customer, regardless of the time when it may have been brought to its knowledge. The fact that Hexagone Manufacture S.A.S. does not avail itself at any given moment of any one of these GCS may not be interpreted as a waiver of the right to avail itself of this at a later date.
-
Page 19: Conditions Générales De Vente Hexagone Manufacture S.a
(15) days following the delivery date. No goods may be returned without our express agreement and goods may only be returned if fit for resale. The Customer shall allow Hexagone Manufacture S.A.S. to verify any defects to allow for these to be remedied. - Page 20 The Customer may in no case resell, pledge or grant a guarantee on the good delivered and not fully paid for. Payment default on any deadlines may lead to goods being reclaimed. Where reclaims are made, deposits already paid shall be retained by Hexagone Manufacture S.A.S.
- Page 21 Hexagone Manufacture S.A.S. may assert to the Customer, within 48 hours after a formal notice which goes unanswered. In this case, Hexagone Manufacture S.A.S. is within its rights to seek a fixed rate of compensation of 15% of the total sale price from the Customer, as well as default interests and any legal fees incurred.
