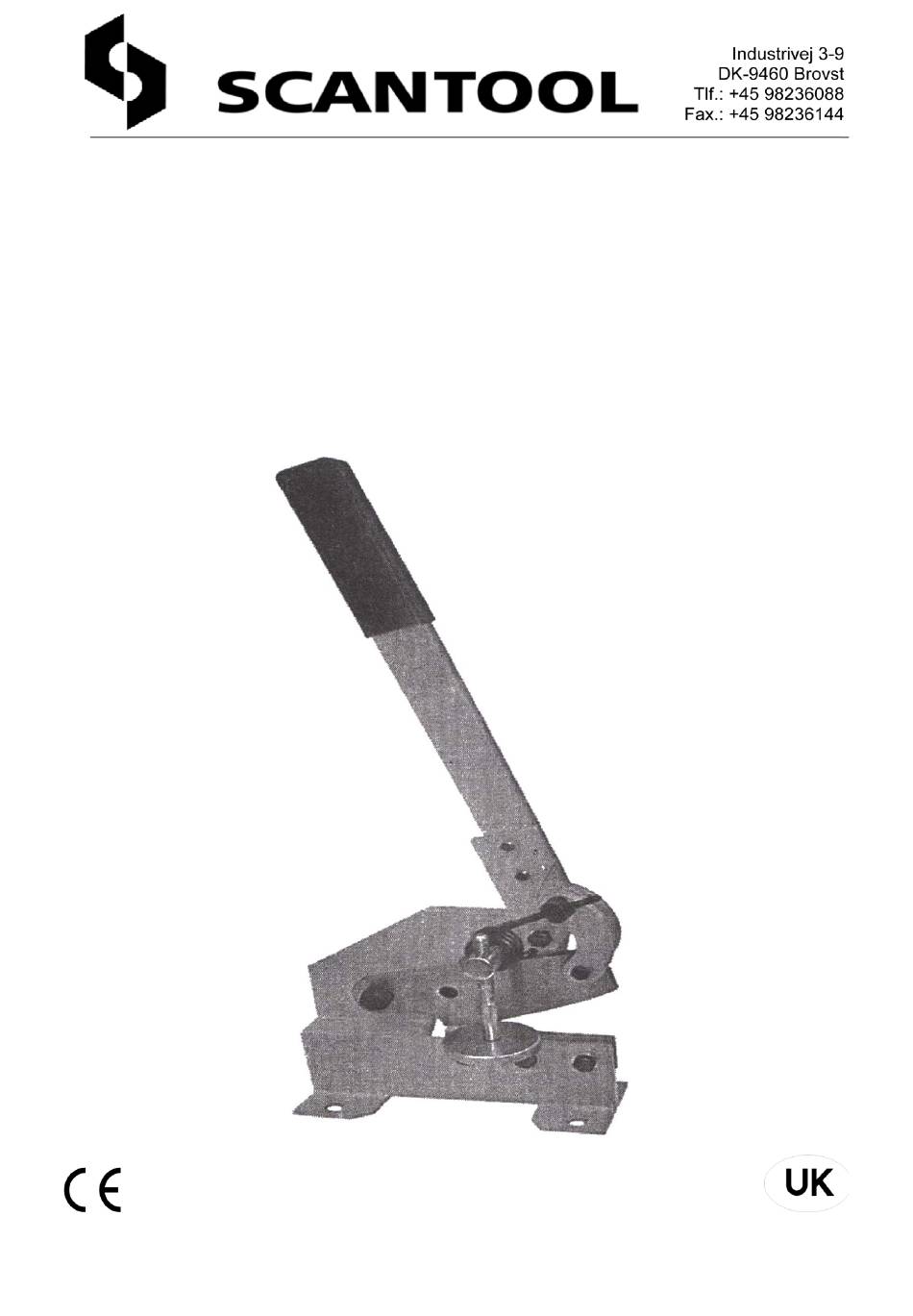

- Page 1 Manual SCANTOOL PFS1 HAND SHEARER OPERATION MANUAL...
- Page 2 Fax.: +45 98 23 61 44 SCANTOOL PFS 1 HAND SHEARER are manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) – The Machinery Directive (order no. 561 of 25 June 1994 with subsequent amendments)
- Page 3 Please read this manual carefully before install and operation. 1. Usage This machine is suitable for shearing carbon steel plate and bar. It can be used to shear non-ferrous metal or plastic and bar. 2. Main technical specification 3. Installation and caution 3.1 Installation 3.1.1 Please check whether the part of this machine are fully equipped and not damaged to the parts list or part figure.
- Page 4 4. Operation and maintenance This machine is pre-adjusted before out of factory. When you want to shear, please raise handle (9#), the upper blade (4#) will put up, insert the workpiece, then lower the handle (9#) to shear. Before you shearing, you can adjust disc (12#) to press the workpiece. 5.
