WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this
product.
This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effective
in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit's nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
Do not install the unit where objects or pieces of furniture could be damaged by heat.
Respect distances and positions indicated in the installation section.
If the installer or user modifies the unit, they will be held responsible for any damage resulting from this modification, and the UL certification could be void.
This unit must not come into contact with a water source and must be protected from splashes (e.g. a wet mop). Do not use it if any part has been immersed.
When cutting or drilling into a wall, do not damage electrical wiring and other hidden utilities.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it.
For further information or to consult this guide online, please visit our website at www.stelpro.com
INSTALLER'S GUIDE

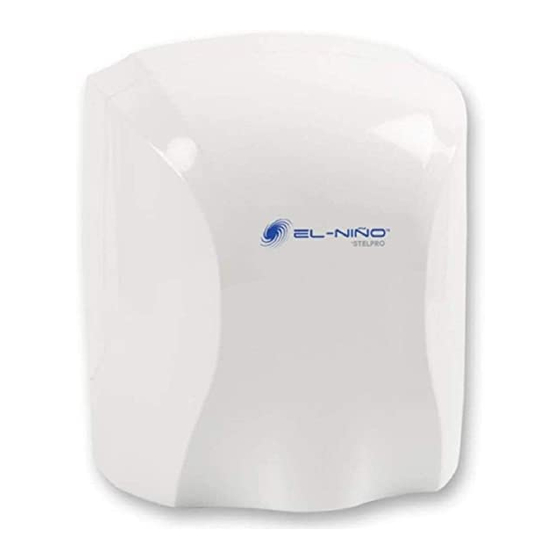

EL-NIÑO
HAND DRYER
Replacement Component List INCLUDED
This unit
complies with
UL standards
INSELN0418
Advertisement
Table of Contents
Related Manuals for Stelpro EL-NINO
Summary of Contents for Stelpro EL-NINO
- Page 1 Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it. For further information or to consult this guide online, please visit our website at www.stelpro.com INSELN0418...
- Page 2 WARNING Never block air vents. This obstruction could lead to overheating, which could result in a fire. Do not insert or allow foreign objects to enter any air vent as this may cause electric shocks, a fire, or damages to the unit. This unit has hot and arcing or sparking parts inside.
- Page 3 ELECTRICITY: TURN OFF THE POWER BEFORE CONNECTING THE UNIT Check if the power supply corresponds to that indicated on the nameplate. Connect the dryer to a bypass circuit according to electrical and building codes in your area. Connect the power cable to the terminals of the hand dryers, as shown in the wiring diagram inside the cover of the dryer. Do not forget to connect the ground wire to the ground cover on the terminal available at the motor base.
- Page 4 STUD REINFORCEMENT FIG. 3 FIG. 4 FIG. 5 After reinforcing the side of the installation hole (for drywall), remove the surface sleeve and insert the wall plate assembly in order to mark the mounting holes. Then secure the unit to the wall supports (joist and building block). Replace cover, do not forget to connect the ground wire. SURFACE INSTALLATION 7"...
- Page 5 CONTROLS Your EL-NIÑO hand dryer is equipped with electronic controls to customize the unit to meet your needs. FOUR OPERATIONAL MODES - DESCRIPTION AND SYMBOLS ULTIMATE – High air speed and full heating power for quick drying COMFORT – Reduced air speed and moderate heating power for a comfortable noise level and heat range ECONOMICAL –...
- Page 6 OPERATION The hand dryer will start automatically once hands are placed 4 inches (10cm) below the opening of the air output. The unit will shut off once the hands are no longer below the opening. MAXIMUM DURATION OF OPERATION As long as the sensor detects the presence of the hands, the unit will function continuously for 60 seconds. After this delay, the user must withdraw his hands and put them back under in order for the unit to start up again The hand dryer will stop 1 second after no hand movement is detected MAINTENANCE...
- Page 7 REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION ELN-002W COVER (MOUNTING BRACKETS INCLUDED) WHITE ELN-002BC COVER (MOUNTING BRACKETS INCLUDED) BRUSHED CHROME ELN-004W SURFACE ADAPTER WHITE ELN-004BC SURFACE ADAPTER BRUSHED CHROME MO-79 120V 50/60HZ 130CFM MO-80 208V 50/60HZ 130CFM MO-81 240V 50/60HZ 130CFM ELF-ELN0901 HEATING ELEMENT ASSEMBLY 120 V/900 W CIR-033...
- Page 8 Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out by persons authorized by Stelpro.
