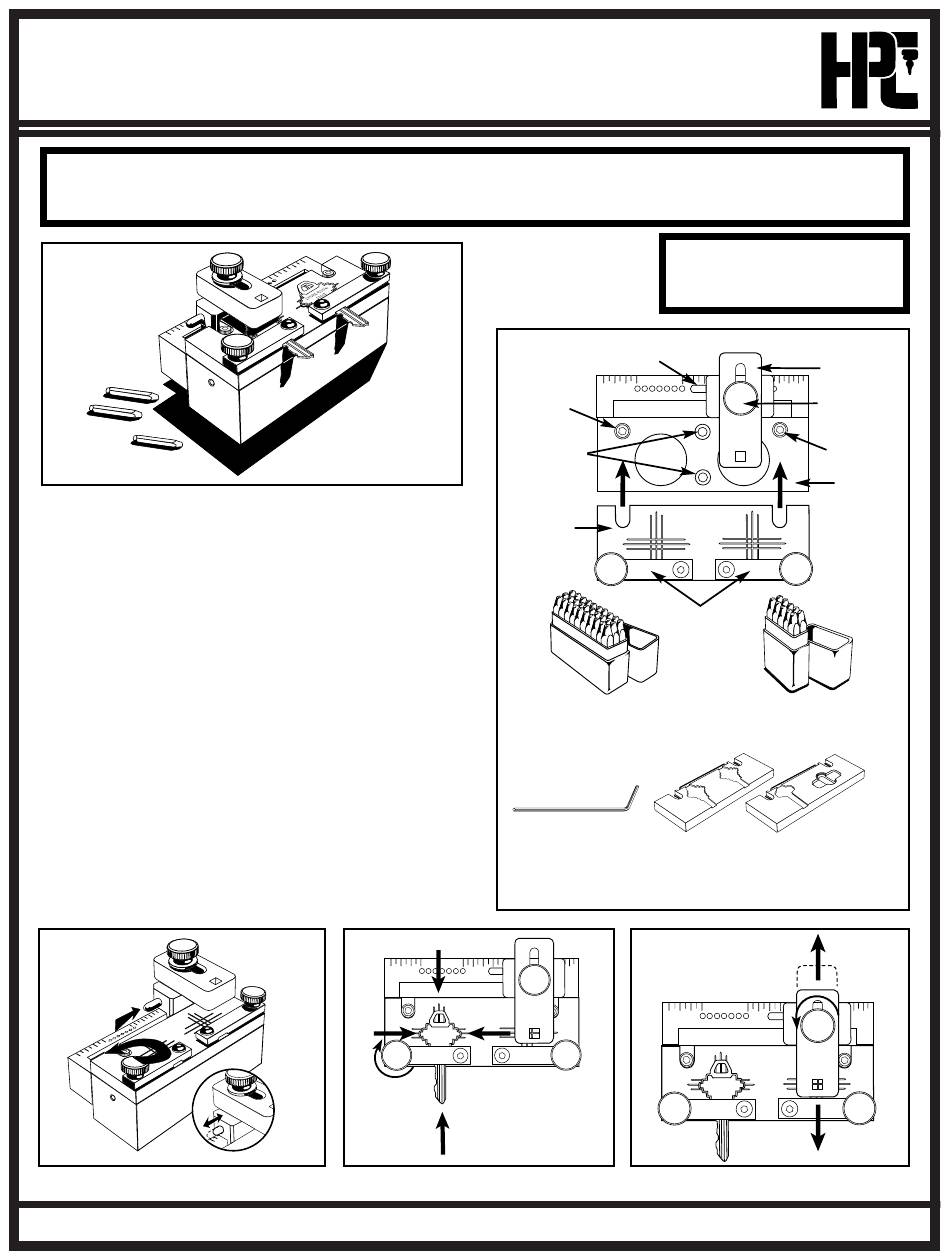

HPC Stamp Aligner XL Instructions

Instructions
HPC's Stamp Aligner ™ XL solves the problems that locksmiths
have while stamping keys and cylinders. It has one
(6.35mm) hole to hold standard
number and letter die stamps. Characters can be stamped on
keys and cylinders in an exact straight line with exact spacing
between figures. When the die stamps are all struck with the
same force, the end product looks like it was factory stamped.
HPC's new Stamp Aligner ™
makes stamping safer and easier. Plus, it can use the die
stamps that many locksmiths already have.
1. Depress the index block release pin and move the index
block to the load/unload position. Loosen the clamp plate
knob by turning it counterclockwise. See Fig. 1.
2. Position your key under the clamp plate and secure it by
tightening the knob clockwise. See Fig. 2.
3. Adjust the index block to desired row for stamping and
secure it with the locking knob. See Fig. 3.
012204 35T00-285-00
© 2004 • HPC, Inc. • Schiller Park, IL • 60176 • USA • www.hpcworld.com
Stamp Aligner
1 / "
4
3 ⁄ " (2.5mm) and 1 ⁄ " (3.0mm)
32 8
XL holds 2 keys or cylinders, and
Fig. 1
™ XL
INDEX BLOCK
RELEASE PIN
LOCKING
BOLT
BENCH
MOUNTING
HOLES
UNIVERSAL
STAMPING
PLATE
CLAMP
PLATES
LETTER STAMP DIE SET
HPC No. HCL-1⁄8 or HCL-3⁄32
(available separately)
3/16 - INCH
HEX WRENCH
SCHLAGE OR BEST I. C. PLATES
SCHLAGE
BEST I.C.
Fig. 2
No. SA-7XL
INDEX
BLOCK
LOCKING
KNOB
LOCKING
BOLT
BASE
FIGURE STAMP DIE SET
HPC No. HCF-1⁄8 or HCF-3⁄32
(available separately)
(available separately)
NO. SA-PLT-SCH
NO. SA-PLT-ICB
Fig. 3
(continued)
