www.iaobosi.com

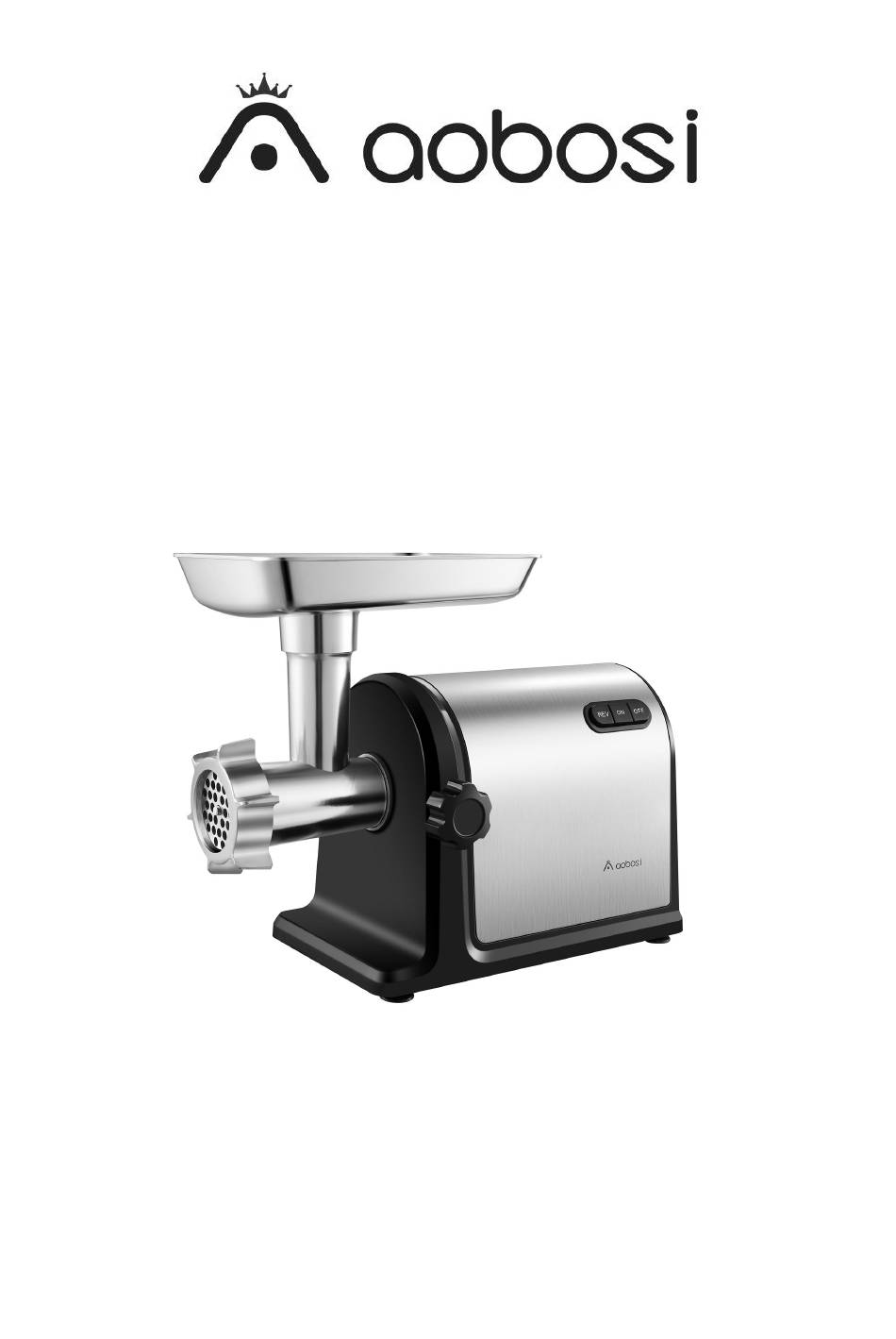

MEAT GRINDER
MG420
INSTRUCTION MANUAL
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG420 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aobosi MG420

  • Page 1 MEAT GRINDER MG420 INSTRUCTION MANUAL PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
  • Page 2: Table Of Contents

    Content Description.................3 Important Safeguards..............4 Instruction For Use..............4 For the first time.............4 Installing.................5 Mincing meat..............5 Reverse function............6 Making Kubbe................6 Making Sausage................7 Cleaning And Maintenance............7 Specification................8 Troubleshooting................8 Warranty..................9...
  • Page 3: Description

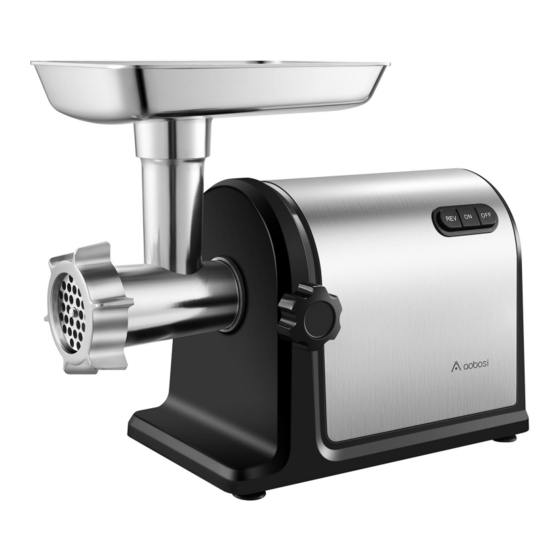

    Please read carefully and keep the instruction well DESCRIPTION 1.Food tray 11.Sausage stuffing tube(medium) 2.Body 12.Sausage stuffing tube(thick) 3.OFF button 13.Food pusher 4.ON button 14.Grinder head 5.REVERSE button 15.Auger 6.Fasten knob 16.Grinding plate(fine) 7.Kubbe/kibbeh attachment 17.Grinding plate(medium) 8.Head inlet 18.CAP 9.Sausage stuffing adapter 19.Grinding plate(coarse) 10.Sausage stuffing tube(thin)
  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS  It is for household use;  Unplug when assembling and disassembling the unit.  Close supervision is necessary when any appliance is used near children.  When carrying the unit be sure to hold the body with both hands. Do not carry the unit by the food tray or head.
  • Page 5: Installing

    Installing  hold the grinder head and insert it into the inlet, (see fig.1), then fix the grinder head by using fasten knob. Turn the knob clockwise so that the head being fastened tightly. (fig.2)  Insert the auger into the grinder head, long end first (fig.3).
  • Page 6: Reverse Function

    Reverse function  If blockade is happened, directly press“REV” button for 3-6 seconds.  After unblocking, release“REV” button,and unplug it, then clean food out from head of appliance. MAKING KUBBE STUFFING Mutton 100g / 0.22lb Olive oil 1 tablespoons Onion (cut finely) 1 tablespoons Spices to your taste...
  • Page 7: Making Sausage

    MAKING SAUSAGE Before starting, please assemble sausage adapter and tube as per following (fig.11) CLEANING AND MAINTENACE DISADDEMBLING  Make sure that the motor has stopped completely.  Disconnect the plug from the power outlet.  Disassemble by reversing the steps from 1-6 pictures. ...
  • Page 8: Specification

    SPECIFICATION Power supply 120V/60Hz,~800W Max. Locked motor approx. wattage 2000W Net weight 5.8Kg/12.8Lb Gross weight 6.25Kg/13.8Lb 410mm×210mm×330mm Overall dimension(L×D×H) (16.14 x 8.27 x 12.99 inch) TROUBLESHOOTING PROBLEM SOLUTION The Grinder Head becomes stuck during 1. the quantity of ingredients pushed down the grinding process “Grinder Head”...
  • Page 9: Warranty

    The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All Aobosi warranties are automatically kept track of in our system, so there is no need to register your product.
