MANUAL FOR OPERATION AND MAINTANACE
OF THE MOTOR UNITS PRIME

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIME Series and is the answer not in the manual?

Questions and answers

Related Manuals for Alukov PRIME Series

Summary of Contents for Alukov PRIME Series

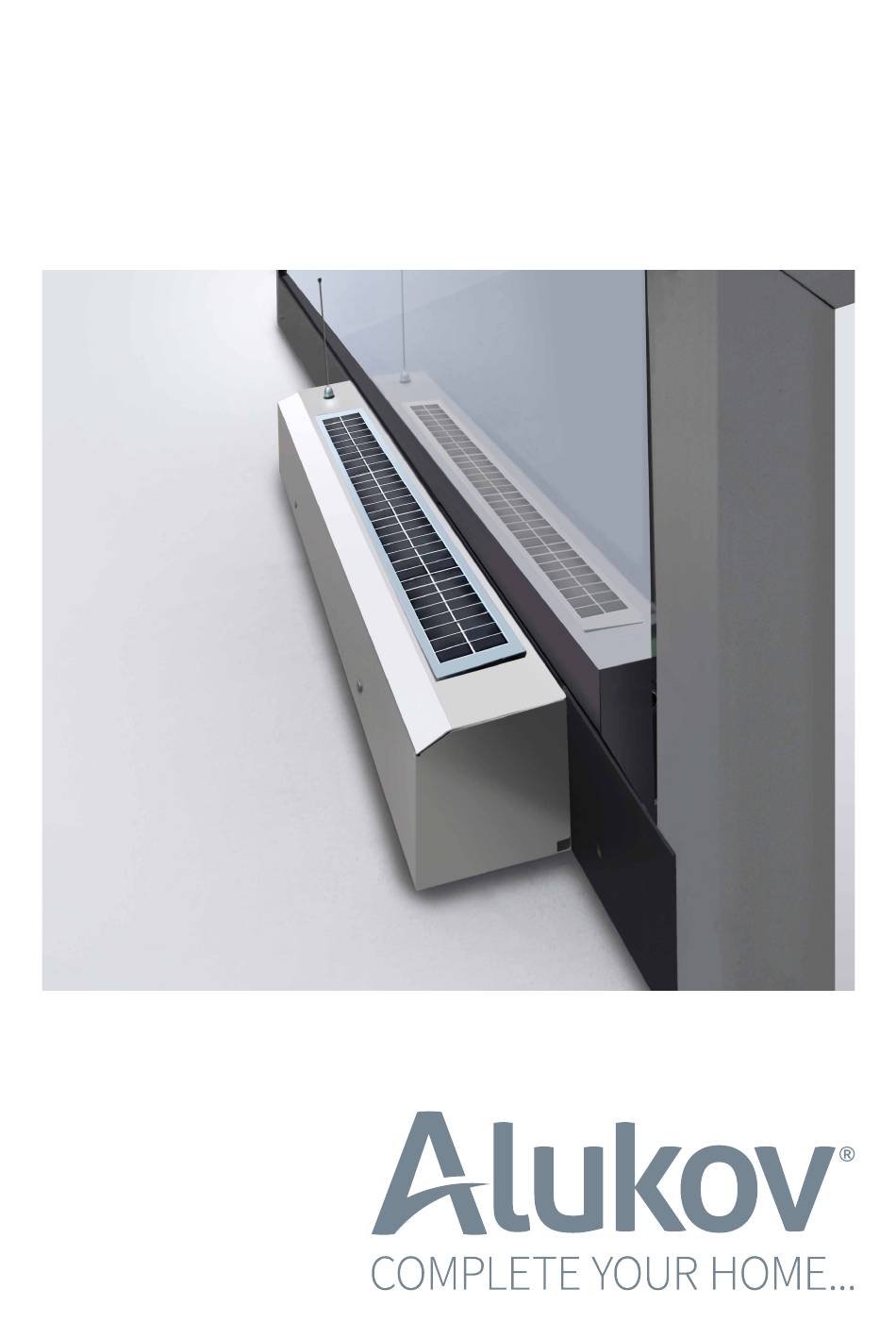

  • Page 1 MANUAL FOR OPERATION AND MAINTANACE OF THE MOTOR UNITS PRIME...
  • Page 2 Following these steps will ensure a smooth operation of the motorized sliding of TERRA PRIME, TERRA R PRIME and VIVA PRIME. Content of motor set: 2 - 4 motor units ( 350 - 600 N, 12 V DC) 2 solar panels (18V, 8W) 2 ks Electronic cards (main, secondary) 2 ks Electric arresments 2 ks Remote control (black, white)
  • Page 3 Photo n. 1 Photo n. 2 Photo n. 3 Use a flat screwdriver with a minimum length of 11 cm. Insert the screwdriver horizontally into the hole. Slowly push it in until you encounter a arrestment. Rest the screwdriver on the bottom edge of the hole and by pushing the handle down, lift up the arrestment (see photo no. 4, 5 and 6). Photo n.
  • Page 4 Photo n. 6 You can visual check to verify that the latch has been lifted (see photo 7 and 8). Repeat this procedure on the other engine. After unlocking both motors Enclosure can be moved manually. The latch can be lock by reversing the process. With the screwdriver, lean against the top edge of the hole and lift the handle up locking the latch down.
  • Page 5 Photo n. 10 If the remote´s range is reduced over time, the batteries are weak in the remote. Replace the batteries. On the white remote, slide the battery cover downwards on the back and replace the battery with a new 9 V battery (see photo 11, 12). Photo n.
  • Page 6 On the small black remote, unscrew the three screws on the back. Turn the remote upside down and remove the top cover with the buttons. Replace the battery - A27 ALKALINE 12 Battery V - fold the handle and screw in (see photo 13, 14). Photo n.
  • Page 7 ALUKOV a.s. Orel 18, Slatiňany 538 21, Czech Republic Tel.: +420 469 681 488 Fax: +420 469 681 321 E-mail: info@alukov.cz www.alukov.cz © Alukov 01 - 2019 The manufacturer reserves the right to make technical changes in it’s products.
